| Categories | Self Locking Washer |
|---|---|
| Brand Name: | Huihao |
| Model Number: | Insulation Fixing Disks |
| Place of Origin: | China |
| MOQ: | 100000pcs |
| Payment Terms: | L/C, T/T, Western Union, PayPal |
| Supply Ability: | 2000000 pcs per 20 days |
| Delivery Time: | 20 days after the payment |
| Packaging Details: | 1000pcs per bag, 10 bags per carton |
| Certification: | iso9001-2008 |
| Material: | galvanized steel or stainless steel etc. |
| Diameter: | 35mm |
| Thickness: | 0.7mm |
| Center Hole: | 5mm |
| Package: | 1000pcs per bag, 10 bags per carton |
| Usage: | to fix marmox and wedi type insulation boards to walls and floors |
| Company Info. |
| Huihao Hardware Mesh Product Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
>>> Specification Of The Tile Backer Marmox, Wedi Board Metal Fixing Discs
Metal insulation washers for fixing our tile backer board down to a wooden sub-floor.
Tile backer board insulation fixing discs have been specially designed to provide an easy secure way to fix marmox and
wedi type insulation boards to walls and floors.
>>> The Advantages Of The Metal Insulation Fixing Disks
The discs are easy to fix and have been specially designed for use with our tile backer boards in three specific ways.
1: The discs have a counter sunk mid-section to allow the screw head to pull into the board but the outer rim of the disc to
remain flush with the board surface. This is to maintain the flat board surface ready for easy unhindered application of the
subsequent layers.
2: The discs have a perforated surface to maintain maximum board surface exposure as standard adhesives and plasters
are not designed to be fixed to flat plastic or metal surfaces. By perforating the fixing disk this allows the adhesive or plaster
to adhere to the board surface minimizing the risk of surface De-lamination or damage.
3: The discs are galvanized to protect them from corrosion and minimize any chance of degradation over time.

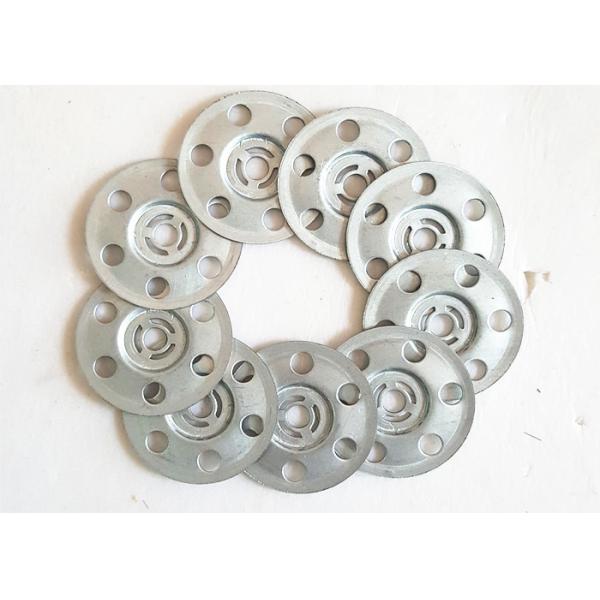

>>> Detailed Image Of The Metal Insulation Fixing Washers
Technical Information of insulation fixing disc
When using these discs to fix tile backer boards to walls and floors it is recommended to use 15 discs per 1200 x 600mm
board. This is a guide only and depending upon the type, thickness, sub surface and what is to be put onto the board, it is
the installers responsibility to use the correct number of discs to hold the board in place.
>>> Related Products
Item: Metal Insulation Fixings
| Pin size | Pin diameter | Pin length | Plate size | Plate thickness | Packaging (carton) |
| 8*50 | 8mm | 50mm | 30/35mm | 0.7mm | 250pcs |
| 8*60 | 8mm | 60mm | 30/35mm | 0.7mm | 250pcs |
| 8*90 | 8mm | 90mm | 30/35mm | 0.7mm | 250pcs |
| 8*110 | 8mm | 110mm | 30/35mm | 0.7mm | 250pcs |
| 8*140 | 8mm | 140mm | 30/35mm | 0.7mm | 250pcs |
| 8*170 | 8mm | 170mm | 30/35mm | 0.7mm | 250pcs |
| 8*230 | 8mm | 230mm | 30/35mm | 0.7mm | 250pcs |
| 8*300 | 8mm | 300mm | 30/35mm | 0.7mm | 250pcs |
|
