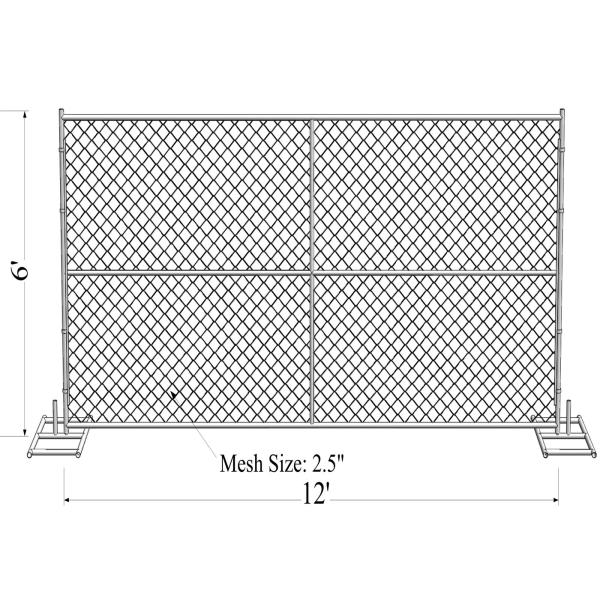

6'X12' chain link fence panels 1⅜"(35mm) outer tube 1.2 oz/ft2/366 g/m2 hot dipped galvanized mesh aperture ) 2½"/63mm

6'X12' chain link fence panels 1⅜"(35mm) outer tube 1.2 oz/ft2/366 g/m2 hot dipped galvanized mesh aperture ) 2½"/63mm

6'X12' chain link fence panels 1⅜(35mm) outer tube 1.2 oz/ft2/366 g/m2 hot dipped galvanized mesh aperture ) 2½/63mm
6'X12' chain link fence panels 1⅜"(35mm) outer tube 1.2 oz/ft2/366 g/m2 hot dipped galvanized mesh aperture ) 2½"/63mm
Categories Chain Link Fence Panels
Brand Name: LNF-Chain link Fence Panels
Model Number: 4'6'8' Height
Certification: ASTM
Place of Origin: American Design China Made
MOQ: 1700 liner ft
Price: 4.00$/liner ft
Payment Terms: TT30% deposit balance 70% at sight of finished products
Supply Ability: 10000 liner ft
Delivery Time: 7 work days
Packaging Details: All metal Pallets
Materials: Q235 Steel Pipes and Wire
Mesh Opening: 2”x2/”(50mm x 50mm) 2¼”x2¼”(57mmx57mm) 2⅜x2⅜(60mmx60mm) 2½”x2½” (63mmx63mm)
Diameter: 10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m
Type: Chain mesh
Tubing: 1¼”(32mm) 1⅜”(35mm) 1½”(38mm) 1⅗”(40mm) 1⅝”(42mm) 1⅞”(48mm)and so on
Warranty: 5-15 years depand on treatment
Customized: Available
Size: 6ftx10ft ,6ftx8ft,6.5ft x 9ft etc
Accessoires: Top Couper
Contact Now
Company Info.
Top Fencing Co.Limited
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

6'X12' chain link fence panels 1⅜"(35mm) outer tube 1.2 oz/ft2/366 g/m2 hot dipped galvanized mesh aperture ) 2½"/63mm

6'X12' temporary chain link fence panels 1⅜"(35mm) outer tube 1.2 oz/ft2/366 g/m2 hot dipped galvanized mesh aperture ) 2½"/63mm


Construction Chain Link Fence Panels Tube Optional
  • 1¼"(32mm)
  • 1⅜"(35mm)
  • 1½"(38mm)
  • 1⅗"(40mm)
  • 1⅝"(42mm)
  • 1⅞"(48mm)
Galvanized Diamond Mesh Wire Chain Link Fence is also known as diamond fence, it is woven with high quality mild steel wire. It has the features of woven simple, beauty and practical. It's finish treatment is galvanized and plastic coated with long- time use and corrosion protection. They are widely used as protective fence in residential sites,roads and sports fields.
Advantages:
1) Low carbon steel diamond mesh has a heavy galvanized coating to ensure a long life
2) Use for High security building: Airport ,Farm land,Sport field,Prison and so on
3) It can offset force,so it is widly use for sports field
4) Chain link wire mesh is separable,you can adjust the length as you need
5) The height can be up to 7m
6) It is more security to add some razor barbed wire or barbed wire on the top
7) beautiful diamond mesh:different colors for choose
8) easy to install .
Applications:
Temporary Chain link fence always used in playground,side way,zoo,Factory,River Bank,Garden,protection,Road Bridge,
Equipment Protection,etc
Product Name
Galvanized PVC Coated Diamond Mesh Wire Chain Link Fence
Material
galvanized iron wire,stainless steel wire,pvc-coated iron wire
Surface Treatment
Electro Galvanized wire,Hot-dipped Galvanized Wire,PVC
Color
pvc-coated iron wire:green,black,red,dark brown,gray,beige
Wire Diameter
18#-7#(1.2mm-4.5mm)
Opening Size
conventional:1-4"(25mm-100mm)
Width
conventional:0.5m-5.0m
Length
conventional:5m-25m
Chain Link Mesh
Mesh
Wire Diameter
Frame tube
Frame thickness
50*50 mm
1.8 - 3.5 mm
32mm
1.0mm
60*60 mm
1.8 - 4.0 mm
38mm
1.2mm
75*75mm
2.5 - 4.0 mm
42mm
1.4mm
80*80mm
2.5 - 4.5 mm
48mm
1.5mm
100*100mm
3.0 - 4.5 mm
60mm
2.0mm
CHAIN LINK FENCE PANELS FOR CONSTRUCTION
Tubing
1¼"(32mm) 1⅜"(35mm) 1½"(38mm) 1⅗"(40mm) 1⅝"(42mm) 1⅞"(48mm)and so on
Thickness of Tubing
14ga/2.00mm 14.5ga/1.90mm 15ga/1.80mm 15.5ga/1.70mm 16ga /1.6mm 16.5ga/1.50mm 17ga1.42mm 18ga 1.22mm
Chain mesh aperture
2"x2"/(50mm x 50mm) 2¼"x2¼"(57mmx57mm) 2⅜"x2⅜"(60mmx60mm) 2½"x2½"(63mmx63mm)
Height
4ft/1220mm 6ft/1820mm 8ft/2420mm
Width
12ft /3650mm was wide acceptance by market also 8ft 9ft 10ft 14ft
Panels Size
6ft x 12ft ,8ft x 12ft, 4ft x 12ft and so on
Diameter /Gauge
10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m
Base Optional 1
36" length x 30" width x 8"Height /914mmx762mmx203mm
Base Optional 2
36" length x 16" width x 8" Height /914mmx406mmx203mm
Base Optional 3
30" length x 18" width x 8" Height /762mm x460mm x203mm
Standard
ASTM A392-06
Steel
Galvanized Steel Construction
Finish
Corrosion-Resistant Zinc Coating
Transport Packing
Metal pallet Wrapped with Plastic
HDG zinc thickness
14 microns 100gram/SQM 28 microns 200 gram/SQM 42 microns 300 gram/SQM and 84 microns 600 gram/SQM
CHAIN LINK FENCE BASE BASE
Length
620MM
Width
230MM
Height
90MM
Empty Weight options
0.90kg /1.0kg/1.2kg/1.4kg/2.00kg
Color
Packing
Metal pallet wrapped with plastic film
Feature
parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on
Materials
HDPE
Photos
Temporary fence description
-- No bolting- No Drilling.
-- Self-supporting counter weight base.
-- Three basic components: fence panel, base and clip.
-- Several types of fence panel and base are available.
Features:
temporary fence can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.

Surface treatment: Hot-dipped galvanized after welded.

Application
1.to prevent materials, rubbish from escaping from worksite
2.to secure your construction site and equipment from theft
3.to prevent operation from impacting outside
Temp fence specification Any specification can be customized.

Material: hot galvanized steel
Height: 1000-3000mm
Width: 2000-3000mm
Frame size: OD 32-40mm
Wire diameter: 3.0-5.0mm
Mesh size: 50*150/65*150/50*200mm
Base feet: plastic or steel feet
Surface treatment: hot dipped or powder coated
Packing & loading
1.metal pallet :Loading and unloading the container with Forklift easily.
2.plastic film :there is a plastic fim between fence panel to prevent friction.
3.packing strips :fixing the fence panel and pallet.
