| Categories | PVC Layflat Hose |
|---|---|
| Brand Name: | ET |
| Model Number: | 1''-16'' |
| Certification: | ISO9001:2008;SGS |
| Place of Origin: | Shandong, China (Mainland) |
| MOQ: | 1000m |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4000tons / per year |
| Delivery Time: | 10-15 work days |
| Packaging Details: | woven plastic cloth wrapped, covered by paper card |
| name: | PVC water discharge hose |
| inner diameter: | 25-408mm |
| application: | irrigation, mining, construction etc. |
| Standard: | ISO |
| feature: | Stretching resistant, larger water discharge |
| temperature: | -5℃~65℃ |

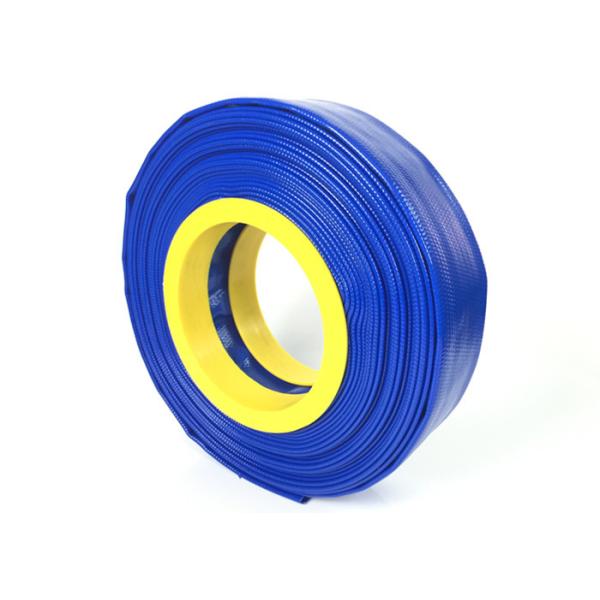

high performance pvc / pu layflat pump water discharge hose / pipe
| size | 1-16inch |
| Color | Blue / Orange / Yellow / Red / Green or customized |
| Length: | 10m/30m/50m/100m Or Customized |
| W.P | 2bar,3bar,4bar,5bar,6bar,7bar,8bar,10bar |
| B.P | 6bar-30bar |
| thickness | 1.2mm-3.2mm |
Light duty lay flat PVC hose (2-4 bar)
1. Water supply & draining for factory, farm irrigation, gardens, park. Working pressure is 2-4 bar.
2. Guarantee high quality new PVC particle material, no recycled material in our hoses.
3. One-time producing process by advanced extruded machine, thinner, lighter.
4. Acid-proof, alkali-proof, anti-UV, long service time.
5. Environmentally friendly, apply to REACH standard.
Medium duty lay flat PVC hose (6 bar)
1. Water supply & draining for factory, farm irrigation, gardens, park. Working pressure is 6 bar. Can continuous work for long time.
2. Excellent wear-resisting, acid-proof, alkali-proof, anti-UV, long service time.
3. Guarantee high quality new PVC particle material, no recycled material in our hoses.
4. One-time producing process by advanced extruded machine, thinner, lighter can resist medium pressure.
5. Environmentally friendly, apply to REACH standard.
Heavy duty lay flat PVC hose (8-10 bar)
1. Slurry discharge and high-duty water discharge in factory, construction site, shipbuilding factory and other large project.
2. Working pressure can be 8-10 bar, blast pressure can be 30bar. No accident during working time. Excellent wear-resisting, acid-proof, alkali-proof, anti-UV, long service time.
3. Guarantee high quality new PVC particle material, no recycled material in our hoses.
4. One-time producing process by advanced extruded machine, thinner, lighter can resist high pressure.
5. Environmentally friendly, apply to REACH standard.
Specification:
Standard Duty PVC Layflat Hose
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1 | 25 | 0.047 | 1.20 | 0.15 | 5 | 75 | 100 | 300 |
| 1-1/4 | 32 | 0.047 | 1.20 | 0.17 | 5 | 75 | 100 | 300 |
| 1-1/2 | 38 | 0.049 | 1.25 | 0.19 | 5 | 75 | 100 | 300 |
| 2 | 51 | 0.043 | 1.10 | 0.22 | 4 | 60 | 100 | 300 |
| 2-1/2 | 64 | 0.047 | 1.20 | 0.30 | 4 | 60 | 100 | 300 |
| 3 | 76 | 0.047 | 1.20 | 0.35 | 4 | 60 | 100 | 300 |
| 4 | 102 | 0.047 | 1.20 | 0.53 | 4 | 60 | 100 | 300 |
| 5 | 127 | 0.053 | 1.35 | 0.75 | 4 | 60 | 100 | 300 |
| 6 | 153 | 0.053 | 1.35 | 0.90 | 4 | 60 | 100 | 300 |
| 8 | 203 | 0.071 | 1.80 | 1.60 | 3 | 45 | 100 | 300 |
| 10 | 254 | 0.094 | 2.40 | 2.60 | 3 | 45 | 50 | 150 |
| 12 | 305 | 0.094 | 2.40 | 3.10 | 2 | 30 | 50 | 150 |
| 14 | 358 | 0.118 | 3.00 | 5.00 | 2 | 30 | 50 | 150 |
| 16 | 408 | 0.118 | 3.00 | 6.00 | 2 | 30 | 50 | 150 |
Medium Duty PVC Layflat Hose:
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1 | 25 | 0.051 | 1.30 | 0.16 | 8 | 120 | 100 | 300 |
| 1-1/4 | 32 | 0.051 | 1.30 | 0.19 | 7 | 100 | 100 | 300 |
| 1-1/2 | 38 | 0.051 | 1.3 | 0.21 | 7 | 100 | 100 | 300 |
| 2 | 51 | 0.053 | 1.35 | 0.30 | 6 | 90 | 100 | 300 |
| 2-1/2 | 64 | 0.057 | 1.45 | 0.40 | 6 | 90 | 100 | 300 |
| 3 | 76 | 0.057 | 1.45 | 0.50 | 6 | 90 | 100 | 300 |
| 4 | 102 | 0.071 | 1.80 | 0.80 | 6 | 90 | 100 | 300 |
| 5 | 127 | 0.075 | 1.90 | 1.08 | 6 | 90 | 100 | 300 |
| 6 | 153 | 0.094 | 2.40 | 1.60 | 6 | 90 | 100 | 300 |
| 8 | 203 | 0.103 | 2.60 | 2.20 | 5 | 75 | 50 | 150 |
Heavy Duty PVC Layflat Hose:
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1 | 25 | 0.060 | 1.50 | 0.19 | 10 | 150 | 100 | 300 |
| 1-1/4 | 32 | 0.060 | 1.50 | 0.21 | 10 | 150 | 100 | 300 |
| 1-1/2 | 38 | 0.071 | 1.7 | 0.29 | 10 | 150 | 100 | 300 |
| 2 | 51 | 0.061 | 1.55 | 0.35 | 8 | 120 | 100 | 300 |
| 2 | 51 | 0.069 | 1.75 | 0.40 | 10 | 150 | 100 | 300 |
| 2-1/2 | 64 | 0.079 | 2.00 | 0.60 | 10 | 150 | 100 | 300 |
| 3 | 76 | 0.079 | 2.00 | 0.66 | 8 | 120 | 100 | 300 |
| 3 | 76 | 0.095 | 2.40 | 0.80 | 10 | 150 | 100 | 300 |
| 4 | 102 | 0.083 | 2.10 | 0.92 | 8 | 120 | 100 | 300 |
| 4 | 102 | 0.095 | 2.40 | 1.00 | 10 | 150 | 100 | 300 |
| 5 | 127 | 0.075 | 1.90 | 1.08 | 10 | 150 | 100 | 300 |
| 6 | 153 | 0.118 | 3.00 | 2.00 | 8 | 120 | 100 | 300 |
| 8 | 203 | 0.126 | 3.20 | 2.80 | 6 | 90 | 50 | 300 |
|
