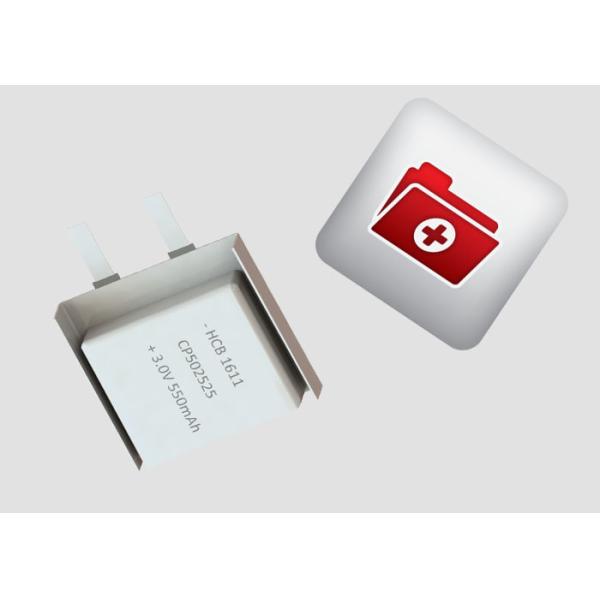

3V Li MnO2 550mAh 450Wh/kg Lithium Pouch Cell

High Energy Density 3V Li-MnO2 Soft Battery 550mAh 450Wh/kg With Manganese Dioxide

Nominal Capacity	550mAh
Battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage	3.0 V
Maximum Continuous Current	200mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current	400mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition	Temperature ≤ 30℃ Humidity ≤ 75%RH
Operating Temperature	-40℃ to +60℃
Battery Dimension	See drawing on pag
Max Weight	4.5g
Self-discharge Rate	2%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life	10 years
Ambient temperature 23±2℃

1. Battery Characteristic

• Nominal voltage up to 3.0 V
• High Energy Density

Energy density up to 450Wh/kg

• Wide Operating Temperature Range

-40°C to +70°C

• Long Shelf Life

Self discharge rate is less than 2% per year at room temperature
No passivation effect, instant install-and-use, maintenance free
Ultra thin

• Variable Design

Battery of variable dimensions can be selected to fit in the customer’s design
Custom batteries and battery packs are also available

• Greater Safety

The structure of the battery offers greater safety to meet customer’s requirement for special applications

2. Main Applications

• Security & alarms

Smoke detectors, security alarms, seismometers, locking system, monitoring system, etc.

• Medical devices

Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring devices, infusion pump, etc.

• Oil & gas

Well pressure meters in high temperature, float meter, logging while drilling (LWD), measure while drilling (MWD), etc.

3. Manufacturing Advantages

With every improvement that is made, HCB continues to pursue perfection. Technological development &

innovation are of great importance to HCB. We have been focusing on providing reliable products &

services to the customers worldwides for more than 22 years.

4. Company Advantages

• Lithium is the lightest of metals and it floats on water. It also has the greatest electrochemical potential which makes it one of the most reactive of metals. These properties give Lithium the potential to achieve very high energy and power densities permitting batteries with very long useful life and small cell packages.

  Because Lithium reacts violently with water, as well as nitrogen in air, this requires sealed cells. High-rate Llithium cells build up temperature and pressure if they are short circuited or abused. Thus, the cell design needs to include safety vents, which release the pressure or rupture to prevent uncontrolled explosion.

  Typical chemistries are Lithium Manganese dioxide, Llithium Sulphur dioxide, Lithium Thionyl Chloride and Lithium Oxygen but other variants are available.


  Cell packaging includes coin cell and cylindrical packages.

  Thin film cells based on ceramic or flexible substrates are also available.

HCB Battery Co., Ltd. was founded in 2001. As a leading primary lithium battery manufacturer and solution provider in China, HCB remains dedicated to leading the R&D and manufacturing of various types of primary lithium batteries.

With every improvement that is made, HCB continues to pursue perfection. Technological development & innovation are of great importance to HCB. We have been focusing on providing reliable products & services to the customers worldwides for more than 23 years.

Utility Metering
Automatic meter reading(AMR), advanced metering infrastructure(AMI),electricity meters, gas meters, water meters, heat meters, etc.

Security
Smoke detectors,0. security alarms, seismometers, digital door lock system, etc.

Internet of Things
Asset tracking toll-gate transponders smart home bike-sharing IC cards GPS, TPMS, RFID, etc.

Monitoring
Animal health monitoring system,forest fire alert, smart irrigation system, etc.

Medical Devices
Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring devices, infusion pump, etc.

Marine & Lifesaving
Life jacket, signal light, buoy, etc.

Oil & Gas
Well pressure meters, float meters, logging while drilling(LWD), measure while drilling(MWD), etc.

Military & Defence
Portable radio communications, night vision equipment & thermal images, torches & lamps, etc.

Our products have exported worldwide and won the trust of all, we are striving for the credibility and honor of MADE IN CHINA products.

As a company seeking perfection continuously, we have strict requirements for management. The company has been awarded with OHSMS18000, ISO9001 international quality management system certificate and ISO14000 environmental management system certification. At the same time, as a company present in the extensive international market, HaoCheng has also received the CE product safety certification in EU to ensure the safety of our products exported to EU. Besides, HaoCheng has also been awarded with RoHS environmental certification in EU. Our products have passed the test for hazardous substances, thus proving the environmental features of the products. Meanwhile, because the international market has very critical requirements for shipping, we have been awarded with the UN safe shipping certification of US. Besides, our products have also received the UL American products access certification, which is necessary for all products to enter markets in developed nations such as US.

We have the automatic equipment taking the leading position in China, the fully-automatic lithium manganese coilers (the most in China), lithium automatic production line and laser welder imported from Germany (we used to be the sole Chinese producer having the equipment. Only in recent years, our Chinese competitors began to import such equipment). The price of this laser welder is equivalent to that of a whole
lithium automatic production line. We have invested heavily to buy it because the laser welder only spends 0.7 seconds to weld one battery. It is well known that the ordinary argon arc welder takes a longer time (about 4 seconds). At the same time, the high temperature in the welding would impact on the internal structure in the battery. However, the laser welding greatly reduces the time of heat conducting, thus reducing the
impact on the battery quality in the process of welding. At the same time, the highly-automatic production equipment considerably improves the consistency of batteries, thus ensuring the batch supply of products.

HaoCheng Industrial Park has the professional solutions to stand-by emergency power source. By taking our own advantages, we can guarantee the constant supply of power in critical moments. We have designed IDC-level (data center) emergency stand-by power source solutions for the factory, which is equipped with the self-produced Super Power 530kw diesel power generating unit. In the early stage of factory design, we use the 1+1 double transformer configuration to ensure the constant power supply for production at high cost. As is known to all, dry environment is very important in the process of manufacturing lithium batteries. The moisture will impact on the quality of batteries.

HaoCheng Industrial Park is equipped with 3+1 independent drying and moisture-eliminating system and lithium manganese, lithium thionyl and soft package sets. When one machine breaks down, the battery production will not stop. The drying and moisture-eliminating system of the original HaoCheng company has now become the spare part in the Industrial Park to ensure the lithium battery production is always done

in the wonderful dry environment.
