Water Atomization Powder Manufacturing Equipment for Copper , Fe , etc., powders

Categories Metal Powder Atomization Equipment
Brand Name: easyfashion
Model Number: EFSWH-30/50/100/300/500/1000
Certification: CE,CB
Place of Origin: China(Mainland)
MOQ: 1 set
Price: USD+10,000~1,000,000+Set/sets
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 10 sets per year
Delivery Time: 120 days
Packaging Details: Atomizing Equipment is packed by standard packed by wooden cases and container.
Usage: Atomizing Manufacturing Equipment, Metal Powder Production
Material: high pure metal or alloy
Capacity: 10~1000KG per batch
Powder shape: irregular
Powder range: 10~200μm
Oxygen content in the powder: 100~500ppm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

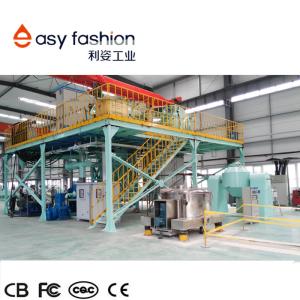

Water Atomization Powder Manufacturing Equipment for Copper , Fe , etc., powders

Water Atomization Equipment


Overview
The water atomization powder manufacturing equipment is a mature technology in powder metallurgy industry. This kind of powder production machine utilizes high-pressure water flow to atomize molten metal into powder particles. It is a kind of equipment with lower production cost. The process is simple and the technology is easy to master. It’s highly recommended for production of iron powder, copper powder, stainless steel powder and alloy powder.
Our water atomization powder manufacturing equipment produces 10~1,000kg powder per batch. It’s also can produce alloy powders, such as iron-based powder, nickel-based powder, copper-based powder, silver-based powder, etc.. Moreover, customized equipment is also available to cater to customer’s specific requirements on batch capacity and particle size.

Features
The atomized powder by the equipment is irregular with relatively high content of oxygen. Oxygen content can be reduced by the subsequent reduction process.
We also offer the whole water atomizing production line, including water atomization powder manufacturing equipment, reduction furnace, nitrogen circulating system, ball mill machine, sieving machine, mixing machine etc..
Specifications

ModelEFSWH-30EFSWH-50EFSWH-100EFSWH-300EFSWH-500EFSWH-1000
High-pressure water pressure
(MPa)
30~120
High-pressure water flow (L/min)50~800
Furnace weight (kg)30501003005001000
Highest melting temperature°C1750
Melt heating power (kW)50100160300400600
Temperature measuring methodInfrared thermometer, WRe5.26
Tundish heating power (kW)20~45
Power supply3 phases, 380V, 50Hz
Installed total power (kW)Based on different capacity and configuration
Cooling water flow (L/min)150300400700
Cooling water deviceFan cooling tower, water cooling unit, heat exchanger
Soft water flow (m3/h)6~20
Control modeIndustrial control computer or PLC
Operation interfaceTouch-tone or Touch-screen
Data recording12 data-curve recording, LCD monitoring display
Appearance size
(LxWxH) (mm)
7500x4000x65007500x4200x65008200x5200x65009200x6500x65009500x6500x650010000x7000x6500
