Energy Conservation Fire Tube Steam Boiler , Hot Water Boiler For Bath Center

Energy Conservation Fire Tube Steam Boiler Hot Water Boilers For Bath Center

Brief introduction

WNS series oil & gas fired hot water boiler is horizontal style, fire tube three pass wet back structure hot water boiler with oil, diesel oil, light oil, heavy oil, natural gas, city gas, LPG gas as combustion fuel. Thermal power is from 0.35MW to 14MW. Working pressure is from 0.7Mpa to 2.5Mpa.

1. WNS oil & gas fired hot water Boiler is of the three-pass, fire tube type, built and stamped in accordance with the requirements of the ASME Code.
2. Large combustion chamber with low heat release for complete combustion. Smoke box is rear-mounted with slip-on stack connector.
3. Access to fireside is accomplished with hinged and davited front and rear doors. Flame observation ports are located on front and rear.
4. Openings for vessel cleanout and inspection of waterside are provided.
5. Main characteristics of WNS Oil & Gas fired Hot Water Boiler

Advantages of fire tube hot water boiler
1. Heat efficiency is higher than 92%
2. Heat efficiency can reach 99 % after adding condenser
3. No need for dust remover
4. Small area covering
5. Less people operate
6. Boiler house height is low
7. Horizontal three return wet back structure
8. Working pressure from 0.7Mpa to 2.5Mpa
9. Using corrugated furnace combustion chamber
10. Adopt high efficient heat transfer threaded pipe
11. Thermal power from 0.35MW to 14MW, clients can choose any thermal power according to their requirements.

Boiler parameter of fire tube hot water boiler

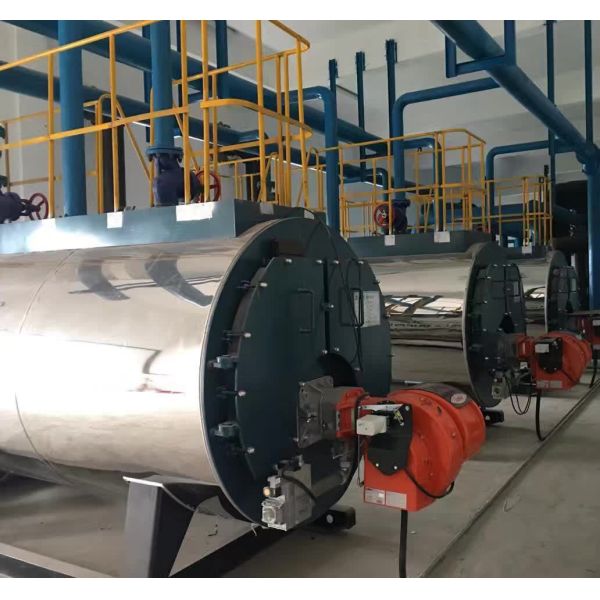

Boiler Pictures

Henan Yuanda Boiler Co., Ltd., established in 1956, locates in Xihua county, Henan province, the central part of China. We are professional manufacturer and supplier for industrial boilers, with over 60 years' experience in boiler design, technique, production, installation and operation. Our company is one of the leading enterprises which first obtained the national boiler manufacturing license in China.

Yuanda devoted to boiler production and sales business, sell boilers at home and aboad. So far, we have sell boilers to more than 80 countries and regions,such as Pakistan, India, Sri Lanka in South Asia, Philippine, Indonisia, Malaysia, Thailand, Vietnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Afica, Russia, Ukraine in Eruope and Mexico, Chile in South America. Our products have gained excellent reputation all over the world.

Our main products are:
(1) WNS series gas oil fired boiler
(2) DZL / DZH series coal wood fired boiler
(3) SZL series coal biomass boiler
(4) YY (Q)W series Gas oil fired thermal oil boiler
(5) YLW series coal biomass fired thermal oil boiler

(6) ZWNS series gas oil fired vacuum hot water boiler
(7) All kinds of pressure vessels

Yuanda Boiler is committed to providing industrial boilers with higher thermal efficiency, lower fuel consumption and more environmentally friendly.

We look forward to making a brilliant future with you.
