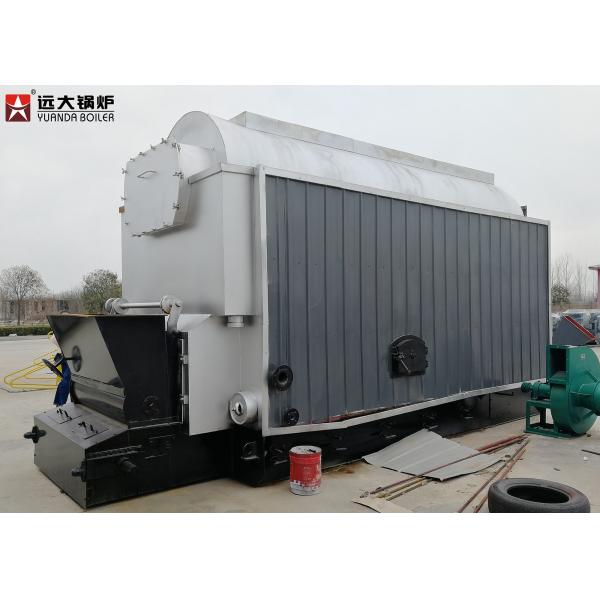

6 Ton / 8 Ton Industrial Steam Boiler / Wood Coal Fuel Fired Boiler

4Ton 6Ton 8Ton Industrial Steam Boiler Wood Coal Fuel Fired Boiler

General introduction of coal boiler

1. Model:DZL
2. Capacity:1-20ton/h
3. Pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4. Steam temperature:184 °c,194°c, 204°c,225°c
5. Fuel:coal
6. Structure:horizontal water-fire tube, single drum
7. Type:we have two types.One is DZL chain grate stoker automatic feeding fuel and removing dregs type. Another is DZH hand operate moving grate type which needs labour to feed fuel and remove the dregs.
8. Application:industrial production and processing.

Advantages of DZL / DZH coal wood fired boiler

DZL model advantages:

More conveninet operation and adjustment.

Clean and automatic boiler fuel feeding device.

Small size appearance, low investment in boiler room.
The boiler is heating up quickly and have high heat efficiency

Automatic and safety running coal/biomass fuel fired boiler.

DZH model advantages:

Manual fuel feeding control.

Low price and low running cost.

Convenient boiler control system.

Strong water quality adaptability.

The output power remain constant.

Superior boiler design features

1. Adopting automatic screw feeding, with reasonable second air technology and half gasification structure
helping fuel combusting completely, the thermal efficiency can reach more than 90%. Stable flame, producing steam cautiously.
2. Primordial dust emissions density is low:The volume of the coal-fired steam boiler is large and there is a dust separation device, so the primordial dust emissions density will be controlled much lower than the standard allowed.
3. Control system: Installing microcomputer to operate with one-button, people just set the process, and it can work automatically during the operating time. Once any abnormal situation to happen, stopping automatically with sound-light alarm, and pointing to the failure code, so it saves time to maintain.
4. Our protected device is safe and reliable. Selecting superior pressure controller, safety valve, low water alarm, overpressure alarm, over-temperature alarm, in order to make boilers operate safely.
5. Heating fast:There are many spiral gas tubes in the boiler and almost half of the coal fired steam boiler shell can be heated, so the temperature can up soon.
6. It is simple to clean slag only after burning completing.

Technical datasheet of coal fired steam boiler

This is just part of the product parameters, if you want to know more detailed parameters of the boiler, please feel free to contact us. (whatsapp/wechat/skype: +86 13783520217)

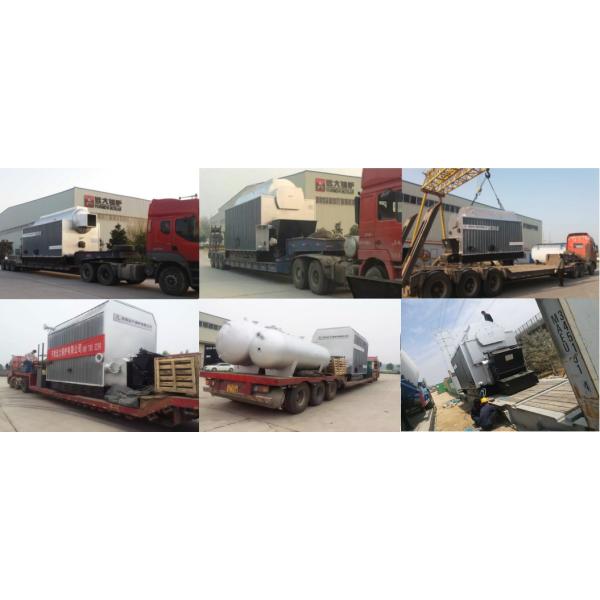

Onland delivery show

Henan Yuanda Boiler Co., Ltd., established in 1956, locates in Xihua county, Henan province, the central part of China. We are professional manufacturer and supplier for industrial boilers, with over 60 years' experience in boiler design, technique, production, installation and operation. Our company is one of the leading enterprises which first obtained the national boiler manufacturing license in China.

Yuanda devoted to boiler production and sales business, sell boilers at home and aboad. So far, we have sell boilers to more than 80 countries and regions,such as Pakistan, India, Sri Lanka in South Asia, Philippine, Indonisia, Malaysia, Thailand, Vietnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Afica, Russia, Ukraine in Eruope and Mexico, Chile in South America. Our products have gained excellent reputation all over the world.

Our main products are:
(1) WNS series gas oil fired boiler
(2) DZL / DZH series coal wood fired boiler
(3) SZL series coal biomass boiler
(4) YY (Q)W series Gas oil fired thermal oil boiler
(5) YLW series coal biomass fired thermal oil boiler

(6) ZWNS series gas oil fired vacuum hot water boiler
(7) All kinds of pressure vessels

Yuanda Boiler is committed to providing industrial boilers with higher thermal efficiency, lower fuel consumption and more environmentally friendly.

We look forward to making a brilliant future with you.
