Red Silicone Coated Fiberglass Fabric 17OZ 0.45MM Foundry Splash Protection

Categories Silicone Coated Fiberglass Fabric
Brand Name: Unionfull
Model Number: UPSE-8732D150
Certification: ISO9001:2008, SGS
Place of Origin: China
MOQ: 100 Meters
Price: $3.6 - 4.9 / Square Meter
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 45,000 m2 per day
Delivery Time: 2 weeks after receiving payment
Packaging Details: 50 meters one roll, 20 rolls one pallet
Base: Fiber Glass Cloth
Weave: Satin
Area Weight: 580g/m2
Coating: Silicone 150gsm
Color: Red
Length: 50m one roll
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Red Silicone Coated Fiberglass Fabric 17OZ 0.45MM Foundry Splash Protection

Red Silicone Coated Fiberglass Fabric 17OZ 0.45MM Foundry Splash Protection​​


Basic cloth of this silicone coated fabric is 430gsm e-glass high temperature fiber glass cloth woven in 4H satin (break twill). With 150gsm red color silicone on two sides, the finish fabric is weighed at 580g/m2 (17oz). Thickness is 0.43mm and one standard roll is 1000mm wide and 50 meters long. This silicone coated glass cloth is resistant to moisture, sunlight, mineral lubricating oils, chemical acids, mild alkali etc. Also this fabric has properties like high abrasion resistance and flexibility, which makes it s common used material for fire welding blanket fabrication.


Silicone coating provides better electrical insulation and waterproofing. Base fiber glass fabric can withstand continuous heat 550℃. Silicone coating can resist heat below 260℃. Silicone coated fiberglass fabrics are mainly used for electric welding cover, removable insulation jackets, mattress and pad, fire blanket&curtain, smoke screen, pipe anti corrosion, engine exhaust cover etc.


Specification:
ItemSilicone Coated Fiberglass Fabric
MaterialFiber Glass Cloth
CoatingSilicone, two sides
Weave4H Satin
Thread Count (Ends/CM)20/11
Total Weight580g/m2
Thickness0.45mm
Width1000mm
One Roll50 meters
Servise Temperature

Silicone coating below 260℃

Fiberglas cloth below 550℃


Features:


  • -50 to 260℃ heat resistant
  • Electrical insulation
  • Anti chemical agents
  • Corrosion resistant
  • Non flammable insulation
  • Environmentally friendly


Application:


  1. Fire welding blanket
  2. High temp welding blankets
  3. Smoke screen
  4. Building insulation materials
  5. Aerospace and other industrIes application

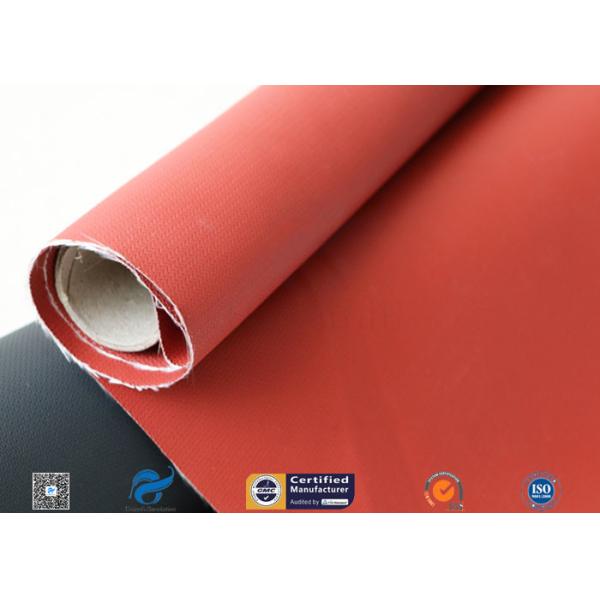

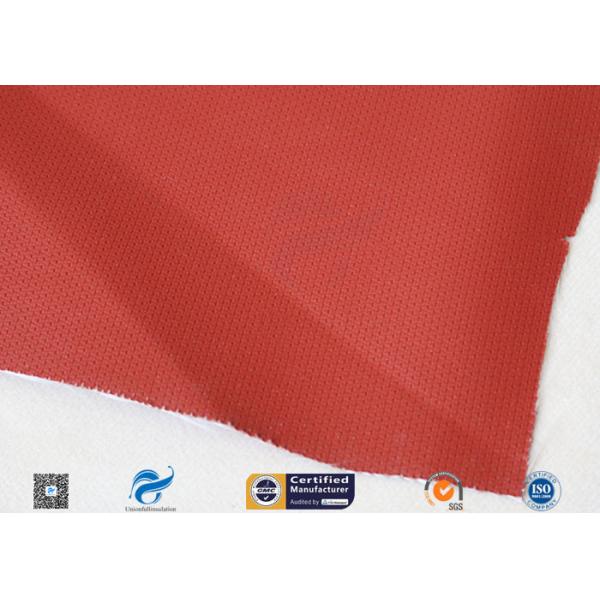

Pictures:
