| Categories | SMD LED Screen |
|---|---|
| Brand Name: | SCXK |
| Model Number: | P6 |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Place of Origin: | China |
| MOQ: | 1 sqm |
| Price: | negotiation |
| Payment Terms: | T/T |
| Delivery Time: | 7 days can be finished and sent to you |
| Packaging Details: | flight case, wooden case, |
| Supply Ability: | 3000 sqm per month |
| Module size: | 192*192 |
| Protection Level: | ip34 |
| LED Shape: | 3mm smd3528 |
| Brightness: | 1600 |
| Pixel Density: | 27777 |
| Scan: | 1/16 |
| Company Info. |
| Shenzhen ShiXin Display Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

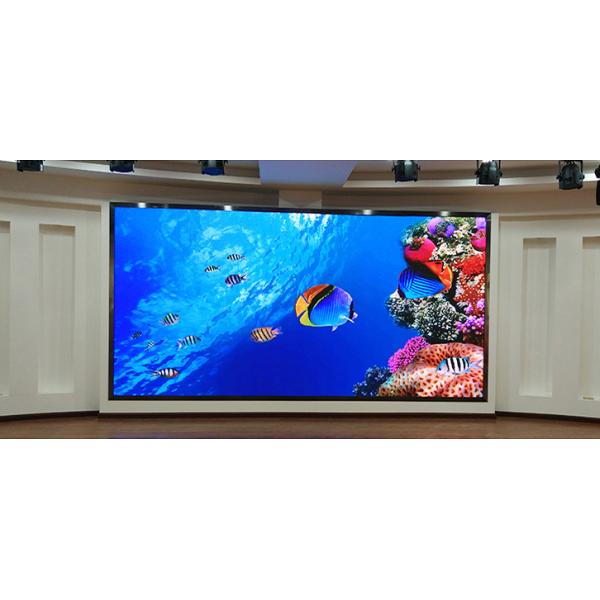

Indoor Outdoor Die Casting Aluminum P6 Rental Full Color LED video wall display
portable super slim 576x576mm aluminum die casting panel full color SMD3528 p6 indoor rental led display
Features:
1. SMD3-IN-1 technology are used for indoor LED display
2. wide view angle:150 inhorizonal and 120 in vertical
3. special design and advanced SMT technology improves the heat
dissipation
4. with high fresh rate controller, guarantee that no scan line
when taking photos
5. regular shape and special shape(such as curve,round) can be
designed
6. easy for assembleing and connection with the connector added
7. high color uniformity and clear image can bring you a vivid
audio visual effect
8. both front access and rear access areavailable
| LECEDE-P6 | |||
| Pixel pitch | 6mm | LED encapsulation | SMD3528 |
| Module resolution | 32×32 dots | View angle | 140°/140° |
| 32×16 dots | |||
| Module size | 192×192 mm | Working environment | Temp: -20°C to +60°C |
| 192×96 mm | temp | Humidity: 35%~85% | |
| Pixel density | 27,777 dots/m² | Working voltage | 110 V±15% |
| or 230 V±15% | |||
| Pixel configuration | 1R1G1B | Driving method | 1/8 scan, |
| constant current | |||
| Optimun Viewing | >5 m | Gray level | RGB/8192/14bit |
| distance | |||
| Max power | 850 W/m² | Display function | Graphics,Animation, |
| consumption | and video | ||
| Brightness | >2000 CD/m² | Refresh rates | > 800Hz |
| Life span | >100,000 hours | Blind spot rate | < 0.00001 |
Customized solutions FCC die casting aluminum indoor smd p6 super
thin rental led display is one of the widely used led display in
the
market now, usually applied in commercial ads, stadium, stage
rental......
Cabinet detail
1 ,Lock
2, Pulling hand
3 ,Locating pin
4 ,Pushing handle
5, power connector
6 ,signal connector
1, Main Power Cable
2,Power cable between the cabinet
3,Main Signal Cable
4,Signal Cable the Cabinet
5, Receiving Card
6,Connection Pad
7, Hanging Beam
Packaging:
1:Flight Case(5 cabinets in one case)
Gross Weight:150KG
Size:1010mm*560mm*1175mm
2:Wooden case(5 cabinets in one case)
Gross Weight:180KG
Size:1120mm*585mm*930mm
Buying Guides
In order to offer you a suitable solution,pleasefollow the guides
belowing:
1, star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. One year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions,
squares and so on.
Company Information
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and
about 100 employees.
We have outstanding R&D department and after-sell service
workers,and separately design ability.
Our product mainly included led single dual color display,led
indoor full color display;led outdoor full color display,led
wireless car used screen etc.It can be used on the shopping
more,bank,bus station,train station,Center of
downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our
product all over the world.
Whenever and wherever we are,we always take the principle that
is:professional makes good quality,good price product market to
provide perfect product and service for our customers.
Certifications:
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
|
