Safety Overload 135% Commercial Truck Scales , 50 Ton Truck Scale Automatic Alarm Function

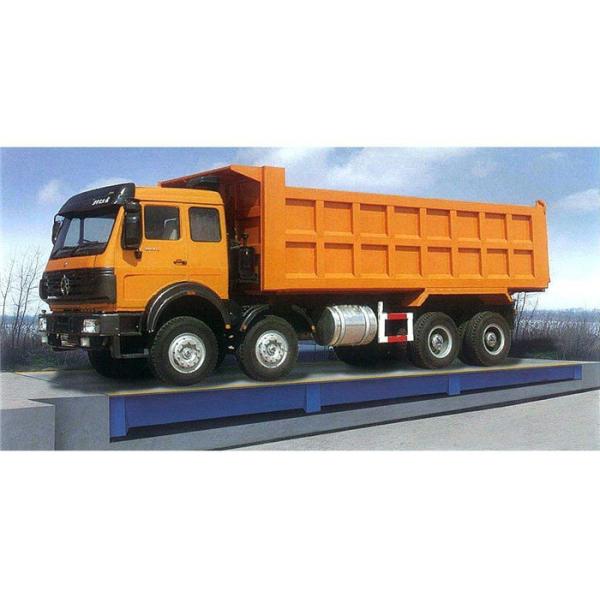

50 Ton Pit Type Weighbridge Electro-Mechanical Truck Scale

The structure of Truck Scale is enclosed construction with 6 U-shaped beams. Compared with normal structure with I-shaped beams, this enclosed design has two advantages--one is to keep off corrosion from inside out protect platform; the other one is more rigid since 6 U-shape beams has 12 support lines than 6 I-shaped beams' and besides stress from truck etc can be divided equally. And surface of platform is covered with epoxy zinc rich primer and acrylic marine paint--the former, is for the first surface layer, whose main function is corrosion protection and to reducing chalking; while, the second layer is acrylic marine paint which is anti-acid, anti-alkali and anti-scratch.

Complete weighbridge management ability; Whole process for vehicle weighing by computer, such as input truck number, material name, etc; standard weighing ticket available; Ticket can also be designed by yourself; weighing records stored by time, vehicle number or material name; weighing records backup and restore available; re-entered first weight, stored and printed, stored first weight, public weighing, simple stock control

8-hours run for weighbridge when AC power off

Safety overload 135%, automatic alarm for overload

Lightening protection set

Self-diagnosis function and tare two-way recovery function

Working temperature: environment relative humidity, non-dew at ≤95%; load cell: -30+70℃; indicator -30+70℃

1. Dynamic weighing accuracy: 1-6% according to the speed.(strongly recommeded under 5km/h)

2. Max alex mass: 30t

3. Min alex mass:500kg

4. High accuracy in dynamic weighing, auto speed compensation

5. Chinese character dot matrix display, display all truck information in one screen.

6. Detector, operator, truck number including the name of city and province.

7. Memo uo to 1300 records.

8. Easy to operate with complete retrieval and statistical functions

9. AC/DC convertible, battery supply up to 14hours for continuous working; auot shutoff

10. Real time display battery capacity

11. Capable of transmitting detecting date to computer at any time.

12. Cocering all functions of single-channel, double-channel type can be adjust and detext right and left chanel sperately with super precision; can chek out side-load either.

13. Capable of performing either duty of highway and ministraction and traffic police.

14. Applied in portable highway overload detection system.

15. The size of platform: 700mm*430mm*30mm

16. The weight of platform:18kg/piece

17. The weight of bridfe approach:8kg/piece

Pinglei is located in Shijiazhuang, Hebei Province, build in 2005. My factory is the largest weighbridge manufacture in North China. We have almost 100 employees in R&D, management, sales and production. We produce truck scales by our own design. Our annual sales reached 10 millions US dollars in 2008,and 80% of sales is from the oversea market.

Pinglei has got a certification of ISO 9001:2015.We concentrate all of our resources to provide the best prices to our customers with top-grade products. The design, manufacturing, inspection and test of our products meet customers demands and all related standards.

We have a strong R&D team who has rich experience in developing various scales, and constantly present new types of products according to the demands of oversea markets. We have various production and testing equipments which are necessary for producing products with high quality. Besides, we have many operators with rich experience, so each piece of our products could get the foreign customers hearty praise.

If you select Pinglei,it is just that you have chosen one advanced and reliable representative.

To choose Pinglei who is powerful and with abundant experience as your supplier, you will save more money and create more value.
