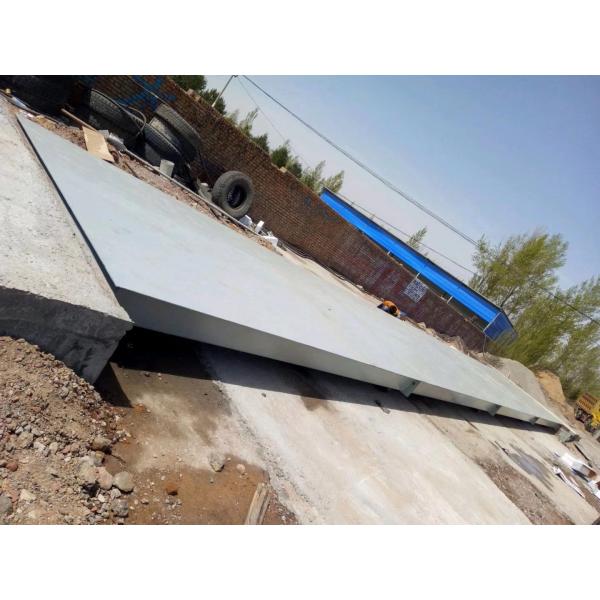

Concrete 80 Ton Electronic Lorry Weighbridge 220 - 300mm Channel Beam

Concrete 80 Ton Electronic Lorry Weighbridge Systems Printer Load Cells

1) Frame type,reinforcement bars to be welded at customer site
2) Steel frame dismountable
3) Optional in platform size, Max. Cap.
4) Optional in load cell, indicator.

Description:

1): Supply status: steel frame in H300 steel, more convenient for container
transportation and economic for transportation charge;
2): Reinforcement bars to be welded at customer's site;
3): With OIML R60 approved double shear beam load cells,LC110-30t
4): Width available: 3m,3.2m,3.4m
5): Standard length available:6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,24m
6): Max.Capacity available: 30t,40t,60t,80t,100t,120t
7): In one 40'container,7 pcs of 18m can be loaded in.

Applications:

1). Weighing
2). Net weight/tare
3). Weight accumulation

Competitive Advantage:

1): We develop this export style structure, suitable for container transportation, and becomes the most popular export style structures in China market.
2): Our engineer has the unique designing ideas for this structure that the other imitators cannot imitate, which makes our truck scales with the best ratio between the quality and price.
3): Easy installation, robust structure.

Specifications:

Pinglei is located in Shijiazhuang, Hebei Province, build in 2005. My factory is the largest weighbridge manufacture in North China. We have almost 100 employees in R&D, management, sales and production. We produce truck scales by our own design. Our annual sales reached 10 millions US dollars in 2008,and 80% of sales is from the oversea market.

Pinglei has got a certification of ISO 9001:2015.We concentrate all of our resources to provide the best prices to our customers with top-grade products. The design, manufacturing, inspection and test of our products meet customers demands and all related standards.

We have a strong R&D team who has rich experience in developing various scales, and constantly present new types of products according to the demands of oversea markets. We have various production and testing equipments which are necessary for producing products with high quality. Besides, we have many operators with rich experience, so each piece of our products could get the foreign customers hearty praise.

If you select Pinglei,it is just that you have chosen one advanced and reliable representative.

To choose Pinglei who is powerful and with abundant experience as your supplier, you will save more money and create more value.
