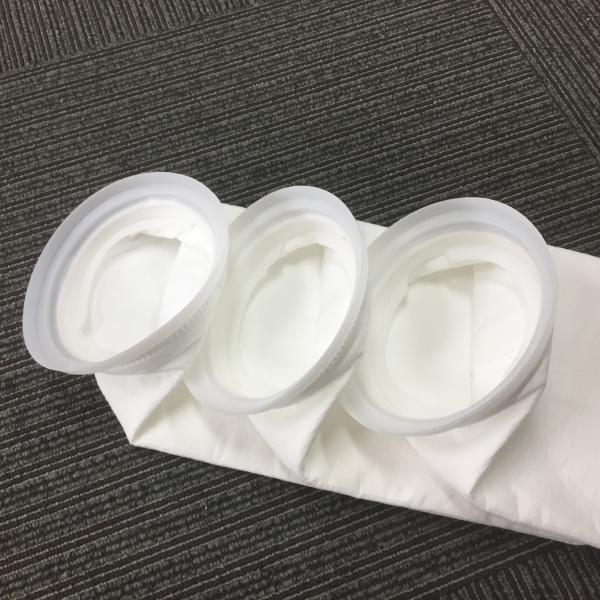

Micron Filter Bags With Stainless Steel Ring

Micron rated filter bag with Stainless steel ring sewn construction

Industrial Micron needle punched non woven liquid filter bag

Needle punched felt filtration bag with SS ring has big advantages in the filtration efficiency and service life span. Due to the using the advanced technology for design, the service life span of the filter bag has greatly extended, avoid of fibers on the surface dropped to the filter bag surface, and though special singeing and polishing processing, the surface fibers are greatly reduced, but still maintain its air permeability .SS steel ring sewn filter bag with virgin fibers needle felts, creates stereoscopic 3D filter layers, uses depth filtration principle, liquid flows through the twists and turns on the path, the solid or gelling particles will be intercepted and hold on the inner wall of the filter bag surface and deep layer, so it has capture capabilities against the solid or colloidal particles, such kinds filter bag also has the advantages of good material thickness uniformity, good stability of pore size and enhanced mechanical strength, better efficiency and long service time and so on.

Technical Specifications

Chemical Compatibility

Micron/Mesh Conversion Table( Nylon /NMO)

Applications:

Auto coating & paint

Water purification& processing

Pharmaceutical

Food& beverage

Bulk &fine chemicals

Electronics

Shipping way & Package details :

By sea / air / express

Shanghai / Ning Bo/Tianjin

Carton Box Dimension: 40cmx50cm x60 cm

Gross weight: 12 kgs per box

Qty inside: 100 pcs P1S

How to replace the filter bag

1. Change-out Pressure Differential: The recommended bag filter change-out pressure differential across the bag media is 0.10MPA ( 15 PSI). Continuing beyond this point will result not only in rapid flow rate reduction and contaminant unloading, but also increase the risk of filter rupture. The max differential pressure allowed is 0.23 MPA( 35PSI).

2. Removal of use filter: During operation, the filter media many be embedded into perforated on the basket under excessive pressure, making it difficult to remove the bag filter.When this happens, don’t use excessive force to pull the bag, as it will break the ultrasonic welding line and detach the seal ring form the bag body. To safely remove the bag, shake the basket rapidly and then use a spine motion to separate the bag from the basket, slowly pull the use bag filter out.

The principle filtration --- liquid filter bag filtration

This kind filter is pressure filtration, the whole system includes three parts: bag filter housing,supporting basket and filter bags. The flow materials enter to the top of the filter housing, and flow the inside of the filter bag to the outer side of the filter bag, whole materials are uniformly distributed on the surface.The particles in the liquid are captured inside of the filter bag, no leakage, easy operation, high efficiency, big amount materials can be treated, filter bag with long life span. It is energy saving products in liquid filtration industry, can be applied for any kinds of preliminary , middle and fine filtration.The filtration system design needs to consider process conditions such as working temperature, pressure , viscosity, flow rate, impurity types, contents and particles size and so on , as well as storage volume, opening method, planned filter bag replacement frequency and production costs.

As the young pioneer enterprise in the environmental protection industry, Shanghai ShengXuan Environmental Engineering Co.,Ltd adheres to the policy of putting people first and giving priority to science and technology and devotes itself to the devotes itself to the development and manufacture of series kinds bag filters and accessories which can be widely used in dust and liquid filtrations.

Now ,we have Three main parts products have been recognized and approved by users all over the world.

Dust bag filter industries

We produce the dust filter bags from the needle felts to the filter bags in whole own design and techology, FMS, Fiberglass,PPS, Nomex, P84,PTFE ,PET/PP which widely used in power, metallurgy,building materials, cement  and chemical indstries. In the same time, we also provide the technology service, maintenance service in customers site factory.

Fluid /liquid bag filters

From the liquid bag filters to the bag filter housings, produced by ourselves.

Conveyor belts industries

Polyester woven belts, air slide belts, conveyor belts , can be used in all conveyor industries.

We Sheng Xuan is determined to provide the air and water pollution control industry with best quality products and services.
