| Categories | Deep Groove Ball Bearing |
|---|---|
| Brand Name: | Kentie |
| Model Number: | 626ZZ |
| Certification: | CE/SGS/ISO/Germany Ryan |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Price: | US$0.26 |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 500,000pcs per month |
| Delivery Time: | 2-3 work days |
| Packaging Details: | Plastic tube and paper carton |
| Material: | SUS420 stainless steel |
| Specification: | 6*19*6mm |
| Dynamic Load Rating: | 2.01KN |
| Static Load Rating: | 1.05KN |
| Speed: | 28000rpm |
| Weight: | 0.008kg |
| Seals type: | Metal Shields |
| Retainer: | Nylon/steel |
| OEM: | Availible |
| Clearance: | ABEC-1 |
S626ZZ Stainless Steel Deep Groove Ball Bearings 2 Metal Shield 6 * 19 * 6mm
Stainless steel bearing S696ZZ can be used in the working condition
of underwater and damp heat enviroment.
Stainless steel has the ability of resistance to atmospheric
oxidation-namely,stainless,also has in the medium containing
acid,alkali,salt corrosion-namely,the ability of corrosion
resistance.But the size of its ability to resisit corrosion was
with the chemical composition of steel itself,and each state,using
conditions and environmental medium type and change.
Specifications
| Bearing Model | S626ZZ bearing |
| Outer Diameter | 19mm |
| Inner Bore | 6mm |
| Width | 6mm |
| Material | AISI420 Stainless Steel |
| Seals | ZZ |
| Lubrication | Grease |
| Package | Plastic tube |
Stainless Steel Deep Groove Ball Bearings
| Bearing NO | Bore | O.D. | Width | Load Rating | Steel Ball | Chamfer | Weight | ||
| d | D | B | Cr | Cor | |||||
| mm | mm | mm | KN | KN | Number | Size | mm | KG | |
| SS624 | 4 | 13 | 5 | 0.89 | 0.42 | 0.2 | 0.003 | ||
| SS625 | 5 | 16 | 5 | 1.76 | 0.68 | 8 | 2.381 | 0.3 | 0.005 |
| SS626 | 6 | 19 | 6 | 2.64 | 0.885 | 6 | 3.969 | 0.3 | 0.008 |
| SS627 | 7 | 22 | 7 | 3.35 | 1.4 | 7 | 3.969 | 0.3 | 0.014 |
| SS628 | 8 | 34 | 8 | 4 | 1.59 | 7 | 3.969 | 0.3 | 0.016 |
| SS629 | 9 | 26 | 8 | 4.55 | 1.96 | 7 | 4.763 | 0.3 | 0.019 |
| SS6200 | 10 | 30 | 9 | 5.1 | 2.39 | 8 | 4.763 | 0.6 | 0.032 |
| SS6201 | 12 | 32 | 10 | 6.1 | 2.75 | 7 | 5.953 | 0.6 | 0.035 |
| SS6202 | 15 | 35 | 11 | 7.75 | 3.6 | 8 | 5.953 | 0.6 | 0.045 |
| SS6203 | 17 | 40 | 12 | 9.6 | 4.6 | 8 | 6.747 | 0.6 | 0.064 |
| SS6204 | 20 | 47 | 14 | 12.8 | 6.65 | 8 | 7.938 | 1 | 0.103 |
| SS6205 | 25 | 52 | 15 | 14 | 7.85 | 9 | 7.938 | 1 | 0.127 |
| SS6206 | 30 | 62 | 16 | 19.5 | 11.3 | 9 | 9.525 | 1 | 0.2 |
| SS6207 | 35 | 72 | 17 | 25.7 | 15.3 | 9 | 11.11 | 1 | 0.288 |
| SS6208 | 40 | 80 | 18 | 29.1 | 17.8 | 9 | 12 | 1 | 0.368 |
| SS6209 | 45 | 85 | 19 | 32.5 | 20.4 | 10 | 12 | 1 | 0.416 |
| SS6210 | 50 | 90 | 20 | 35 | 23.2 | 10 | 12.7 | 1 | 0.463 |
| SS6211 | 55 | 100 | 21 | 43.5 | 29.2 | 10 | 14.288 | 0.5 | 0.602 |
| SS6212 | 60 | 110 | 22 | 52.5 | 36 | 10 | 15.08 | 1.5 | 0.789 |
| SS6213 | 65 | 120 | 23 | 57.2 | 40.1 | 10 | 16.668 | 1.5 | 0.99 |
| SS6214 | 70 | 130 | 24 | 62 | 44 | 11 | 16.668 | 1.5 | 1.084 |

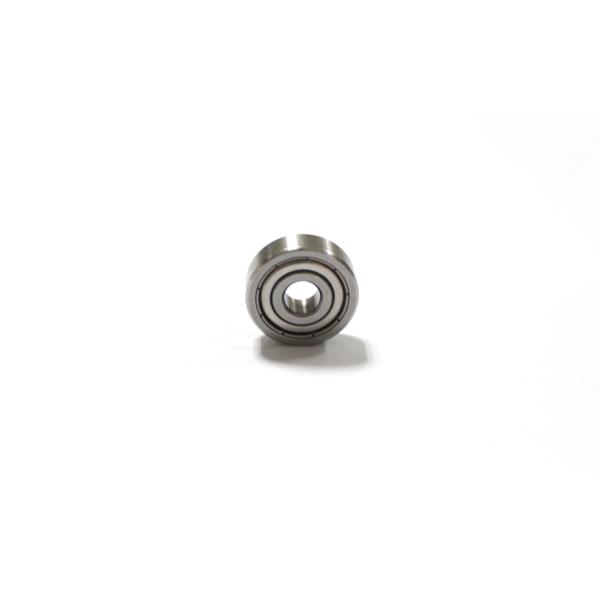

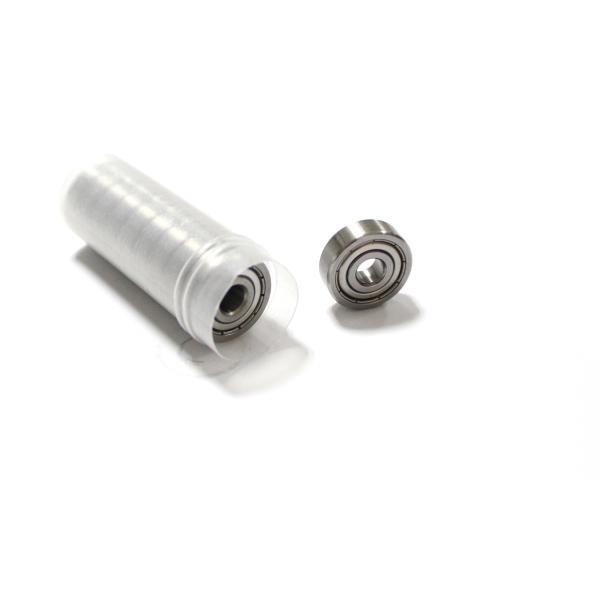

Detailed Pictures
|
