| Categories | Deep Groove Ball Bearing |
|---|---|
| Brand Name: | Kentie |
| Model Number: | S605-2RS |
| Certification: | CE/RoHS/ISO9001 |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Payment Terms: | T/T, Western Union,Paypal, MoneyGram, D/P, D/A, L/C |
| Supply Ability: | 500,000pcs per month |
| Delivery Time: | 2-3 work days |
| Packaging Details: | Plastic tube and carton box |
| Product name: | High Precision Miniature Bearing S605-2RS Stainless Steel 5x14x5mm |
| Specification: | 5*14*5mm |
| Dynamic Load Rating: | 1.13KN |
| Static Load Rating: | 0.51KN |
| Speed: | 4000rpm |
| Weight: | 0.005kg |
| Seals type: | rubber seals |
| Retainer: | Nylon/steel |
| Clearance: | C0 |
| Material: | AISI420 stainless steel |

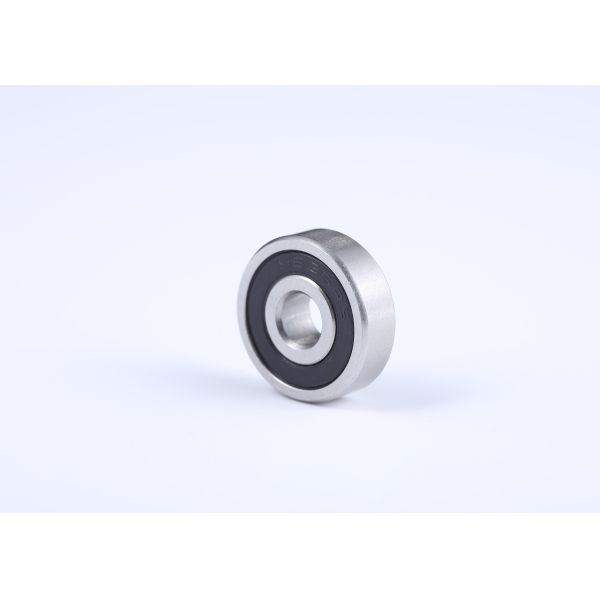

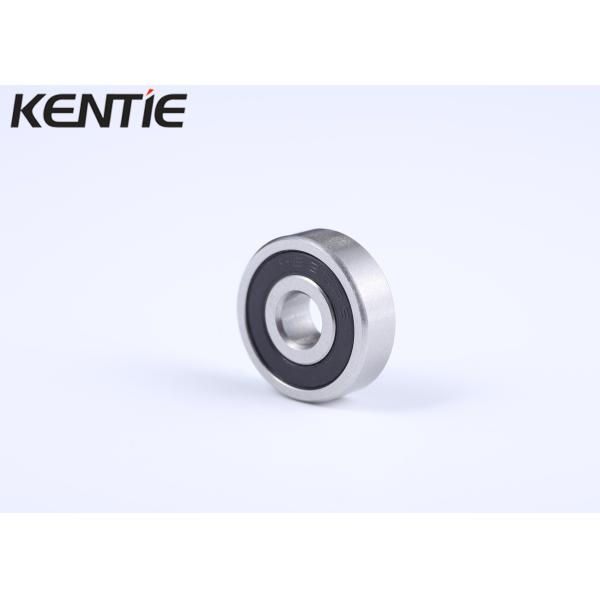

High Precision Miniature Bearing S605-2RS Stainless Steel 5x14x5mm
Kentie S605-2RS Stainless Steel Ball Bearing is made of Stainless Steel, each bearing is rubber sealed on both sides to protect the bearing from dust or any possible contamination, and bearing is pre-lubricated with grease or light oil.
Specifications
| Bearing Model | S605-2RS bearing |
| Outer Diameter | 14mm |
| Inner Bore | 5mm |
| Width | 5mm |
| Material | Stainless Steel 420 |
| Seals | 2RS |
| Lubrication | Grease/oil |
| Package | Plastic tube |
Other bearing available:
| NO | d | D | B | Load Rating | Steel Ball | Chamfer | Weight | ||
| Bearing No | mm inch | mm inch | mm inch | Cr N | Cor N | Amount | Size | KG | |
| SS605 | 5 | 14 | 5 | 1.33 | 0.505 | 6 | 2.381 | 0.3 | 0.0045 |
| SS606 | 6 | 17 | 6 | 2.19 | 0.865 | 8 | 2.381 | 0.3 | 0.006 |
| SS607 | 7 | 19 | 6 | 2.24 | 0.91 | 6 | 3.969 | 0.3 | 0.007 |
| SS608 | 8 | 22 | 7 | 3.35 | 1.4 | 7 | 3.969 | 0.3 | 0.015 |
| SS609 | 9 | 34 | 7 | 3.4 | 1.45 | 7 | 3.369 | 0.3 | 0.016 |
| SS6000 | 10 | 26 | 8 | 4.55 | 1.96 | 7 | 4.763 | 0.3 | 0.019 |
| SS6001 | 12 | 28 | 8 | 5.1 | 2.39 | 8 | 4.763 | 0.3 | 0.022 |
| SS6002 | 15 | 32 | 9 | 5.6 | 2.84 | 9 | 4.763 | 0.3 | 0.031 |
| SS6003 | 17 | 35 | 10 | 6.8 | 3.35 | 10 | 4.763 | 0.3 | 0.04 |
| SS6004 | 20 | 42 | 12 | 9.4 | 5.05 | 9 | 6.35 | 0.6 | 0.068 |
| SS6005 | 25 | 47 | 12 | 10.1 | 5.85 | 10 | 6.35 | 0.6 | 0.078 |
| SS6006 | 30 | 55 | 13 | 13.2 | 8.3 | 11 | 6.747 | 1 | 0.11 |
| SS6007 | 35 | 62 | 14 | 16 | 0.3 | 11 | 7.938 | 1 | 0.148 |
| SS6008 | 40 | 68 | 15 | 16.8 | 11.5 | 12 | 7.938 | 1 | 0.185 |
| SS6009 | 45 | 75 | 16 | 21 | 15.1 | 12 | 9 | 1 | 0.23 |
| SS6010 | 50 | 80 | 16 | 21.8 | 16.6 | 13 | 9 | 1 | 0.258 |
| SS6011 | 55 | 90 | 18 | 28.3 | 21.2 | 11 | 11.1125 | 1 | 0.362 |
| SS6012 | 60 | 95 | 18 | 29.5 | 23.2 | 13 | 11.1125 | 1 | 0.385 |
| SS6013 | 65 | 100 | 18 | 30.5 | 25.2 | 13 | 11.1125 | 1 | 0.41 |
| SS6014 | 70 | 110 | 20 | 38 | 31 | 13 | 12 | 1 | 0.575 |


|
