| Categories | Beer Brewing Equipment |
|---|---|
| Brand Name: | SLET |
| Model Number: | 1000L |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | 3100-5500 USD |
| Payment Terms: | T/T |
| Supply Ability: | 20 WORKING DAYS AFTER THE DEPOSIT |
| Delivery Time: | 20 WORKING DAYS AFTER THE DEPOSIT |
| Packaging Details: | Iron frame |
| Material: | SS304 |
| Connection: | DIN32 |
| Manway: | side |
| Port: | Dry hopping, temp, sample valve |
| Guage: | Pressure gauge, bunging valve |
| Custom: | Level, CARNONATION STONE |

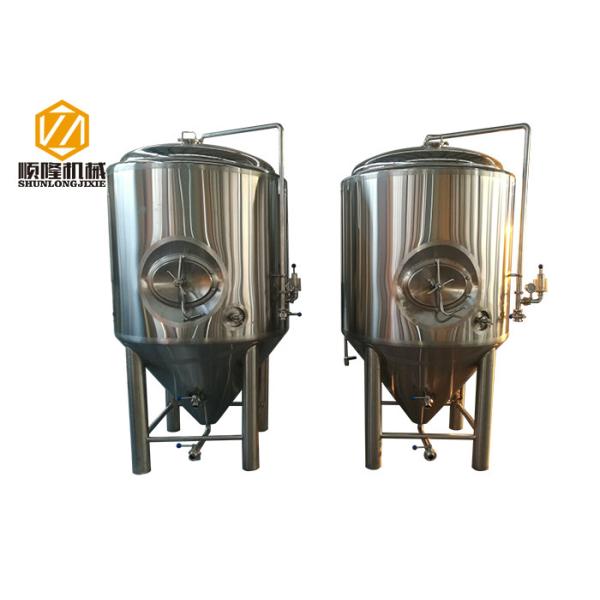

din32 food grade Europe compliance 1000L side manhole fermentation tanks
1000l Fermentation tank techncial data sheet
Food grade SS304, din32 couplers
Useful capacity:1000L.(+25% head space)
Inner:SS304.TH=3.0mm Outer:SS304.TH=2.0mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.6μm without dead corner
Insulation: Polyurethane; TH=80mm
Glycol Jacket for cooling
Dished head and 75 degree cone bottom
Side Manhole: φ330*430mm.
CO2 blow-off arm with butterfly valve
Full sanitary sampling valve
Bunging valve 2 bar on CIP arm
Shockproof pressure gauge on CIP arm
Dry hopping port(φ100mm) with solid end cap
4 completely SUS304 heavy duty legs with leveling pad
Thermo well for high accuracy temperature sensor
Testing pressure 3bar keep 48 hours;
Working pressure 2 bar
Brewery
| Brewery System | Capacity / Volume |
| SL-Home brewery series | 30L, 50L,100L pilot/home brewery system |
| SL-Commercial brewery series | 100L--1000L, 3BBL--10BBL pub/restaurant,micro brewery plant |
| SL-Microbrewery series | 200L, 300L, 500L,1000L |
| MT-Pub, Hotel, Bar Brewery System series | 300l, 500L, 600l, 800L,1000l |
| SL-Large brewery plant | 1000L--5000L, 10BBL---40BBL brewery plant |
| SL-Brewhouse | Two/Three/Four/Five Vessels, Electric/Stream/ Directly Fire heating source |
| SL-Fermentation | 100L~10000L conical fermenters, dimple plate jacket |
| SL-Bright Beer Tank/Maturation Tank | 100L~10000L serving tanks, BBTs, dimple plate jacket |
| SL-Turnkey Brewery | stainless steel beer kegs, Beer Tower, Bottling & Kegging System, bottle filling System, and etc. |
|
