| Categories | Pneumatic Rubber Fender |
|---|---|
| Brand Name: | Florescence RUBBER |
| Model Number: | Florescence rubber fender(36) |
| Certification: | CCS,ABS,DNV,LR,ISO9001 |
| Place of Origin: | Shandong,China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 100 pcs/month |
| Delivery Time: | 5-10 work days |
| Packaging Details: | nude,container |
| Main material: | Natural rubber and cord fabric |
| Inner filling thickness: | 3 mm |
| Length: | from 0.5-9.0m |
| Initial pressure: | 0.05-0.08Mpa |
| Warranty period: | 24 months |
| Design using life: | Usually 10 years |

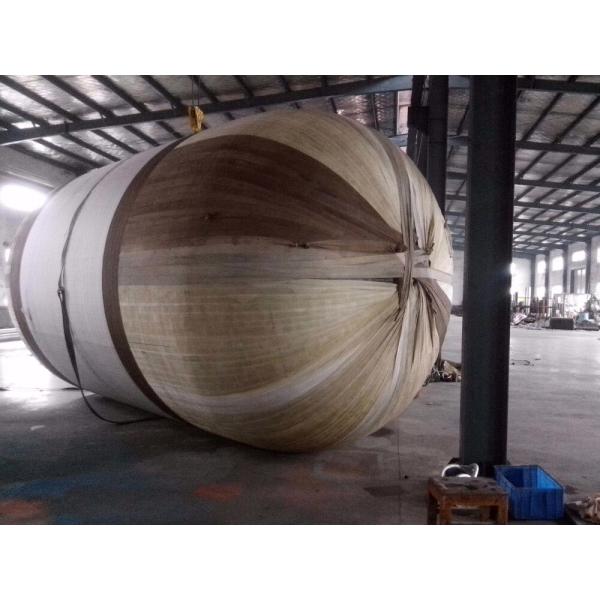

Floating Marine Rubber Fender With Fishbone Type Cover For Fuel
Ships
In order to produce the qualified and famous China Brand of
pneumatic fenders , Florescence RUBBER invested the advanced
production and test equipments, and invited the foreign experienced
engineers of pneumatic fenders, which ensure all Florescence
pneumatic fenders are manufactured comply with ISO17357:2002.
Therefore, Florescence -RUBBER is the unique manufacturer of
ISO17357 qualified Pneumatic Fenders in China.
In order to protect your maritime values, Florescence -RUBBER
strongly recommends the use of ISO certified Pneumatic Fenders
while performing the high quality needed for safe berthing during
ship to ship operations involving bunkering or discharging of oil
or gas, and ship to port operation
Storage of marine rubber fender
* When not using for a long time,wash the surface of the fender,dry
up and fill in sufficient right amount of compressed air to lay
them in a cool.dry and well-ventilated place.
* The storage place of pneumatic rubber fender should be far away
from hear source
* Try to keep fender away from acid,alkali,grease and organic
solvents
* When not applying the fenders,the pneumatic rubber fender can’t
be piled up and heavy items can’t be piled on the fender
Technical performance of pneumatic rubber fender
Specification | 0.05Mpa(Initial pressure 0.05Mpa) | (Initial pressure 0.08Mpa) | ||||
| Weight(kg) | Reaction force(KN) | GEA | Weight | Reaction force(KN) | GEA | |
| 0.5X1.0 | 25 | 674 | 6 | 25 | 85 | 8 |
| 0.6X1.0 | 32 | 74 | 8 | 32 | 98 | 11 |
| 0.7X1.5 | 50 | 137 | 17 | 50 | 180 | 24 |
| 1.0X1.5 | 80 | 182 | 32 | 80 | 239 | 45 |
| 1.0X2.0 | 100 | 257 | 45 | 125 | 338 | 63 |
| 1.2X2.0 | 120 | 297 | 63 | 165 | 390 | 88 |
| 1.35X2.5 | 165 | 427 | 102 | 226 | 561 | 142 |
| 1.5X3.0 | 315 | 579 | 153 | 370 | 761 | 214 |
| 1.7X3.0 | 405 | 639 | 191 | 436 | 840 | 287 |
| 2.0X3.5 | 590 | 875 | 308 | 632 | 1150 | 430 |
| 2.5X4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 |
| 2.5X5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 |
| 3.0X5.0 | 1880 | 2000 | 1050 | 2155 | 2709 | 1571 |
| 3.3X4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
| 3.3X6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
| 3.3X10.6 | 4403 | 5257 | 3067 | 5020 | 6907 | 4281 |
| 4.5X9.0 | 6554 | 5747 | 4752 | 7470 | 7551 | 6633 |
| Note:The weight is the fender body weight(without tires and chain),with weight error of ±10% and counterforce error of ±10% | ||||||
Application of marine rubber fender:
pneumatic rubber fender has widespread application as following:
* Ship to ship,ship to wharf
* Oil tankers, container vessels
* Luxury yachts, ocean platforms
* Larges shipyards
* Fender system
* Military ports ,warship
* Larger under water foundations of bridges, etc
FAQ
Q1: What’s your delivery time and payment terms?
A: Delivery time is according to customers’ size and order qty.The
payment terms you could choose are T/T,L/C at sight,Western Union
and so on.
Q2: What about your warranty time?
A: Our warranty period is 24 months.During this time,any problems
about products from our factory,we solemn promise to change and
repair them for free;if problems from customers’ improper
operating,we could provide free guidance and repair materials


|
