| Categories | Outdoor Fiber Optic Cable |
|---|---|
| Brand Name: | Furong |
| Model Number: | GYFXTY |
| Certification: | SGS, ISO |
| Place of Origin: | DONGGUANG CHINA |
| MOQ: | 1KM |
| Price: | NEGOTIABLE |
| Supply Ability: | 2000KM/DAY |
| Packaging Details: | WOODEN DRUM |
| Outer Jacket: | PE |
| Strength Member: | FRP |
| Fiber Core: | 2-12 |
| Package: | Wooden Drum 1-4km/drum |
| OEM: | Accepted |
| Fiber Type: | singlemode or multimode |

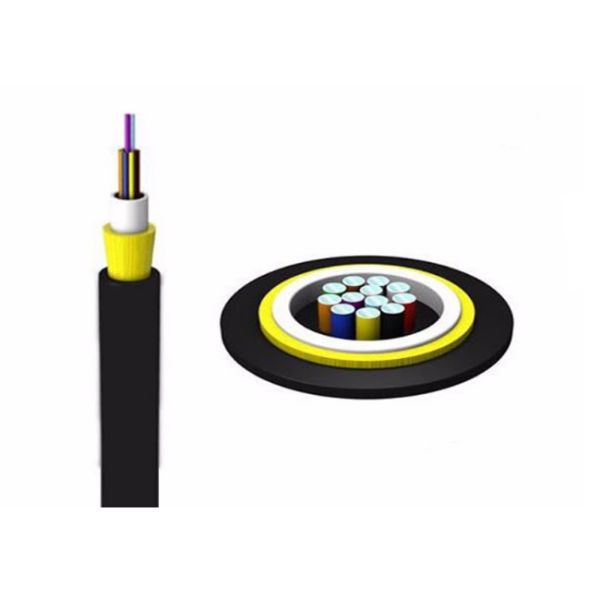

GYFXTY is an outdoor communication optical cable of of the central tube jelly-filled structure with embedding steel-polyethylene laminated sheath, consisting of the central loose tube, two parallel FRP strength members, and sheath.
Features:
--Good mechanical and temperature performance.
--High strength loose tube that is hydrolysis resistant.
--Special tube filling compound ensure a critical protection of
fiber.
--Crush resistance and flexibility.
--Two parallel steel wires ensure tensile strength.
--Small diameter, light weight and friendly installation.
| Technical Parameters: | |||||||||
| Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature | |||
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) | |
| 2 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 4 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 6 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 8 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 12 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| Optical Characteristics | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A,B,C,D) | B1.1:Conventional fiber | ||
| G.653 | B2: Zero dispersion shifted | |||
| G.654 | B1.2 :Cut-off wavelength shifted | |||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber | |||


|
