FTTH NAP Outdoor Wall Mount 8 Ports Fiber Optic Splitter Acess Terminal Box

Categories Fiber Optic Splitter Box
Brand Name: YINGDA
Model Number: FDB0208H
Certification: ISO
Place of Origin: china
MOQ: 100 pcs
Price: 1.0USD-18.6USD
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per month
Delivery Time: 5-8 working days
Packaging Details: 1pc /box, 10pcs /carton box
Color: White
Material: ABS+PC
Dimension: 240*195*66 mm
Adapter: 8 PCS SC Simplex coupler
Max. Capacity: 8 cores (single fusion)
Cable Port: 2 in (dia.16mm), 8out (dia.2*3mm)
Splitter: 1x2, 1x4, 1x8 Mini PLC splitter steel tube
IP Rating: IP65
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

FTTH NAP Outdoor Wall Mount 8 Ports Fiber Optic Splitter Acess Terminal Box

FTTH NAP Outdoor Wall Mount 8 Ports Fiber Optic Splitter Acess Terminal Box


FDB0208H is designed to connect feeder / distribution cable to subscriber's drop cable using
PLC splitter in FTTx networks. The rear tray is for splicing a fiber of feeder cable with PLC splitter
and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray. It is
excellent sealing performance,reusable. Protection grade is IP 65. It can use SC or LC duplex adapter,
and maximum micro splitter 1x8.
Features
  • The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain
  • For indoor and outdoor overhead and hang wall use
  • Box of body use "lock type" structure, box of body switching of simple, convenient,
  • with a lock function safe use
  • Melt receive flip type design simple to use, melting with complete separation of fine
  • points fibre layout more reasonable

Specification


ModelFDB-0208H
Dimension (L*W*H)240*195*66mm
FunctionCable terminal, 1x8 passive splitter distribution box
Adaptr outputSC, LC
Max ratio1:8
Max capacity8 fibers

More Photos Showing

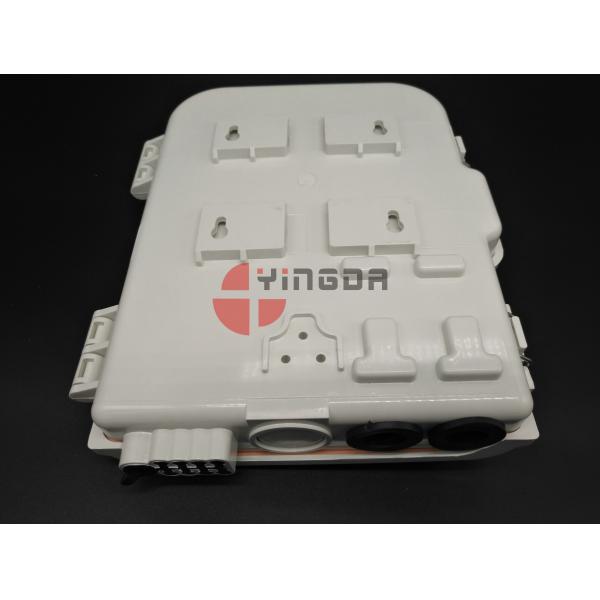

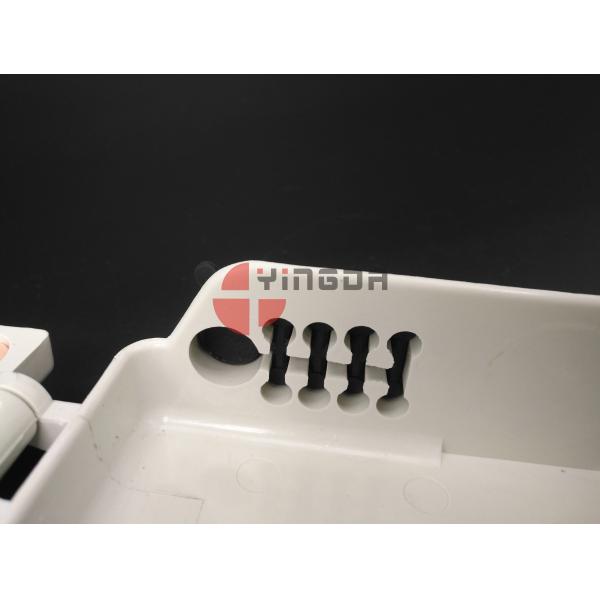

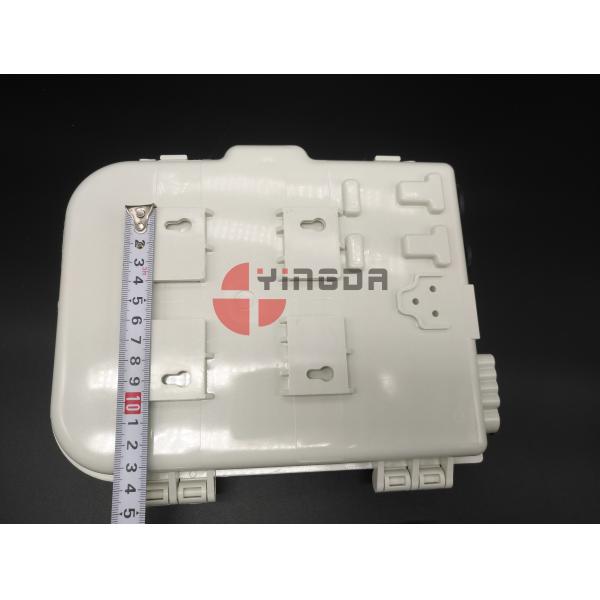

CABLE PORTS WALL MOUNT HOLES

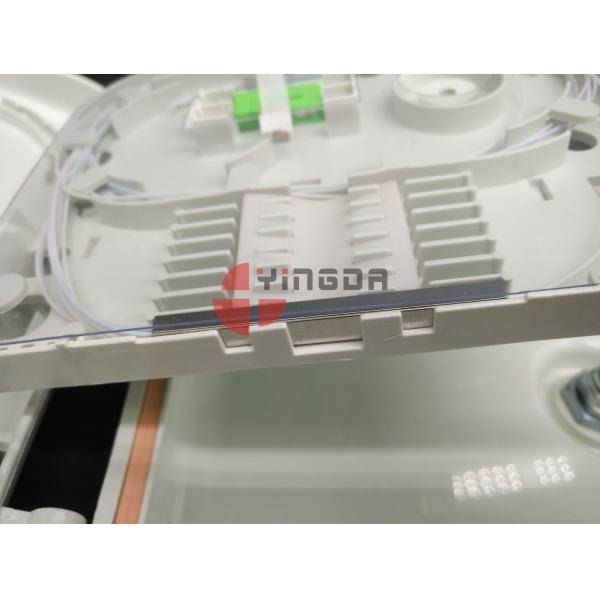

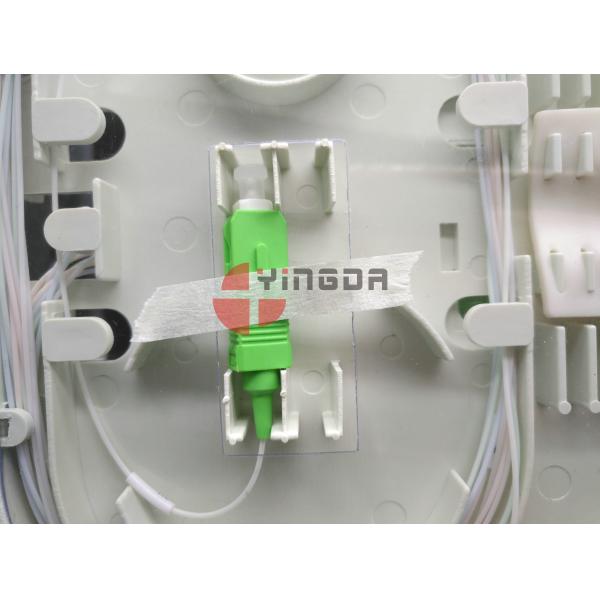

Splitter groove holder and fusion splice area input connector of splitter fix by cloth glue


internal large size for cable entry,and metal parts all ports is seal by rubber

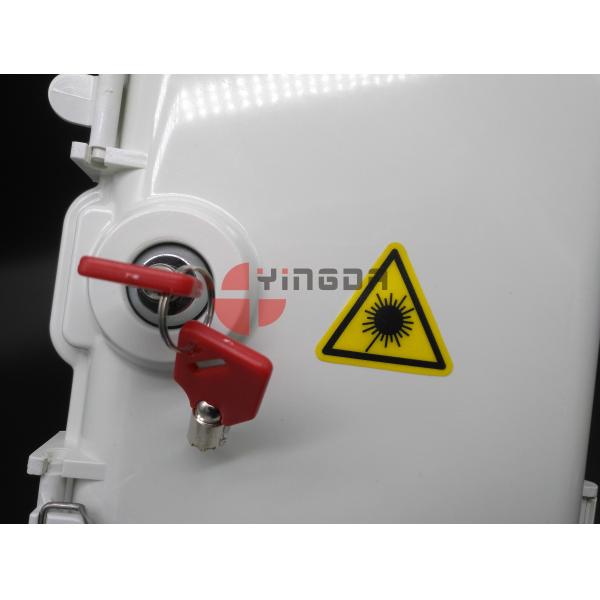

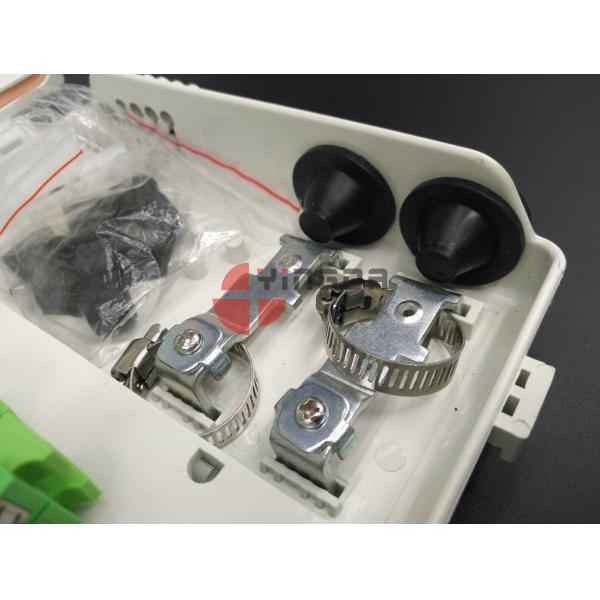

lock system: key + 2 buckles, laser mark accessories:mounting kits+sealing kits


OEM/ODM welcome, logo print or mark design, free sample available.
