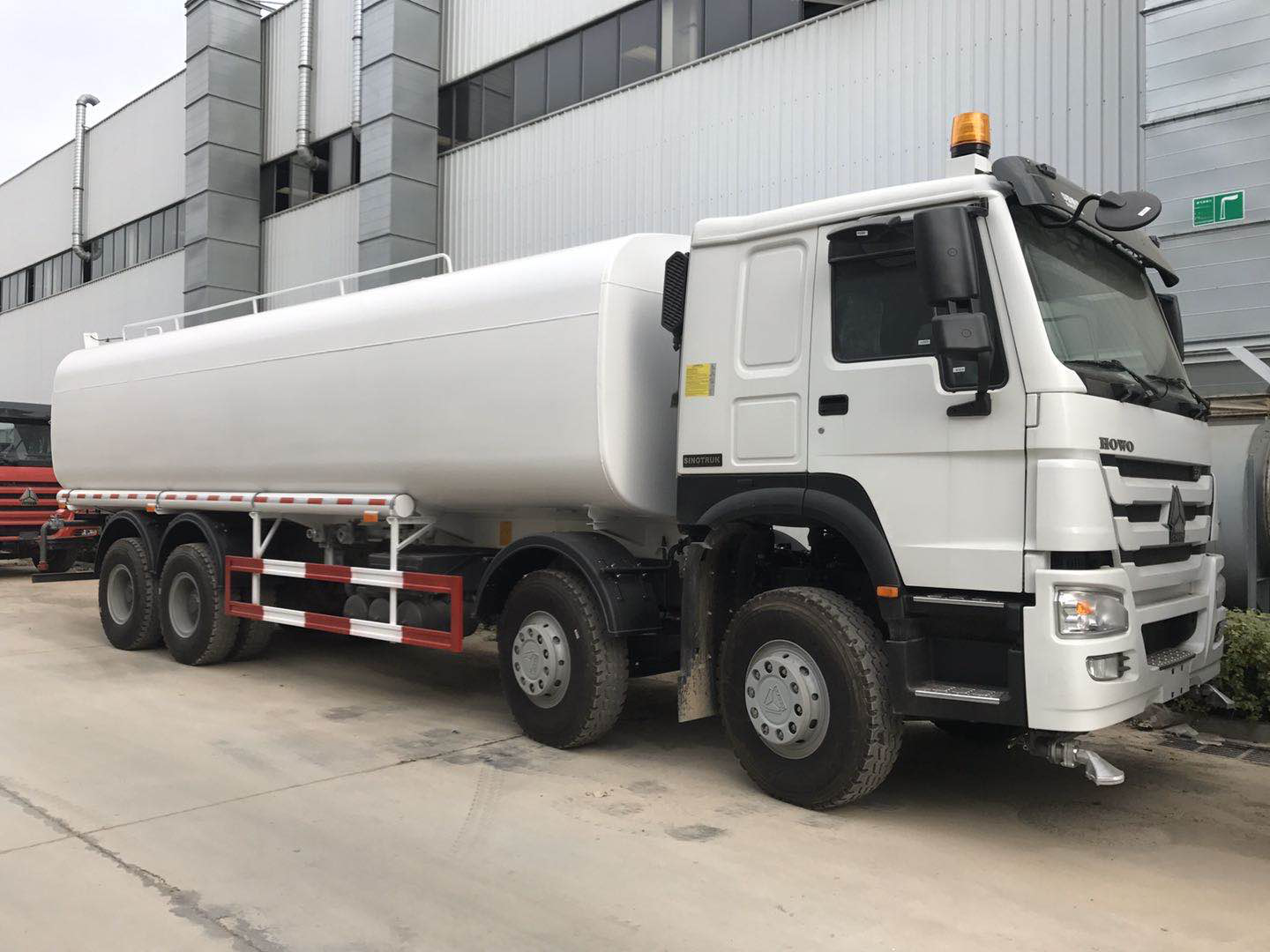

Howo Heavy Duty Dump Truck , Water Tanker Truck Capacity 12-20m3

Howo Heavy Duty Dump Truck , Water Tanker Truck Capacity 12-20m3

Chassis No: ZZ1257N4641W

Brand: HOWO

Traction type: 6X4

Driving type: LHD (RHD is option)

Cabin: HOWO cab HW76 ( flat head, normal-roof , single sleeper, A/C)

Engine model: WD615.69 EURII

Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line

with water cooling, turbo-charging & intercooling

Displacement: 9.726 liters

Max. output: 336hp@2200rpm

Max torque: 1200NM@1200-1600rpm

Bore/Stroke(mm):126/130

Mean Position Speed: 9.53m /s

Compression ratio:15.5:1

Specific fuel consumption: 198g /Kwh

Gear box: HW15710

Clutch: Φ430 pull-type diaphragm clutch

Steering: ZF8098

Front axle: HOWO Front axle 7t

Rear axle: ST16

Tyre : 12.00-20 (rim: 8.5-20)

No of tyre: 10+1

Max. speed (km/h): 102

Max. gradeability(%): 28

Kerb. mass: 11000 kg

Total mass: 25000kg

Wheel base (mm): 4600+1350

Fuel tank(L):400L Tank

Front overhang (mm):1500

Rear overhang (mm): 2600

Front track (mm): 1958

Rear track (mm): 1830

Approach angle: 16 degree

Departure angle: 15 degree

Dimension (mm): 10350x2500x3718mm

Tanker:

Manufacturer: CIMC Special Vehicle Co., Ltd

Capacity of tank: 12m3

Material: with spray gun.
