Single Row Tapered Roller Bearing 30219, For Vehicle Wheel Automotive Bearing size 95*170*32mm
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
| Inner bore d mm | Bearing number | Principal dimensions | Basic load ratings | Max runout speed | Weight | ||||||||
| dynamic | static | grease | oil | ||||||||||
| D | T | B | C | r1,2 min | r3,4 min | r5 min | C | Co | |||||
| mm | N | r/min | kg | ||||||||||
| 17 | 30203 | 40 | 13,25 | 12 | 11 | 1,0 | 1,0 | 0,3 | 15.200 | 14.880 | 7.200 | 10.400 | 0,075 |
| 20 | 30204 | 47 | 15,25 | 14 | 12 | 1,0 | 1,0 | 0,3 | 22.000 | 22.400 | 6.400 | 8.800 | 0,120 |
| 25 | 30205 | 52 | 16,25 | 15 | 13 | 1,0 | 1,0 | 0,3 | 24.640 | 26.800 | 6.000 | 8.000 | 0,150 |
| 30 | 30206 | 62 | 17,25 | 16 | 14 | 1,0 | 1,0 | 0,3 | 32.160 | 35.200 | 5.040 | 6.800 | 0,230 |
| 35 | 30207 | 72 | 18,25 | 17 | 15 | 1,5 | 1,5 | 0,6 | 40.960 | 44.800 | 4.240 | 5.600 | 0,320 |
| 40 | 30208 | 80 | 19,75 | 18 | 16 | 1,5 | 1,5 | 0,6 | 49.280 | 54.400 | 3.840 | 5.040 | 0,420 |
| 45 | 30209 | 85 | 20,75 | 19 | 16 | 1,5 | 1,5 | 0,6 | 52.800 | 61.200 | 3.600 | 4.800 | 0,480 |
| 50 | 30210 | 90 | 21,75 | 20 | 17 | 1,5 | 1,5 | 0,6 | 61.200 | 73.200 | 3.440 | 4.480 | 0,540 |
| 55 | 30211 | 100 | 22,75 | 21 | 18 | 2,0 | 1,5 | 0,6 | 71.760 | 84.800 | 3.040 | 4.000 | 0,700 |
| 60 | 30212 | 110 | 23,75 | 22 | 19 | 2,0 | 1,5 | 0,6 | 79.200 | 91.200 | 2.720 | 3.600 | 0,880 |
| 65 | 30213 | 120 | 24,75 | 23 | 20 | 2,0 | 1,5 | 0,6 | 91.200 | 107.200 | 2.400 | 3.200 | 1,150 |
| 70 | 30214 | 125 | 26,25 | 24 | 21 | 2,0 | 1,5 | 0,6 | 100.000 | 124.800 | 2.400 | 3.200 | 1,250 |
| 75 | 30215 | 130 | 27,25 | 25 | 22 | 2,0 | 1,5 | 0,6 | 112.000 | 140.800 | 2.240 | 3.040 | 1,400 |

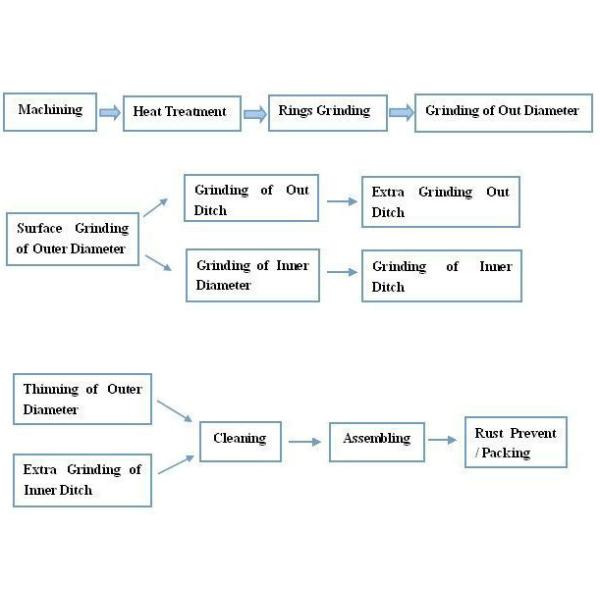

Processing flow

Packaging & Shipping
Packaging Details
package:
1. Tube+carton+pallet: eg.10 pcs bearings are packed in a tube.30 tubes are put into a carton. It is usually for small bearings..
2. paper box+carton+pallet: every bearing is packed in a paper box, then put in a carton.It is usually for small or middle bearings.
3. Wooden packing:every bearing is packed into a wooden case.It is usually for big bearing 4. according to your requirement
Delivery Time
5-15Days

|
