Photovoltaic Flexible Monocrystalline Solar Panel 25W 12V For Outside Street Light

Categories Mono Cell Solar Panel
Brand Name: SHINE OR OEM
Model Number: SN-EH25
Certification: CE, LVD, TUV, IEC, ROSH, SGS
Place of Origin: CHINA
MOQ: 1
Price: negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000 pcs per month
Delivery Time: 15 days
Packaging Details: single box or 25 pieces per pallet
Max power: 25Watt
Voltage: 17.6V vmp
Current: 1.38A
Efficiency: 21.50%
SIze: 560*277*3mm
Junction box: MC4 Connector and
Production name: 25watt FlexibleSolar Panel
Warranty: 5 Years manufacturing warranty
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Photovoltaic Flexible Monocrystalline Solar Panel 25W 12V For Outside Street Light

25w 12v solar panel monocrystalline flexible solar panel price Mono Cell Solar Panel for street light

25w marine flexible solar panel Specifications:
1. Back Contact solar panels for off-grid and on-grid systems
2. Solar cells from TaiwanCorporation
3.16%-18% high efficiency.
4. Back contact solar cells looks more beautiful and amazing.

Mono flexible solar panel feature:
1. High-efficiency silicon solar cells ensure high performance of solar modules and create maximum power output
2. The thickness only 2.5mm, easy joint to your yacht, boat or RV roof, or fixed on your caravans, motorhomes, bicycle and other vehicles for outdoor using
3. Bending angle up to 30 degrees. Durable with aluminum backsheet, no glass

Product Description

BrandOEM/SHINE
ModelnumberSN-MH25W
characteristics
Size560*277*3mm
Cell dimension125*125mm
No. Of cells36(2-18) pieces
Electrical Performance
Maximum power voltage18 V
Maximum power current1.38 A
Open circuit voltage21.6 V
Short circuit current1.51 A
Peak power50W
Power tolerance0~+3%
Maximum system Voltage (V)600 V
Working Conditions & Parameters
NOCT cell46±2 °C
Temperature coefficient Isc (%)+0.04±0.015%/ °C
Temperature coefficient Voc (%)-0.3±0.02%/ °C
Temperature coefficient Pm (%)-0.45±0.05%/ °C
Temperature coefficient Im (%)+0.04%/ °C
Temperature coefficient Vm (%)-0.32±0.02%/ °C
Operating temperatures-40°C ~+90 °C
Surface pressure60m/s (200kg /m2)

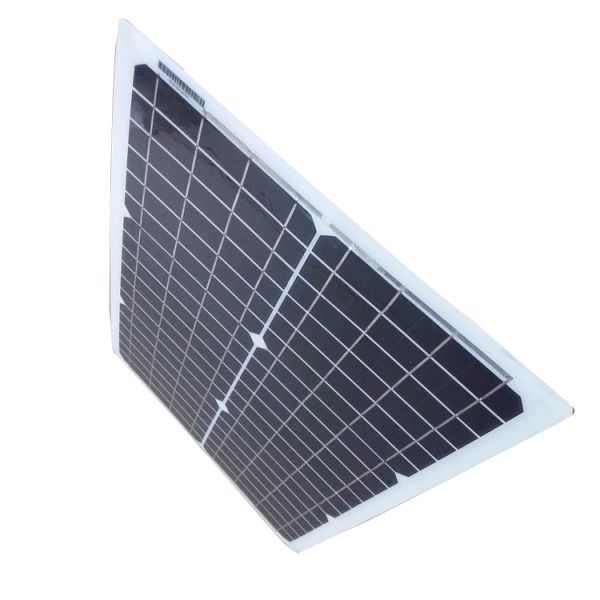

Pictures:
