| Categories | Welded Steel Tube |
|---|---|
| Brand Name: | Hongbao |
| Model Number: | HB-WT-001 |
| Certification: | TS16949, ISO9001, OHSAS18001 etc. |
| Place of Origin: | China |
| MOQ: | 1 ton |
| Price: | Negotiable |
| Supply Ability: | 60000 MT per Year |
| Delivery Time: | 30-45 Days |
| Packaging Details: | Seaworthy wooden box, customized packing |
| Payment Terms: | L/C, T/T |
| Material: | E355 |
| Shape: | Round |
| Application: | Camshaft |
| Delivery Condition: | +C,+N |
| Standard: | EN10305-2 |
| Technique: | Cold Drawn |
| Company Info. |
| Jiangsu Hongbao Group Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

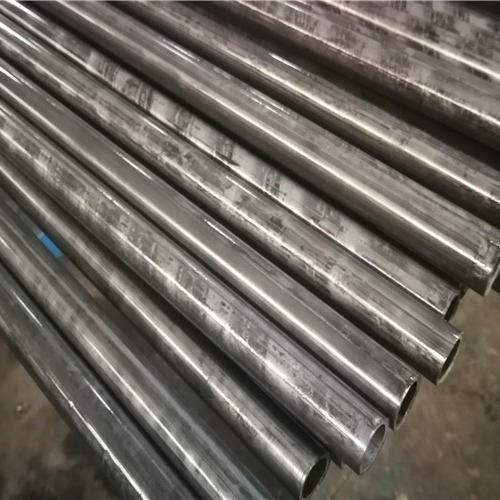

EN10305-2 E355 Welded Carbon Steel Tube for Hydraulic Steel Pipe
Description:
Aviable Material:
E155 E195 E235 E275 E355
Chemical Compositions:
| Steel Number | Quality Level | Thickness/mm | Deoxidize Method | C(%)≤ | Si(%)≤ | Mn(%)≤ | P(%)≤ | S(%)≤ |
| E185(Fe310) | 0 | - | - | - | - | - | - | - |
| E235(Fe360) | A B C D | ≤16 ＞16-25 ≤40 ＞40 | N - - E NE NE GF | 0.22 0.17 0.20 0.17 0.20 0.17 0.17 | - 0.40 0.40 0.40 0.40 0.40 0.40 | - 1.40 1.40 1.40 1.40 1.40 1.40 | 0.050 0.045 0.045 0.045 0.045 0.040 0.035 | 0.050 0.045 0.045 0.045 0.045 0.040 0.035 |
| E275(Fe430) | A B C D | ≤40 ＞40 | - E NE NE GF | 0.24 0.21 0.22 0.20 0.20 | - 0.40 0.40 0.40 0.40 | - 1.50 1.50 1.50 1.50 | 0.050 0.045 0.045 0.040 0.035 | 0.050 0.045 0.045 0.040 0.035 |
| E355(Fe510) | C D | ≤30 ＞30 ≤30 ＞30 | NE NE GF GF | 0.20 0.22 0.20 0.22 | 0.55 0.55 0.55 0.55 | 1.60 1.60 1.60 1.60 | 0.040 0.040 0.035 0.035 | 0.040 0.040 0.035 0.035 |
Size Range:
OD: 6-80mm
WT: 0.5-10mm
Deliver Condition:
1) +C No heat treatment after the final cold drawing process
2) +LC After the final heat treatment there is a suitable drawing
pass
3) +SR After the final cold drawing process there is a stress
relieve heat treatment in a controlled atmosphere
4) +A After the final cold drawing process the tubes are annealed
in a controlled atmosphere
5) +N After the final cold drawing operation the tubes are
normalized in a controlled atmosphere
|
