Professional Cold Drawn Steel Pipe Cold Condensers 120mm OD E235 E355

EN10305-1 EN10305-4 Precision Seamless Steel Tubes +C +N +LC +SR +A Seamlee Steel Round Pipe

Standard Statement

EN 10305-1:2010. Steel tubes for precision applications. Technical delivery conditions. Seamless cold drawn tubes.
EN 10305-4:2011. Steel tubes for precision applications. Technical delivery conditions. Seamless cold drawn tubes for hydraulic and pneumatic power systems.

Material

Main material: E235,E355

Other aviliable material: 10#,20#,45#,16Mn, ST30Al,ST35, ST37,ST37.4,ST45,ST52,ST52.4,E155,E195,E255, etc

Size Range

OD: 4-120mm

WT: 0.5-15mm

Chemical Compositions

Steel Number

Quality Level

Thickness/mm

Deoxidize Method

C(%)≤

Si(%)≤

Mn(%)≤

P(%)≤

S(%)≤

E235(Fe360)

≤16

＞16-25

≤40

＞40

0.22

0.17

0.20

0.17

0.20

0.17

0.40

1.40

0.050

0.045

0.040

0.035

0.050

0.045

0.040

0.035

E355(Fe510)

≤30

＞30

≤30

＞30

0.20

0.22

0.20

0.22

0.55

1.60

0.040

0.035

0.040

0.035

Delivery Condition

Designation	Symbol	Description
Cold drawn/ hard	+C	No heat treatment after the final cold drawig process.
Cold drawn/ soft	+LC	No heat treatment after the final cold drawig process.
Cold draw and stress relieved	+SR	After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere.
Annealed	+A	After the final cold drawing process the tubes are annealed in a controlled atmosphere.
Normalized	+N	After the final cold drawing operation the tubes are normalized in a controlled atmosphere.

Application

Automotive pipeline system;hydraulic system of diesel engine and engineering machinery;hydraulic system of locomotive, aerospace and aviation,shipbuilding and various machinery;metal processing of wind power equipment;

Advantage of Precision Seamless Steel Tubes

1. Smaller outer diameters;

2. High precision can be done in small batch production;

3. Cold drawing finished products with high precision and good surface quality.

4. The transverse area of the steel tube is more complicated;

5. Steel pipe performance is superior, metal is more dense.

Surface treatment:

Oil-dip;

Varnish;

Shot Blasting;

As customer's requirements.

Test:

100% Ultrasonic Detector

Eddy Current Detector

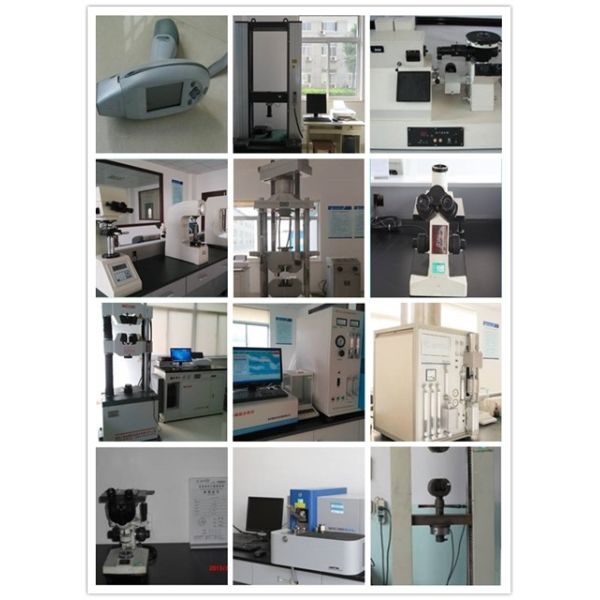

We have our own lab to control the material quility and to make sure the product meet the international standard.

Product Tags:


*From:	Your email address is incorrect!
*To:	Jiangsu Hongbao Group Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Cold Drawn Seamless Steel Tube
Brand Name:	Hongbao
Certification:	TS16949, ISO9001, OHSAS18001 etc.
Place of Origin:	China
MOQ:	1 ton
Price:	Negotiable
Supply Ability:	60000 MT per Year
Delivery Time:	30 Days
Packaging Details:	Seaworthy Wooden box, customized Packing
Model Number:	HBPST-1
Shape:	Round
Application:	Automotive Part, Hydraulic System, High-precsion Machining. etc.
Delivery Condition:	+C,+LC，+SR，+N，+A
Standard:	EN10305-1, EN10305-4
Port:	Shanghai Port
Payment:	T/T; L/C
Trade Term:	FOB, EXW, CIF
Material:	E235, E355
