FX-900 Color Steel Roll Forming Machine For Freight Car Panel / Truck Panel

FX-900 Color Steel Roll Forming Machine For Freight Car Panel / Truck Panel

Product Description

1, Suitable material: Color steel sheet Roll former
2, Thickness of raw material: 0.8-2mm
3, Wight:8.5T
4, Working Speed: About 5-8m/min
5, Step distance: Adjustable according to requirement (>=250mm)
6, Main motor power: 15Kw (Depend on final design)

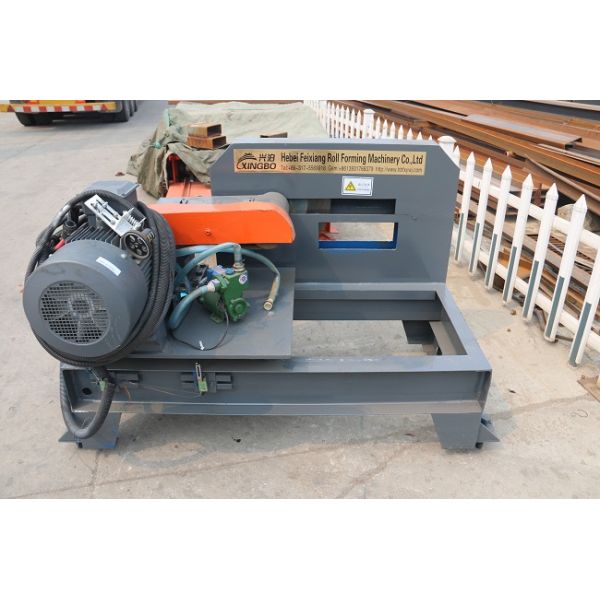

7, Hydraulic station power: 7.5Kw (Depend on final design) Glazed tile roll forming machine |
8, Uncoiler's loading capacity Max. Capacity: 5000kgs (can be increased to be 10T) roof panel roll forming machine
9, Controlling system :Mitsubishi PLC & converter Forming machine
10, Machine's size : About 8.5m× 1.5m× 1.2m (Depend on final design)

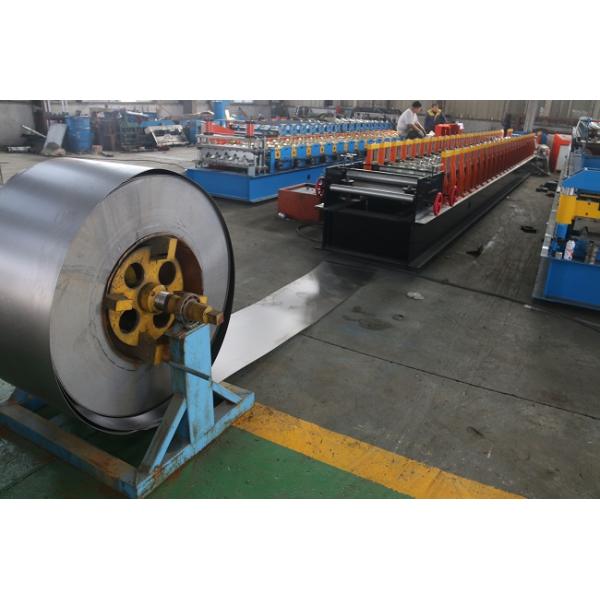

Processes: Manual decoiler--Roll forming machine--PLC system--Hydraulic system--Post cut--Stacking
11, Material of main equipment:
Roller material: high grade 45# forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as car panel on automobile industrial.

2. Processing technique and deployment

Processes: Manual decoiler — Roll forming machine — PLC system — Hydraulic system -Post cut - Run out Table

FAQ

1 How can we install the spiral welded pipe roll forming machine?

a When finished the spiral welded pipe roll forming machine, you can with your techinian or one of your worker to our factory inspect the machine. While we run the spiral welded pipe bending machine , we can teach your techinian how install the machine and run the machine.

b If you do not plan to come the inspect the machine running, we can send you the machine running vedios and machine manual which telling how to install the machines.

c We also have a strong machine installing team which ever go to custoer's country install many machines.

If you demand our technian to work with you, our techinian can go to your place teach our worker's .

But, our techinian's accomodations should be arranged by your sides and pay 80 USD/day .

Feixiang roll forming machinery is a china manufacturer of metal steel cold roll forming machines, bending machines, cutting machines, and slitting machines. It is a division of its parent company, Xingbo International.

Feixiang was founded in 1997 and is the oldest roll forming machine maker around today in the north of china. Its history includes the first double layer color steel roll forming machine,the first high speed interchangeable C U keel roll forming machine,the first gear drive with water cooling cable tray roll forming machine created by Mr.Fu in 2005.

In 2013,they first successfully developed high speed rotary punching machine ,which highest speed could be 100m/min,makes the company got government recognition.

The company marketed overseas its first roll forming machine in 2006 and established relations of cooperation with customers from over 80 countries all around the world. Feixiang has built up a reputation for designing high-quality, high-speed ,safe and cost-effective cold forming and bending equipments .

They have become a status symbol for high productive capacity and the safe and easy operate. The company is synonymous with technical and has been involved with several famous international exhibition since 2008.

The company currently has 2 invention patents, 1 utility model patents,has been accepted by the 1 invention patents, 2 utility model patents. Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy" .
