| Categories | Snap Frame Light Box |
|---|---|
| Brand Name: | YG Displays |
| Model Number: | YGY22 |
| Certification: | CE,UL,LM80, ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 Piece |
| Price: | USD+95-99+M2 |
| Supply Ability: | 500Pcs/Month |
| Delivery Time: | 10-15 days |
| Packaging Details: | PE bag+EPE corners+Export cartons |
| Material: | 6063 Aluminum |
| LGP: | Misubishi Pure Acrylic |
| Cover: | Acrylic or PC/PS |
| LED: | 3014/2835 SMD |
| Power Supply: | External |
| Brightness: | >2500 lux |
| C.C.T: | 3000-9000K |
| Colors: | White, Silver and Black |
| Open Style: | Snap Open |

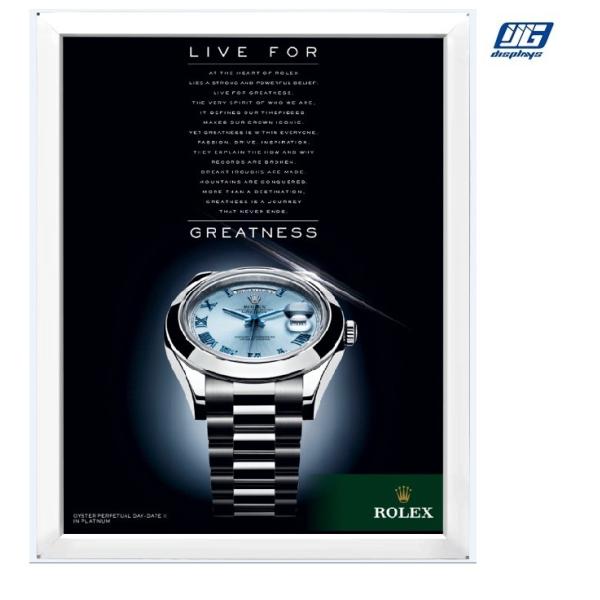

22 Thickness White/Silver/Black Colors Aluminum Snap Frame LED Light Box
Product Specifications:
| ITEM | A0 | A1 | A2 | A3 |
|---|---|---|---|---|
| Frame Size(mm) | 1228x880x22 | 880x633x22 | 633x459x22 | 459x336x22 |
| Viewing Size(mm) | 1168x820 | 820x573 | 573x399 | 399x276 |
| Image Size(mm) | 1189x841 | 841x594 | 594x420 | 420x297 |
| Colors | Silver/Black/White | Silver/Black/White | Silver/Black/White | Silver/Black/White |
| Gross Weight | 10kgs | 6kgs | 4kgs | 3kgs |
| Average Brightness | >2500lux | >2500lux | >2500lux | >2500lux |
| Power Consumption | 40W | 25W | 11W | 7W |
| Input Voltage | DC12V/24V | DC12V/24V | DC12V/24V | DC12V/24V |
| LED | 2835 SMD | 2835 SMD | 2835 SMD | 2835 SMD |
| C.C.T | 6000-7000K | 6000-7000K | 6000-7000K | 6000-7000K |
| Working Tem. | -20C~50C | -20C~50C | -20C~50C | -20C~50C |
| Warranty | 1-2 Years | 1-2 Years | 1-2 Years | 1-2 Years |
| Thickness | 22mm | 22mm | 22mm | 22mm |
Product Features:

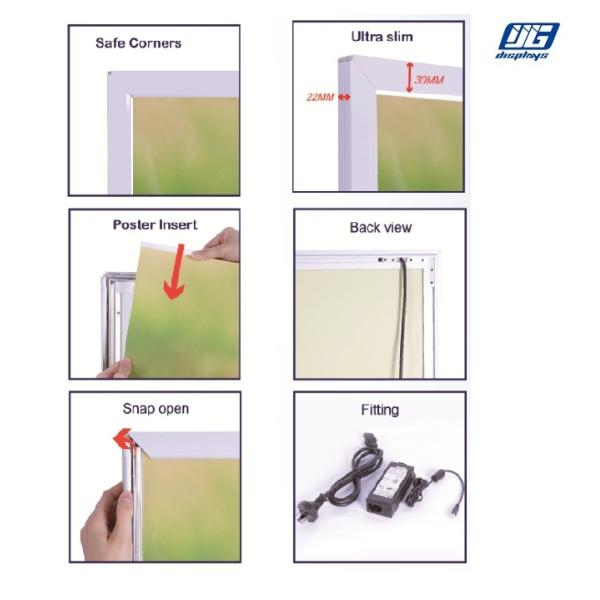

(1) Ultra-slim light box aluminum profile 22mm thickness;

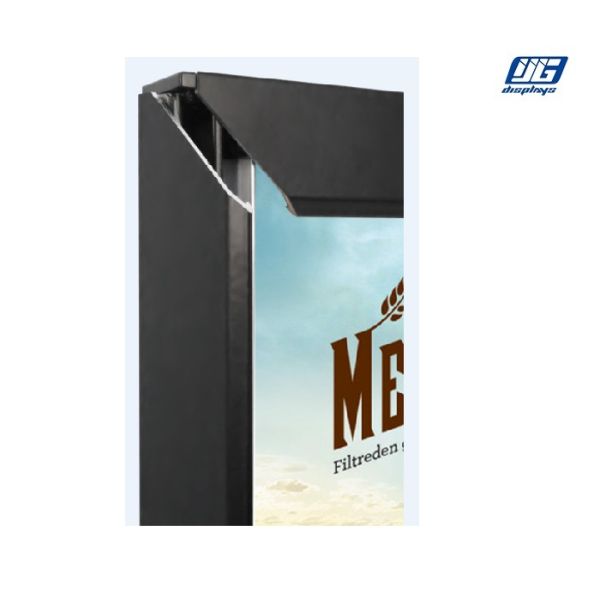

(2) Snap open for changing poster easily and quickly;
(3) Special corners design for safety protection;
(4) LM80 listed LEDs with 50000 hours lifetime;
(5) Anodized silver for black painted available;



Delivery:
By air or by sea is available.
