Original Three Seats Cab Light Up Fire Truck with 325KW Electric Primer Pump

Categories Light Fire Truck
Brand Name: ISUZU
Model Number: JDX5080TXFZM50
Certification: ISO9001/CCC
Place of Origin: shanghai,China
MOQ: 1 unit
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 units/year
Delivery Time: 90days after sign contract
Packaging Details: Exporting standard package or customized packing
G.V.W: 8150kg
Wheelbase: 3815mm
Max. speed: 95km/h
Drive type: 4x2 Drive
seat: 3
Max. power: 139 kw
Max. torque: 2100N•m
Key words: Light up fire truck
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

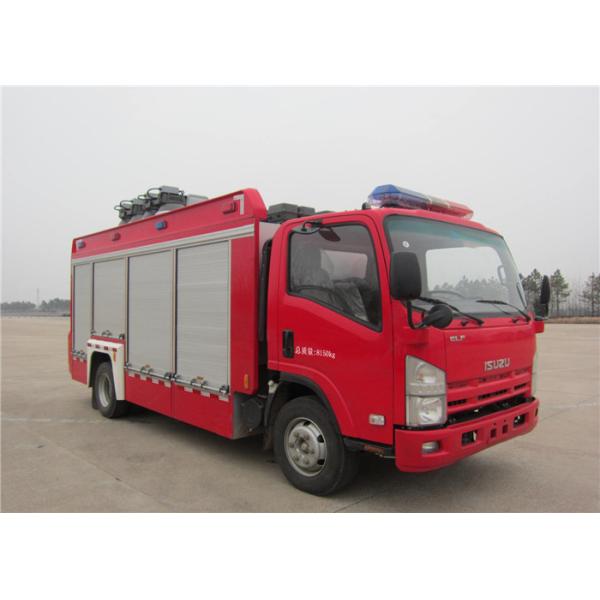

Original Three Seats Cab Light Up Fire Truck with 325KW Electric Primer Pump

Original Three Seats Cab Light Up Fire Truck with 325KW Electric Primer Pump


Vehicle

Dimension (L×W×H)6705×2200×3210mm
Gross weight8150kg
Complete vehicle shipping mass3925kg
Electric generator rated power50kw
Seat (inc. driver)3
Rated power139kw

Chassis

ManufacturerIsuzu
ModelQL11009KARY
Drive type4x2
CabOriginal X-P301
Wheelbase3815mm
Max. speed95km/h
Min. turning diameter<15
Engine typeIn-line four-cylinder, high pressure common rail, water inter-cooling
Model4HK1-TCG40
Max. power139kw
Max. torque510N•m
Emission standardChina IV
ClutchDiaphragm spring, monolithic, dry, hydraulic power assisted
Gearbox modelManual, 6 forward gear

Main lighting system

50kw electric generator, 2x8kw main lamp, pneumatic lifting poker, holder, controller, air compressor, power distribution system, auxiliary lighting.

Electric generator modelZD50TFY/4
Rated power50 kw
Rated current72.2A
Rated speed1500 r/min
Poles4
Rated line voltage400VAC
Rated phase voltage230VAC
Frequency50Hz


FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.


2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.


3. Q:What's your payment method?

A: T/T and L/C are preferred.


4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.


5. Q: How is the packing?

A:All the packing comply with exporting standard.


6. Q: What's the delivery time?

A: 1) 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

2) ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

3) European brand chassis 9 months upon receipt of advance deposit.


Any other questions, please do not hesitate to contact with us.
