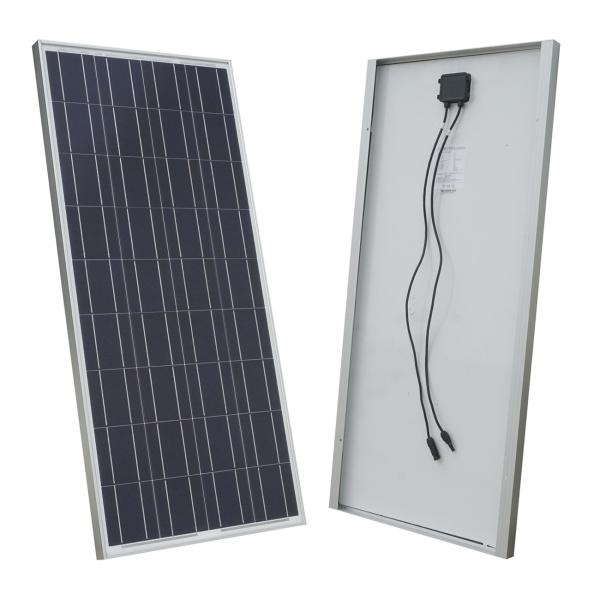

Polycrystalline Silicon Solar Panels / 160w Solar Panel Anodized Aluminum Alloy Frame

Categories Polycrystalline Solar Panel
Brand Name: OLLIN PV
Model Number: OL-36P-160
Certification: CE ROSH ISO
Place of Origin: zhejiang Pr, China
MOQ: one unit
Price: Negotiable
Supply Ability: 1500UNITS PER WEEK
Delivery Time: 20DAYS
Packaging Details: 0NE PCS PER CARTON OR 25PCS PER PALLET
cell material: Polycrystalline silicon
cell array: 4*9
cell color: blue
frame: anodized aluminum alloy
front sheet: high transmissions low iron tempered glass
Packing: 2pcs/CTN, 1700PCS/40hq container
Main market: Asia Africa Southeast Asia
Junction box: JB with 0.9m wire and connector
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Polycrystalline Silicon Solar Panels / 160w Solar Panel Anodized Aluminum Alloy Frame

12V battery use solar panel 160w Polycrystalline Solar Panel hotel heat water system


Key Features

160W solar panel has several uses including marine , dry camp , and other off-grid applications. Whether you are going camping in the mountains or taking a trip to the beach , this panel can be a great start to your off-grid system .

High modules conversion efficiency solar panel Withstand high wind (2400Pa) and snow loads (5400Pa) and Guaranteed Positive Output Tolerance (0-3%)
Excellent performance in low light environments

With advanced materials and equipment, our modules are designed and manufactured
in consistency with the IEC 61215:1993 standards which can guarantee the excellent electrical
performance and the product life of 25 years.


A film of PECVD is coated on the upper surface as anti-reflection measure, featuring deep blue color.


The modules are embedded with a sheet of imported strong transparent glass, two sheets
of long endurance EVA, a high efficiency monocrystalline cells sheet and a sheet of antihumidity
TPT for different weather conditions.


High quality anodized aluminum frame is suitable for strong wind resistance and mountain terrain.


A multifunction box ensure safe connection.


The exterior design and electrical performance of the module can meet the requirements of superior quality.


Products information


OLLIN-130P-160P
Polycrystalline Solar Module
Mechanical Data
Cell typePoly156mm*156mm
No.of cells36 in series(4*9)
Dimensions1480*680*40mm
Weight10kg
Electrical Data
Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5)
Power130WP150WP

160WP

Open circuit voltage(Voc)21.5V21.5v21.6V
Max. power voltage(Vmp)17.46V17.48V17.5V
Short circuit current(Isc)7.8A8.99A9.59A
Max. power current(Imp)7.2A8.3A8.89A
A grade power Tolerance± 3%
Max.system voltage1000V
Operating temp.—40℃~80℃
Temperature coefficients of Pmax-0.47% /℃
Temperature coefficients of Voc-0.38% /℃
Temperature coefficients of Isc+0.1% /℃


  • Long lifespan: 25Years lifetime guarantee, 12years workshop warranty. 90% output in first 10years. 85% output in next 15years.If module fail during warranty period, please contact local dealer, and provide the warranty card to replace the products.
  • Solar panels are withstand extreme working condition (from -40°C to 120°C)
  • Grade A solar panels rated by CE.
  • High transformation efficiency solar panels
  • New UV reflector protected Layer
  • Maintenance free solar panels
  • No exposed metal parts
  • Custom-made available
  • 100% EL TEST before and after laminator for each solar panels
  • Bankable solar panels in South America, Africa, UAE, India

Company Profile:


We are a professional manufacturer specialized in Solar Panels with more than 8 years of experience. Our main products include: Mono and Poly Solar Panel, Solar power system, Solar charger controller, Inverters, Solar LED lights, and so on.

For any details, please don't hesitate to contact me any time!


Why choose us?

Advantages we have:


A: Experienced and sophisticated light products supplier.
B: Professional design team and sales department for your any requirements.
C: Alibaba golden supplier, factory recognized by CE, ISO9001, RoHS.
D: 7/24 service for you. All the question will be dealt within 24 hours.


Benefits you get:


A: Stable quality----Using the best material and technology.
B: Lower price----Not the cheapest but the lowest in the same quality products.
C: Good service----Satisfying service before and after service.
D: Delivery time----20-30days for mass production.
