| Categories | Polycrystalline Solar Panel |
|---|---|
| Brand Name: | OLLIN PV |
| Model Number: | OL-36p-40w |
| Certification: | CE |
| Place of Origin: | zhejiang Pr. China |
| MOQ: | 1 piece/unit |
| Price: | Negotiable |
| Supply Ability: | 2300PCS PER WEEK |
| Delivery Time: | 20DAYS |
| Packaging Details: | 4PC per carton, |
| Material: | polycrystalline silicon |
| Color: | dark blue |
| size: | 670*430*25mm |
| Front Glass: | 3.2mm high transmissiontempered glass |
| Frame: | Anodized Aluninium Alloy |
| connecter: | Alligator clip |
| Company Info. |
| Yuyao Ollin Photovoltaic Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

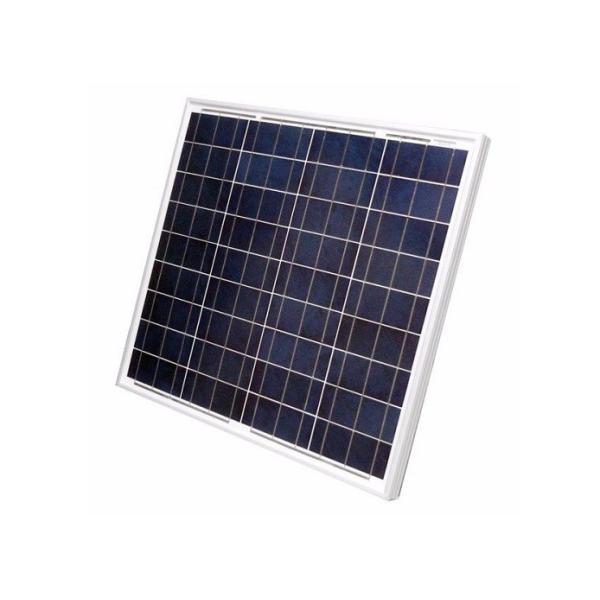

Solar street light Solar Lighting for Parking lots 40W Polycrystalline solar panel powering solar tracking device
Features
1) Module efficiency : 16%
2) Warranty : 12 years/90%,25 years/80%, guaranteed 10years material and workmanship
3) Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs reliably
4) Excellent performance under low light conditions
5) Module certified to wind and snow loads
6) Anti-reflective,hydrophobic layer with light absorption and minimal surface dust
7) Rich selection of solar power
Electrical Characteristics
| ITEM NO | 40W/18V |
| MONO or POLY | poly |
| Maximum power (Wp) | 40wp |
| Maximum power voltage (V) | 18 |
| Maximum power current (A) | 2.22 |
| Open circuit voltage (V) | 21.6 |
| Short circuit current (A) | 2.39 |
| Number of cells (Pcs) | 18 |
| Size of module (mm) | 670*430*25 |
| Brand Name of Solar Cells | HT |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
| Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C |
| Temperature Range | -40°C~+85°C |
| Tolerance Wattage (e.g. +/-5%) | +/-5% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 3.5 |
| Length of Cables (mm) | |
| Cell Efficiency (%) | more than13% |
| Module Efficiency (%) | more than 8% |
| Output tolerance (%) | +/-5% |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 100mw/cm2 25°C |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 4PCS/ CTN |
| Unit Price |

Company Profile:
Continuously manufacturing PV modules since 2008, OLLIN-PV is one of the most experienced module
makers in the industry. More than 8 years of operating data support OLLIN-PV’s reputation as the best
overall quality, performance, and value for solar investors. The cutting-edge SN-series leads the industry
again in advanced design, construction, and performance. The SN-series is the ideal module for any system
size in any given environment. With the quality to last the lifetime of the PV system, OLLIN-PV’s SN-series
provides the confidence and assurance to each and every one of our customers.
WHY CHOOSE US?
1. Excellent efficiency, Easy Installation & Maintenance
2. Outstanding performance in Low-Light
3. High transparent, Low-Iron, Tempered Glass
4. Ability to withstand High Wind-Pressure and Snow-Load
5. Advanced module sealing technology to eliminate leakage and frame deformation
6. Ability to meet customized customer's specific requirements
|
|
