High Speed Equipment Cooling Fans SUNON 6025 12V Ball Bearing 60 X 60 X 25mm Size

SUNON 6025 12V ball bearing high speed cooling fan 60mm X 60mm X 25mm

1 . Product Desription

Material Frame:----------------------------------- Aluminum, Impeller: Plastic (Flammability: UL 94V-1) ・

Expected life …………………………………… See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage)

Motor protection function ………………… Locked rotor burnout protection, Reverse polarity protection For details, please refer to p. 529. ・

Dielectric strength …………………………… 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame) ・

Insulation resistance ………………………… 10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame) ・

Sound pressure level (SPL) ……………… At 1 m away from the air inlet ・

Storage temperature ……………………… -40 to +85˚C (Non-condensing) ・

Lead wire ……………………………………… Red Black Sensor Yellow Control Brown ・

Mass ……………………………………………… 100 g

2 Features

• Compact
• Maintenance-fee
• Easy to mount
• Low noise level
• Little vibration
• Reliable movemen

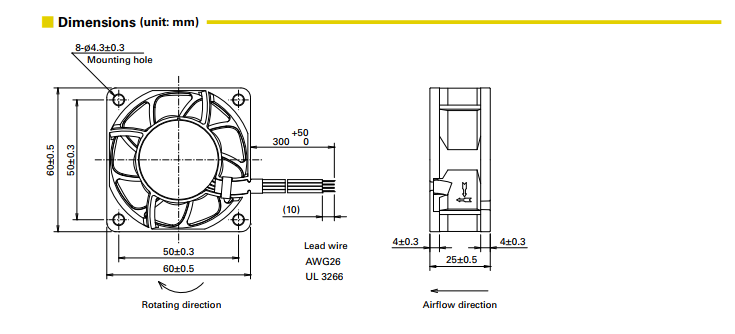

3 . Dimensions

4. Factory

Shenzhen Topfan - China Development Technology Co . , Ltd , founded in 1996 in Shenzhen China , is a professional manufacturer on dc brushless fans and ac fans . Products are CE , RoHS certificated and good sellers both at home and abroad , including Europe , North America , Asia ( Korea and India ) etc .

Based on mutual benefit and development , we always make our biggest efforts to do everything better for our customers , and we have built up a good reputation among our customers .

> > If you want another rpm or voltage or special functionm please contact with us directly.

> > Products have a detail in the approval sheet .

> > Specifications are subject to change without notice

> > The size , voltage , power & speed can be made according to your requirements !

> > could be made with waterproof function

> > We are professional manufacturer of cooling fans & motors for 11 years ' experience

> > On time delivery

We offer 30 , 000 hours warranty for sleeve bearing fans , 50 , 000 hours

warranty for ball bearing fans .

We can also provide fans with longer use times

Any more information,pls feel free to contact Damon
