| Categories | Gloss Measurement Instruments |
|---|---|
| Brand Name: | 3nh |
| Model Number: | YG60 |
| Certification: | CE / ROHS / FCC / ISO9001:2015,TUV |
| Place of Origin: | P.R.China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal, Western Union |
| Supply Ability: | 5000pcs per month |
| Delivery Time: | 1 working day |
| Packaging Details: | Packed in hard nylon box firstly, and then reinforced with carton box for outer packing |
| Measuring Area: | 60°:9X15 |
| Division Value: | 0.1GU |
| Language: | Chinese & English |
| Size: | Model YG60 Accuracy gloss meter Measuring Angle 60° Measuring Area 60°:9X15 Measuring Range 60°: 0~1000GU Division Value 0.1GU Measuring Modes Basic mode; Statistic mode; Continuous mode; QC mode Measuring Time 0.5S Repeatability 0~100GU:±0.2GU ; 100~10 |
| Power Supply: | 1pc dry-cell battery(can measure 10000 times) or use USB Charge |
| Standard Accessories: | USB cable, user manual, calibration plate, QC software |

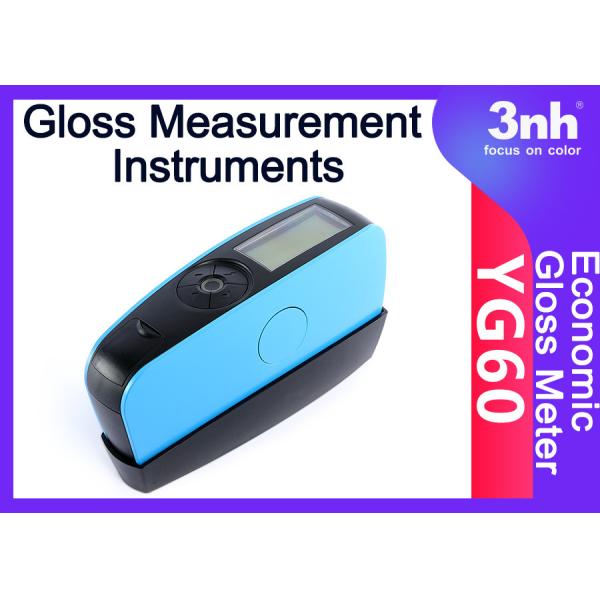

Exterior Wall Paint Gloss Measurement Instruments YG60 0~1000GU With Auto - Calibration gloss tester
3nh new product accurate 60° angle Gloss Meter YG60 configurated with Alkaline Battery
Product Introduction
YG60 60°Accurate Gloss Meter is independently developed by Shenzhen
3nh Technology Co., Ltd with independent intellectual property,
manufactured according to international standard ISO2813 and China
standard GB/T 9754. With auto-calibration and high-end QC software,
it can meet the first grade requirements of JJG696.
YG series gloss meter also features with USB/RS-232 interface and
Blutooth 2.1 dual mode.
Product Features
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’
requirements.
Specifications
| Model | YG60 Accuracy gloss meter |
| Measuring Angle | 60° |
| Measuring Area | 60°:9X15 |
| Measuring Range | 60°: 0~1000GU |
| Division Value | 0.1GU |
| Measuring Modes | Basic mode; Statistic mode; Continuous mode; QC mode |
| Measuring Time | 0.5S |
| Repeatability | 0~100GU:±0.2GU ; |
| 100~1000GU:±0.2%GU | |
| Accurate | Conform with JJG696 first grade requirements of gloss meter |
| Auto Power-off Time | Within 30s-120s |
| Long-time Calibration | Automatically check and made the calibration |
| Language | Chinese & English |
| Storage | 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000) |
| Display | 2.3 inch white and black screen |
| Size | 160*52*84mm |
| Weight | About 300g |
| Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge |
| Interface | USB |
| PC Software | GQC6 QC software can printing testing report and with more extended functions |
| Operation Temperature Range | 0-40℃(32-104° F) |
| Storage Temperature Range | (-20-50℃)(-4-122° F) |
| Humidity Range | < 85% RH, without condensation |
| Standard Accessories | USB cable, user manual, calibration plate, QC software |
| Optional Accessories | Miniature printer |
Used In
Widely used in the filed of
paints,coating,plastics,ink,rubber,printing,paper, glass, handware,
ceramic, marble etc.

About Us
Shenzhen Threenh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.After years of intensice research, 3nh has launched NS series spectrophotometer and NH, NR series colorimeter, ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.

3nh cherishes talents, focuses on talents. Company brings together many of high-level, high educated professionals. Among them, undergraduate academic staffs of the total number of company accounted for more than 80%; postgraduate staffs of the total number of company accounted for 30%. It involves the fields of photometry, electronic circuit, embedded system, photoelectric detection, mechanical structure design, optical design, application software, lighting technology electronic commerce and internet. 3nh team has strong capability to design, develop and produce on its own. The company has a large number of innovation patents, core technologies and intellectual property rights of 3nh products.

3nh adheres to “people-oriented, customer first, technological innovation, sustainable development” business philosophy to meet customer demand continuously, to create value for customers and to achieve win-win situation and common development.

FAQ
1: Q: Is your company accept customization?
A: We accept OEM/ ODM. Any color and any logo is welcome if placed
at least 10pcs.
2: Q:Does your products have warranty?
A: YES, We offer 1 year warranty. Our policy: Is there any quality
problem, First, send the defective machine to us and you bear the
freight. Second, we send back to you free after fixed.
3: Q: After an order placed, when to deliver?
A: It depends on whether we are in stock or not. If we are,
generally we can arrange shipment in 1 days after payment. If not,
it will be decided by factory production.
4: Q: How to place an order?
A: a: send us an inquiry.
b: confirm your wanted products
c: confirm the price and freight and other details
d: finish the payment
e: we arrange the shipment
f: you got your products
