Aluminum Weld Base BIMetallic Insulation Anchor Pins for Ship - building 3mmx100mm

Aluminum Weld Base BIMetallic Insulation pins for Ship-building 3mmx100mm

Aluminum Weld Base BIMetallic Insulation pins The studs and raw material specifications mentioned conform with EN ISO 13918

and EN ISO 14555.As a manufacturer, we are able to offering not only standard Weld Studs, but also special design studs and pins.

If you do not find the specific inform-ation you are looking for, please contact us.
Other materials are available on request.
Self-Locking washers (clips) are available in a variety of sizes, shapes and materials.

1. specification of Aluminum Weld Base BIMetallic Insulation pins

10 Ga. Bi-Metallic Pins
Material	Pin Diameter
Pin...Stainless Steel,Base...Aluminum	10 Ga, 0.135 (3.4mm)
length	Part Number
1.1/2"	2372-1048
2.0	2372-1064
2.1/2	2372-1080
3.0"	2372-1096
3.1/2	2372-10112
4"	2372-10128
4.1/2"	2372-10144
5"	2372-10160
6"	2372-10192

Annular Groove (Navy) Bi-Metallic Pins
Material	Pin Diameter
Pin...stainless steel Base...aluminum	Annular Groove 0.175 - 0.180" (4.4 - 4.6mm)
Length	Part Number
7/8"	2382-0628
1.0"	2382-0632
1.7/8"	2382-0660
2.7/8"	2382-0692
3.7/8"	2382-06124

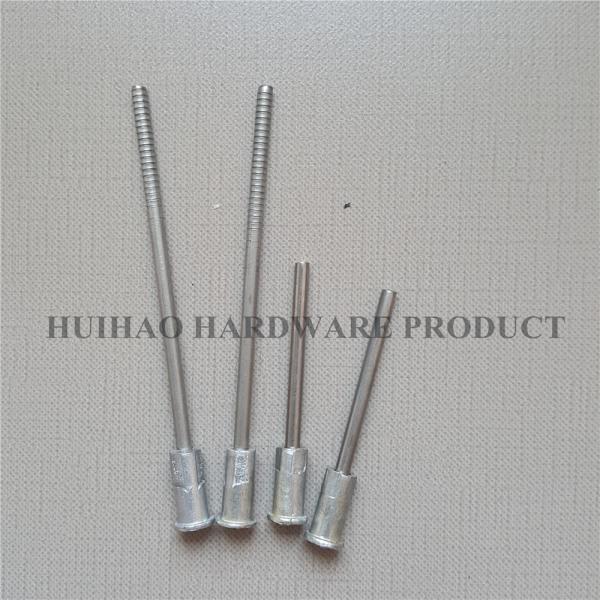

2. images of Aluminum Weld Base BIMetallic Insulation pins

Parts - self locking washers

Round self locking washers are used in conjunction with weld pins, insulation anchors and lacing anchors to fasten insulation in

place, simply press with self locking washer onto the pin up to the insulation until the desired position is reached, then clip off or bend

over the remaining portion of pin for a permanent attachment Round self locking washers are available as a matter of design or appli-

cation preference, The domed, multi-lanced hole design provides for ease of locating washer on pin and positive locking. Washers are

manufactured with a beveled edge to prevent the washer from cutting into the insulation facing.

Material	Shape	Diameter	Pin Diameter	Thickness	Package
Aluminum, Galvanized Steel	Round	22mm	10Ga, 12Ga, 14Ga	0.35mm	1000pcs/carton
Aluminum, Galvanized Steel	Round	28mm	10Ga, 12Ga, 14Ga	0.35mm	1000pcs/carton
Aluminum, Galvanized Steel	Round	30mm	10Ga, 12Ga, 14Ga	0.35mm	1000pcs/carton
Aluminum, Galvanized Steel	Round	35mm	10Ga, 12Ga, 14Ga	0.35mm	1000pcs/carton
Aluminum, Galvanized Steel	Round	38mm	10Ga, 12Ga, 14Ga	0.35mm	1000pcs/carton
Other size also could be customed.

Our production includes a full line of insulation fasteners:
Insulation fixing pins,Self adhesive insulation pins, Insulation hangers, Insulation anchors, Lacing anchor, Lacing ring
Cup head weld pins, Perforated base pins, Quilting pins&Duct liner pins, CD weld pins, Self locking washers & dome caps Insulation

Impaling Clips, drive pins

Certifications

FAQ

1. Your inquiry will be replied within 24hours
2. Well-trained and experienced staffs to answer all your inquiries.
3. All our products have 1-year warranties.
4. Competitive prices based on same quality.
5. Guarantee samples quality same as mass production quality.
