Home > Aviation Obstruction Lights >

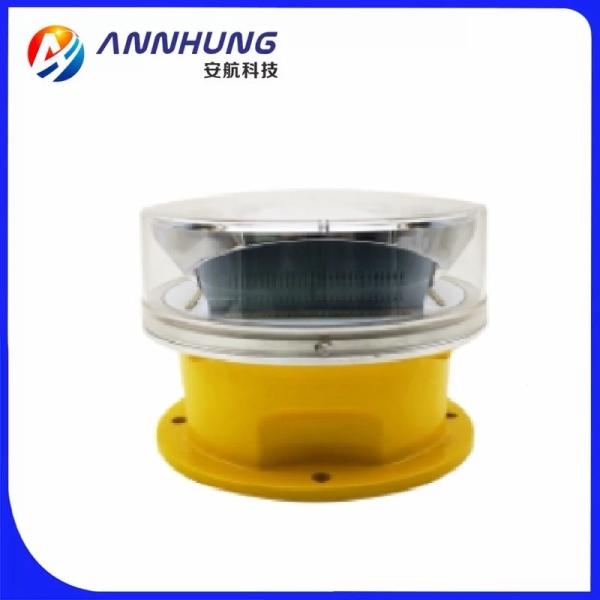

Steady Burning LED Aviation Obstruction Light Waterproof With FAA / ICAO Standard

Categories LED Aviation Obstruction Light
Brand Name: ANNHUNG
Model Number: AH-MI-C2
Certification: ICAO, FCC, FAA, CE
Place of Origin: Guangdong, China
MOQ: 1
Price: 1-597USD/PC
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000Pieces for one month
Packaging Details: 1 piece/box
Light Source: CREE high intensity LED
Available Colors: Red
Intensity(cd): 2000cd±25%
Horizontal Output(degrees): 360
Vertical Divergence(degrees): 3
Flash Characteristics: Steady burning(Fixed)
Operation Mode: Dusk-to-dawn Automatically as standard
LED Life Experience(hours): >100,000
Operating Voltage: DC(12-48VDC) or AC(110-240VAC)
Power(W): 45
Body Material: Polycarbonate (High borosilicate glass
Base Material: Powder-coated Die-casting aluminum
Weight(kg): 4
Product Life Expectancy: 5 years Plus
Waterproof: IP66
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Steady Burning LED Aviation Obstruction Light Waterproof With FAA / ICAO Standard

Steady Burning LED Aviation Obstruction Light Waterproof With FAA / ICAO Standard


This Medium-intensity Type B LED Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters.


Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed lens converging light to very small vertical divergence 3° make it totally compliance with ICAO standard.


Product Description
Light SourceCREE high intensity LED
Available ColorsRed
Intensity(cd)2000cd±25%
Horizontal Output(degrees)360
Vertical Divergence(degrees)3
Flash CharacteristicsSteady burning(Fixed)
Operation ModeDusk-to-dawn Automatically as standard.
LED Life Experience(hours)>100,000
Circuit ProtectionIntegrated
Body MaterialPolycarbonate (High borosilicate glass
as optional)
Base MaterialPowder-coated Die-casting aluminum
Mounting190×190×θ12

Compliance


l ICAO Annex 14 Volume 1,'Aerodrome Design and Operations Forth edition July 2004,table6.3

l FAA L-864


Product Application

  • AH-MI-C2 medium-intensity type C LED avation obstrution light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 105-150meter, and most time work with low intensity lights & medium intensity type B light installed on the lower place.



Packaging & Shipping

Packaging: Paper carton 1-9 piece/box.

Delivery: In 2-10 days after payment.


-750


After-sales service


1. 2 years full warranty, 5 years maintenance since the purchasing date.

2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.

3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.


Steady Burning LED Aviation Obstruction Light Waterproof With FAA / ICAO Standard

Catalog download: download AH-MI-C2 LED Medium-intensity Type C Avia...
