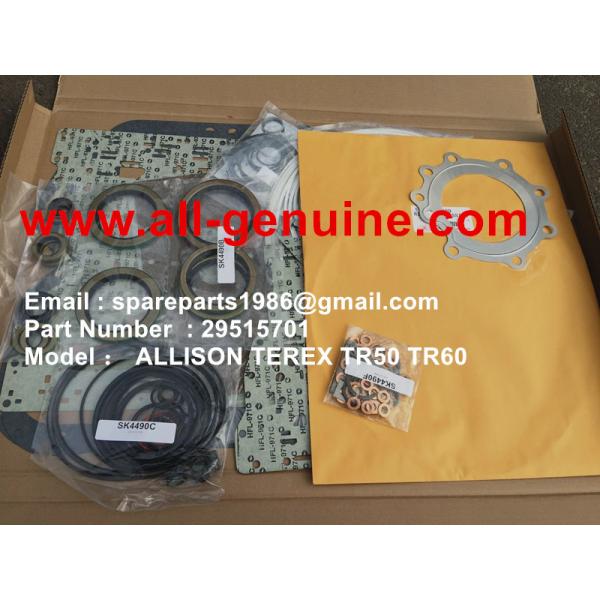

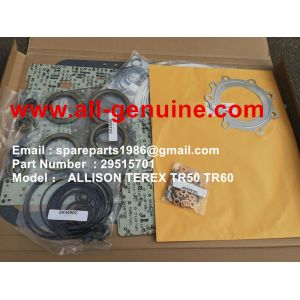

29515701 ALLISON OVERHAUL REPAIR KIT NHL DUMP TRUCK

Terex earthmoving equipment parts

NC NO. QTY PART NO. DESCRIPTION
001 002 09190982 STARP
002 016 00108580 LOCKWASHER
003 008 00102635 NUT
A 004 001 15046572 PAD
005 001 09183501 ELBOW
009 001 00274248 ·O RING
007 001 20019471 HOSE
008 001 09183509 ELBOW ASSY
009 001 00274248 ·O RING
010
011 001 15042615 TEE
012 001 00274249 ·O RING
013 001 9410334 TEE
014 001 15004045 HOSE ASSY
015 002 15042626 HOSE ASSY
016 001 09183205 PLUG
017 001 00274253 ·O RING
018 004 00274208 LOCKNUT
019 001 09403369 COVER
020 002 00179847 BOLT
021 002 15229547 TEE ASSY
022 001 00274247 ·O RING
023 002 15004049 HOSE
024 006 09183500 ELBOW
TABLE NO.
NC NO. QTY PART NO. DESCRIPTION
025 001 20019259 ELBOW
026 001 15004044 HOSE ASSY
027 001 00142269 BUSHING
028 001 09402865 ELBOW
029 001 20019378 HOSE ASSY
030 001 20019486 HOSE ASSY
031 004 09409985 FLANGE-SPILT
032 002 09410968 O RING
033 008 00179885 BOLT
034 008 00103329 LOCK WASHER
035 001 20019487 HOSE
036 001 09122739 HOSE
037 001 09235892 CONNECTOR-PIEZOMETRIC
038 002 09183225 CONNECTOR
039 001 00274247 ·O RING
040 004 09409982 FLANGE-SPLIT
041 002 09410968 O RING
042 008 00179841 BOLT
043 001 15042614 HOSE
044 002 09202577 CONNECTOR ASSY
045 001 00274247 ·O RING
046 002 00186284 BOLT
047
048 001 15230575 SWITCH-PRESSURE
001 001 15017165 FLANGE AND CONNECTOR
002 001 09268994 AIR VENT
003 001 00444613 PLUG
