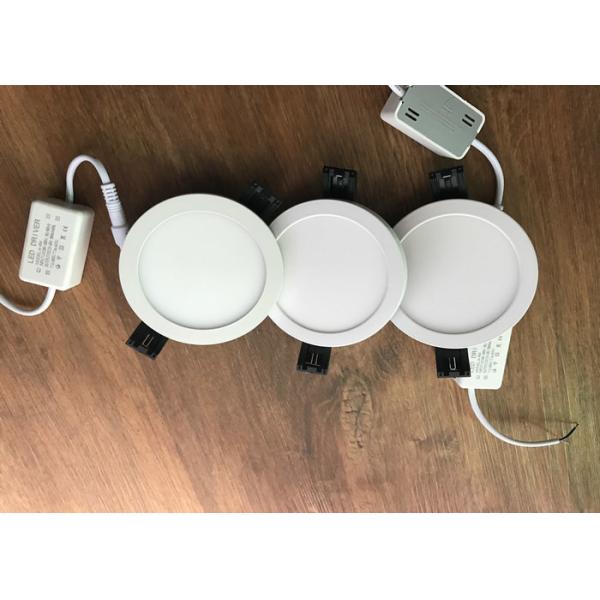

LED Slim Panel Light 6w 90mm Recessed Mounted Warm White IP20 PMMA LGP

LED Slim Panel Light 6w 90mm Recessed Mounted Warm White IP20 PMMA LGP

1. Features:

A. This LED Panel Light housing color is white, material is die-casting material. The housing color also can be electroplating color, such as gold, black, sliver, bronze, nickel and chrome. If you like this special electroplating color housing, please kindly inquiry us, it can be customized if the quantity is 500pcs.

B. LED Driver is Isolated IC Constant Current Wide Voltage AC85-285V, which is more safer. provent from

short circuit. It is very intelligent and stable project. Led driver is the most important part of led slim panel light, if the lamp is failure, very likely it is the driver's problem. So our company use high quality led driver to keep the long lifespan.

C. LED Chip is from Taiwan Epistar, it is SMD2835. The led light souce lumen is 22-24LM, power is 0.2w,

high brightness with low decay. It brings high efficiency of our slim led panel light, up to 90LM for 24W.

D. Another important advantages of this led panel light is that the housing edge is very narrow, it makes the lighting area is bigger than old panel light, the lighting area is more than 90%, then lighting brightness is higher than old led panel light.

E. The Light Guide Plate (LGP) use PMMA material, lighting transmittance is up to 92%, and the light is very soft and uniform, with out dark area. and good for eyes.

2. Specification:

Model: AD-EPR-PAL-6W

Input Voltage: AC85-265V

Power factor: PF≧0.9

Driver :Smart IC Isolated constant current

Power: 6W

LED Brand: Taiwan Epistar

LED Chip: SMD2835

LED Type: 0.2W

LED Lumen: 24-26LM

LED Quantity:30pcs

CCT: 3000K / 4000K /6000K

Lumen: 500LM

Color Rendering Index: 80RA

Size(mm): φ90*H8mm

Rated lifetime: 50.000 hours

Housing Color: Powder painted white color

Housing Material: Aluminum

3. Light Guide Plate(LGP) Information:

Light guide plate(LGP) brand: Japan Mitsubishi

LGP thinkness: 3mm

LGP technology: Dot Laser

LGP light transmittance: 90%

LGP Material: PMMA

Liffe Span: 50,000 hours

4. Quick Details:

Shape	Round
Beam angle	120°
IP rank	IP44
Insulation grade	II
Energy-saving level	A PLUS
Operation temperature	-20℃~+60℃
Lighting Distance	1-4meters
Mounting height	2-3meters
Place of Origin	China
Approval mark	CE RoHs
Warranty	2 years

5. Advantages:

(1) No flash, strobe and glare

(2) 120 degree full light angle high lumen

(3) Die-casting aluminum body with strip pattern provide better effect for heat trasmitting

(4) CE RoHS SAA TUV

(5) High luminous flux can reach up to100lm/W.

(6) Wattge type: 6W / 12W / 18W / 24W

(7) Housing Color: white, black, bronze, golden, sliver

(8) Low power consumption

(9) Dimmable type:dimmable/non-dimmable.

6. Application:

A. Conference / meeting room

B. Residential / Institution Buildings

C. Living Room / Dinning Room

D. Supermaket / Shop

7. Packing:

Packing Size: 65*20*34cm

Packing Qty: 100pcs

Net Weight: 13kg

Gross Weight: 15kg

8. Trade Term:

Payment method: Paypal/TT/Western Union

Payment term: 30% deposit after order confirmation, 70% before shipment

Shipment: sample by DHL(3-4days), bulk order by sea(about 30days)

MOQ: 100pcs
Price: EXW factory

Delivery time: 3 days for samples, 7-15days for bulk order
