1B5070 Industrial Air Spring Firestone W01-358-6994 Contitech FS 330-11 647 Tiangle 6374 / 4467

1B5070 To Firestone W01-358-6994 Contitech FS 330-11 647 Tiangle 6374 / 4467

Specifications and Technical Data

Contitech Part Number:FS 330-11 647 / FS330-11 647 / FS33011 647

Loading Capacity at 20 psig: 1,300 lbsf

Loading Capacity at 60 psig: 3,900 lbsf

Loading Capacity at 90 psig: 5,850 lbsf

Operating Temperature: 57Cº to -54Cº

Compressed Height: 2.12

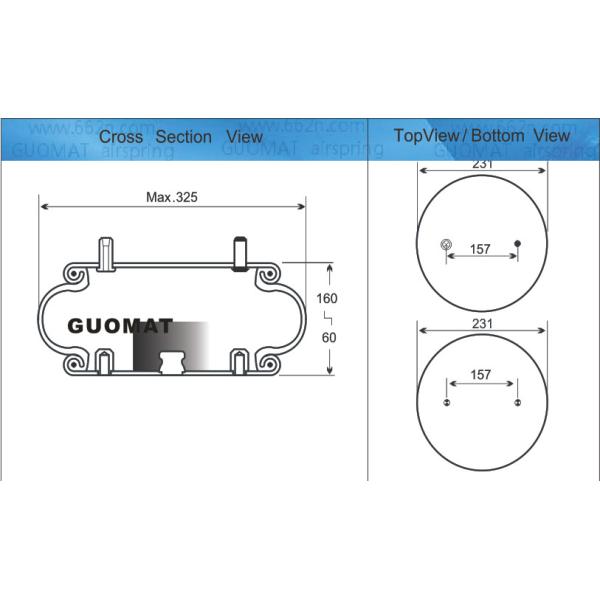

Top Cover Plate Diameter: 9.00 inches / 231mm

Bottom Cover Plate Diameter: 9.00 inches / 231mm

Screw Center Distance : 157 mm

Distance Gas Hole Between Nut 66 mm

Top Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

Rubber Bellows MAX Diameter(Maximum Diameter): 12.9 inches / 325 mm

Rubber Bellows Natural Diameter 300 mm

The Working Stroke : MAX 160 mm to MIN 60 mm

Compressed Height: 2.12 inches / 105 mm

Gas Hole / Air inlet : 1/4 NPT

Compressed height: 2.70 inches
Top plate number: 3235
Top plate width: 9.00 inches
Piston No.: 3183
Piston width: 9.00 inches
Firestone bellows number: 19
Triangle part number: 4467
Number of triangular bellows: 6374
Note: Texas capabilities
Manufacturer Part Number: W01-358-6994

OEM Original Equipment Manufacturer:

Tiangle 6374

Tiangle 4467

The usal kinds of Single Convolution Air Actuator

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
