Small UV Stainless Steel Laser Marking Equipment Durable PEDB-400C

Categories Laser Marking Machine
Brand Name: Perfect Laser
Model Number: PEDB-400C
Certification: CE / ISO / FDA SGS / TUV
Place of Origin: China
MOQ: 1 Unit
Price: Negotiable
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 1000 Unit per Month
Delivery Time: 7-10 Days
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Operating temperature:: 0~40℃
Continuous working time:: ≥16h
Cooling Mode: Air Cooling
After-Sales Service Provided: Engineers Service Overseas
Operating voltage: 220V
Max. Power consumption: 600W
Nominal average output power: 10W-20W
Scanning Speed: 0-7000mm/s
Marking Speed: 0-5000mm/s
Standard Working Area: 110*110mm
Laser Power: 10w, 20W, 30W, 50w
IPG Series: Pulsed, High Energy Ytterbium Fiber Lasers
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

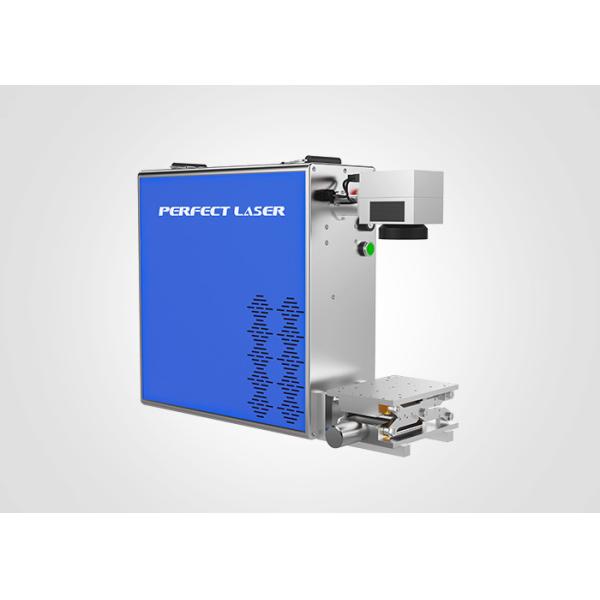

Small UV Stainless Steel Laser Marking Equipment Durable PEDB-400C


Small UV Stainless Steel Laser Engraving Machine , CNC Metal Marking Machine Durable (Blue)


Description


If you have special needs to the smallest & finest laser beam and character, the Portable Fiber Laser Marking Maching must be the best choice for you.


Product Features


1.Marking Effect:


The laser beam of the CNC Laser Marking Machine is fine and thin.

The portable fiber laser marker from Perfect Laser can provide you with better marking effect than any other brands' portable fiber laser marking machine.

We are especially good at the smallest character marking, such as mark on IC chip,etc.


2. Deep Marking:


Perfect Laser’s portable fiber laser marking machine can make deep marking up to 2.0mm on stainless steel or aluminum. While YAG and Diode marking only could mark range from 0.2mm to 0.3mm.



Specification

Model No.PEDB-400APEDB-400BPEDB-400CPEDB-400D
TypePortableDesktopColorfulFloor Stand
ComputerNot includes PCIncludes PC
Laser Source
IPG SeriesPulsed, High Energy Ytterbium Fiber Lasers
Mode of operationPulsed
Polarizationrandom
Nominal average output power10W - 20W
Central emission wavelength:1060-1070 nm ,Q-switched operation Output power adjustment range
10%-100%
Emission Bandwidth
(FWHM)
<10 nm
Long-term average power instability<5%
Pulse width, (FWHM)100 ns
Laser switching ON time180 μsec
Laser switching OFF time180 μsec
Pulse Repetition Rate* kHz20-80 kHz
Energy per pulse (PRR = 20 kHz)0.95 mJ
Typical beam quality, M2<1.8
Output fiber delivery length3m
Operating voltage220V
Max. Power consumption600W
Net Dimensions70*20*50cm58*22*50cm
80*38*72cm
70*20*50cm143*62*101cm
Net Weight44 kgs53 kgs44 kgs130 kgs
Gross Weight60 kgs70 kgs60 kgs200 kgs
Laser system
Scanning Speed0-7000mm/s
Marking Speed0-5000mm/s
Marking size110mm×110mm (F-theta 160)
Spot size≤ 40 micron (F-theta 160)
Cooling unitAir cooled
Pilot laser650nm diode laser, visible red light for marking guide
Continuous working time≥16h
Humidity45~85% (no condensation)
Operating temperature0~40℃
Control unitsLaser Mark (English Version)


Optional Item


1. Rotary system for cylinder product
2. Safety glass
3. Online flying transfer belt system(includes the software)


Sample Show





Packaging & Delivery


1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Competitive Advantages


1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Excellent after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
