Plain Dutch Weave 40×200 Filter Cloth With 0.18X0.135mm Stainless Steel Wire

Stainless Steel Plain Dutch Weave Wire Mesh

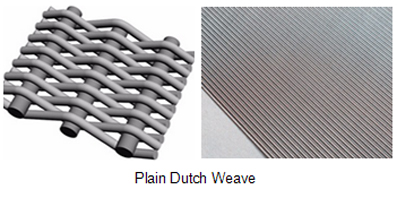

Plain dutch weave wire cloth is woven using two sizes of wire. Smaller wires, as small as micron size, are used in the shute direction and are woven with a larger warp wire.

The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The mainly used of this wire cloth are filtration and separation of liquid.

40X200 mesh plain dutch weave stainless steel wire mesh. Using 0.18X0.135mm diameter stainless steel wire, by plain dutch weaving, woven 40X200 mesh opening for 63μm liquid or gas filter material. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong.

Characteristics:

Warp wire has bigger dia than shute wire;
Shute wires are possibly bound close to each other;
High precision and flow rate;

High accuracy;
Nominal or no pressure loss while filtration;
Supreme filtration surface;
More stable than square and rectangular wire mesh;

It will filter more solid particle in comparison with square hole and rectangular hole;

Every weft wire tight with each other;

Features:

Very thick and Greater strength.
Fine openings for better filtration efficiency and quality.
Greater mechanical stability.
Used as a filter cloth.
Precise tolerances.

Material:

200 series: 201, 202, 205;

300 series: 301, 302, 304, 304L, 309, 309S, 310, 310S, 316, 316L, 321;

400 series: 410, 420, 430.

Weaving methods: Plain Dutch Weave

Application:
Dutch Weave Wire Mesh used primarily in fluid, vacuum, and pressure filtration of liquids and gases Plain dutch woven wire mesh is used for separation of solids and clear filtration of liquids, as in the cleaning of fuels or hydraulic liquids, or in water treatment in chemical, mining industry.

Specifications

Roll Width: 0.2m-1.6m

Roll Length: 10m, 20m, 30m; 100ft
