| Categories | Telephone Line Cable |
|---|---|
| Brand Name: | BLG / OEM / ODM |
| Model Number: | TELEPHONE LINE CABLE |
| Certification: | CE / ROHS / ISO |
| Place of Origin: | CHINA |
| MOQ: | 10000 Meters |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2 containers per week |
| Delivery Time: | 7~10 working days |
| Packaging Details: | 1000m / reel, wooden reel |
| Item name: | Telephone cable |
| Twisted Pairs Number: | 20 pairs |
| Conduct Material: | Solid Copper |
| Wire Guage: | 24AWG(0.5MM) |
| Jacket Material: | PVC / LSZH |
| Length: | opitional |

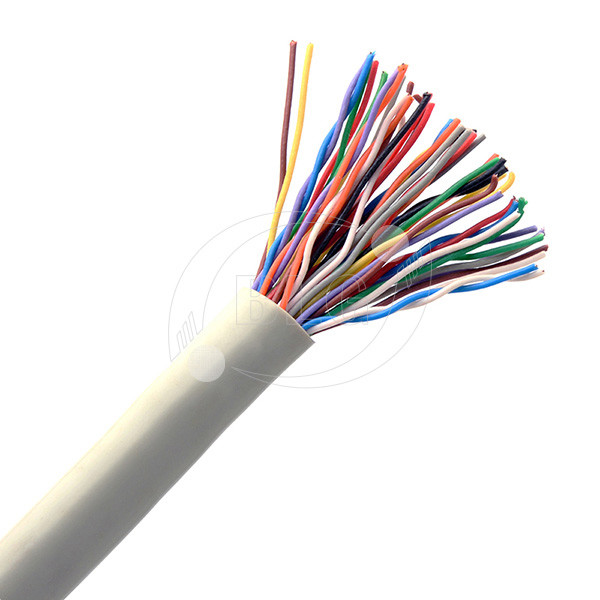

Cat3 20 Pair Telephone Cable Solid 24AWG Copper Communication Cable Waterprooft
Telephone Line Cable Product Description
| Structure | Construction | UTP |
| Number of Pairs | 20 Pair | |
| AWG | 24AWG | |
| Conductor Dimension (mm) | 0.50 | |
| Solid or Stranded; Bare or Tinned | Solid Bare Copper | |
| Insulation | insulation material | HDPE |
| Insulation Dimension [mm) | 0.88 | |
| Number Colour (Ring or Strip marking) | / | |
| Cross Filler | No | |
| Shield | IndividuaISinleld & Material | No |
| Outer Shield & Material | No | |
| Drain Wire | No | |
| Outer Jacket | Outer Jacket Material | PVC or (LSZH) |
| Outer Jacket Ripcord | Based On Customer Requirements | |
| Overall Nominal Diameter (mm) | Per Customer request |
| MAX. Matual Capacitance @ kHz | ≤5.6 nF/100M |
| MAX. Capacitance unbalance (pF/ 100m) | ≤330pF /100M(per TIA/EIA-568B.2) |
| Nominal Velocity of Propagation | 65% |
| Max. Delay Skew (ns/100m) | 45ns/100M |
| Max. Conductor DC Resistance @ 20 Deg. C | 9.38Ω /100M(24AWG) |
| Max. DC Resistance unbalance @ 20 Deg. C | ≤5%(per TIA/EIA-568B.2),≤3%(per IEC61156-2) |
| Mni. Insulation resistance (MΩ/ k m) | 1500 |
| Max. Operating Voltage-UL | 300V |
| Operating Temp. Range | -20~70°C |
| Bulk Cable Weight (KG) | 340KG |
| Max. Recommended PullingTension | - |
| Min. Bend Radius (Install) | 92mm |
| Flame Test | CMR,CM |
Telephone Line Cable Product Show:
|
