| Brand Name: | EXCAR |
| Model Number: | A1S4+2 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | Negotiate |
| Payment Terms: | D/A, D/P, Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 300 units per month |
| Delivery Time: | 7 days after received your deposit |
| Packaging Details: | LCL shipment Packing:roof move-off packing, steel frame , carton paper cover. |
| Transaxle: | Italy graziano alex |
| Warranty: | 1 year |
| Production time: | 7-15 days after deposit paid |
| Body color: | White or based on panton number |
| Brand: | EXCAR |
| Motor: | ADC 48V 3.7KW |
| Chassis: | Aluminium Chassis |
| F/R Track: | 860 / 970 MM |
| Max.forward speed: | 24 KM/H |
| Battery: | T-875 Trojan battery |
| Company Info. |
| Dongguan Excar Electric Vehicle Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
6 Seats ADC 48V 3.7KW Club Car Golf Cart With American Trojan
Battery
Feature of Product:
1,Italy Graziano Transaxle
2,Unique E-KEY
3,Electromagnetic Brake Makes Driving More Safty
4,Special Design LED Headlight
5,Advanced Disc Brake Technology
6,Three-point Seat Belts
7,Rear View Mirror And Driver/Passenger Side Mirrors
8,Automotive Safty Glass Windshield
9,Deep Cup Holders,
10,Comfortable,Contoured Seats
11,100% waterproof accelerator
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 6 | 6 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 360kgs | 360kgs |
| Min. turning radius | 3.9m | 3.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
* 1) based on the test conditions: 20km/h speed, flat and straight
concrete road, wind speed less than 5m/s, temperature of 25 Celsius
degree;
2) Range will vary depending on temperature, grade, payload and
driving style.
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 3454x1219x1828mm |
| Ground clearance | 114mm |
| Wheelbase | 2490mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Body and Frame
| Item | Description |
| Frame & Chassis | Aluminum alloy beam, bended |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA), one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Electric System
| Item | Description |
| Lights | 48V, LED headlight (includes turning light and position light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) | Including kilometer indicator, speed indicator, overload indicator,
parking brake indicator, clock |
Steering & suspersion
| Item | Description |
| Steering System | Self-adjusting rack and pinion steering system, |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | Aluminum wheel & USA Carlisle 18*8.5-8 6 layers |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1S4+2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 3175*1219*1828 | 3175*1219*1250 | 2 units | 4units | 6units | 12units | |

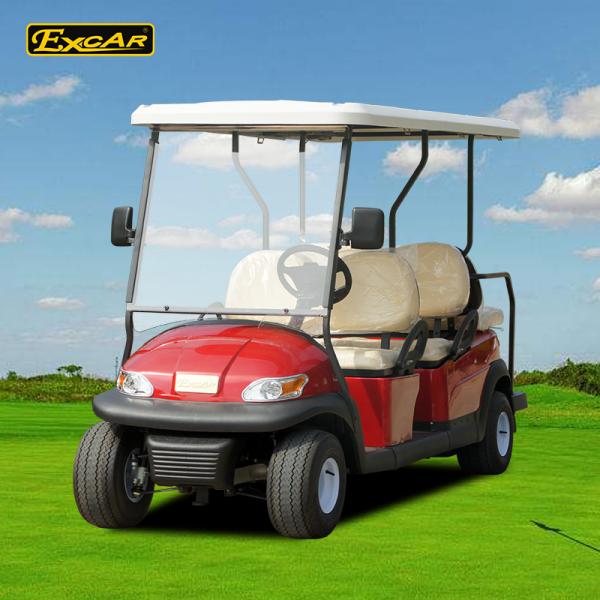

Product Image
