Low Heat Small Electric Air Vacuum Pump , Liquid Diaphragm Pump DC Brush Motor

long life span electric mini diaphragm dc brush small massage pump

dc brush massage pump's details show

Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium.

dc brush massage pump's demension

Unlabeled tolerance is ± 0.1mm.

Pump Size:102.4*70*40mm

Pump Weight:300g;

Outlet:OD 6.5mm, silicone hose suggestion:ID 5mm

Materials:pump body: PC/PPS, diaphragm: EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.

1. High temperature performance, good consistency

2. Oil resistance and easy installation

3. DC brush motor

4. Long life span, low heat.

5. Heavy duty work for 24 hours and Continuous operation

6. The key parts are imported

7. Can work for long hours

Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

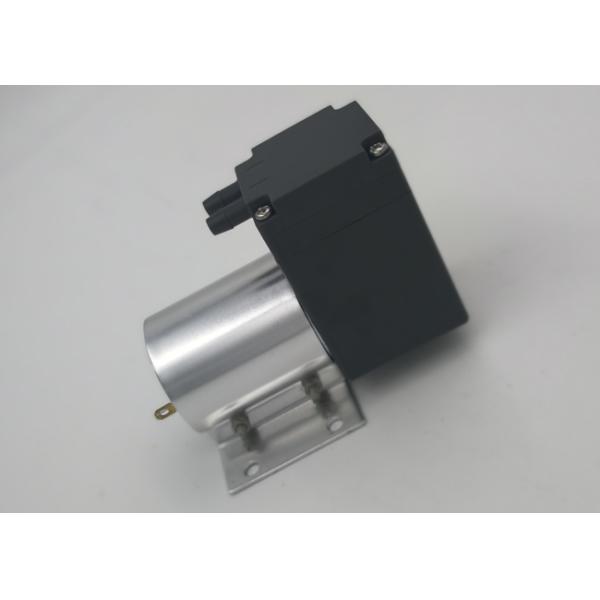

dc brush massage pump's photo

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 2 L/min and 18L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

dc brush massage pump's production process

Our company has a complete production system.
We has our own mold department, injection molding department, production and

assembly department, sample room, R & D department, sales department.
We can independently design and produce pump.

In addition, we can assemble productions in strict accordance with the ISO9001 system.

dc brush massage pump's application

industrial pressure and vacuum applications

Portable analytical instruments

Medical diagnostic equipment

Air quality sampling monitors

Respiration monitors

Gas or odor leak detectors

dc brush massage pump's packing and shipping

Packaging:

CTN/PCS: 60PCS

G.W. : 19.5 KG

DIMENSION : 47 * 31 * 25 CM

1. We can ship by DHL, UPS, FedEx ,TNT, EMS, HONGKONG post etc.DHL, UPS, FedEx, TNT takes about 3-5 workdays for delivery.

2. And we will help choose the most cost-effective way for you according to your requirement.

3. The tracking number will be available the next day after shipment,then you can check your goods is on the way.

Founded in 1999,yanhua Micro pump Technology company is the leading and biggest manufacturer specializing in various DC micro pump and fluid comprehensive solution in China.

Our sale engineers team have more than 15years overseas experience in customer service,especially like OEM and ODM, and successful service for several fortunes 1000companies, can provide immediate and rapid solution and satisfactory answer to the clients.

Over 15 years’ experience in overseas customer service without complaint.

Engineers’ on-site service and quick solutions.Professional sales engineer to provide free technical support and solve problems with 24hours.

We have obtained the ISO9001 certification, and our products comply with the EU RoHS Directive and REACH regulations, FDA certification. Some of our products have WARS, NSF approval.

Today, Yanhua have 12 production lines and 300 skilled workers, our monthly producton capacity is 500,000pcs brushless and brush dc pumps,100,000 piston pumps and 10,000 gear pump and water pump.

RFQ

Q1: Are you a factory or trading company?

A1: We are a factory.

Q2: Can I get a sample? How long it will take to get a sample?

A2: Yes, you can order sample to test and check the quality.

For our usual sample, the sample lead time is about 3-5days.

If special sample, it will take a longer time for design and order materials to do pumps.

All our samples are done by our engineers.

They can according to your needs customize pump for you.

Q3: How can I make the payment?

A3: Payment can be made through T/T, paypal or Western Union.

Q4: Is it OK to print our logo on Pump?

A4: Yes, we could do OEM and print your logo on Pump product.

Q5: What about the package ?

A5: Standard export carton.

Q6.: The use of products have?

A6:The pump can pump various strong acid, alkali and corrosive air etc.

Q7: How product quality and service?

A7: Our pump have CE certificate, quality assured and provide various personalized needs.

Q8: How to proceed an order for Mini Air Pump?

A8: (1) Checking /confirming all details information( include requirement of pump product, payment terms, price,quantity, leading time or others);

(2) Checking/confirming the sample's quality or satisfied result;

(3) Final checking/confirming the price/quantity/leading time/payment terms for first trial order;

(4) We factory arrange the production after receiving the real pump order.
