| Categories | LED Street Light Module |
|---|---|
| Brand Name: | SunshineOpto |
| Model Number: | SUN-LD2X6-5050-143*48 |
| Certification: | SGS/ROHS |
| Place of Origin: | Shenzhen,China |
| MOQ: | 20 |
| Price: | need to negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram,PayPal |
| Supply Ability: | 5000 sets per Month |
| Delivery Time: | 5-8 working days |
| Packaging Details: | 20 sets/Carton . |
| Product Kits: | Led lens with silicon gasket ,pcb welding 5050 leds |
| Lens Size: | 173*71.4mm |
| Lens Angle: | 143*48 degree |
| PCB Size: | 145*47*1.5 mm |
| PCB Circuit: | 4 series 3 parallel |
| Match Leds: | 5050 led |
| Company Info. |
| Sunshine Opto-electronics Enterprise Co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
12V 5050 Led Street Light Module 15W
1,The module uses high-quality 5050 leds and we provide 2 years warranty .
2,The whole module can support 15-30watt ,The luminous efficiency can reach 130-150lm/watt ,
3,The size of this module is 173*71.4 mm ,It's more common and can be used to replace old products
Quick Detail :
| Model No.: | SUN-LD2X6-5050-143*48 |
| Angle: | 143*48 degree , |
| Lens Size: | 173*71.4 mm |
| PCB Size: | 145*47*1.5 mm |
| Lens Material: | Optical grade PC |
| Circuit: | 4 series 3 parallel |
| LED: | 12 pcs 5050 SMD LED |
Technical Parameters :
| Model No. | SUN-LD2X6-5050 | |
| Power(W) | 20 | |
| Voltage(Vf/V) | 8.31 | |
| Current(If/mA) | 2400 | |
| Color Temp Tc(K) | 5500 | |
| Efficiency (lm/W) | Without lens | 176.19 |
| with lens | 160.16 | |
| Luminous Flux (φv/lm) | without lens | 3514 |
| with lens | 3198 | |
| Color Index(Ra) | >70 | |
| Lens beam angle | 60*60,129*55,135*55,143*70, 145*83,157*57,143*48 degree | |
| Wick | 12 pcs 5050 leds | |
| Protection level | IP66 | |
| Working temperature(℃) | -80 | |
| storage temperature(℃) | -95 | |
| Server Life(H) | 50000 | |

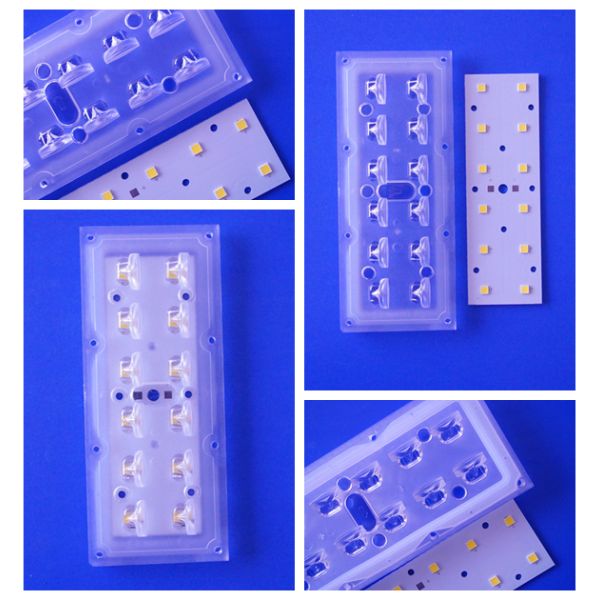

Product Picture :
We provide led street light parts, you need to assemble it yourself, if you need us to provide assembly, we need to charge the assembly fee .
Light distribution :
Application :
Led Street light ,high way lamp ,etc .
FAQ
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
A: Low MOQ, 1pc for sample checking is available
|
