| Categories | DMR Two Way Radio |
|---|---|
| Brand Name: | SUNTOR |
| Model Number: | ST9500DBH |
| Certification: | FCC, CE, RoHS |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1 set |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 set/ month |
| Delivery Time: | 7-15 days |
| Packaging Details: | Plastic Box |
| Price: | Negotiation |
| Modulation: | TDD-COFDM |
| RF Power: | 3-7watts adjustable |
| Range: | LOS and NLOS |
| Video Res: | 1080P*1920 |
| Video Input: | High Definition Multimedia Interface or SDI and CVBS |
| Encryption: | AES256 |
| Weight: | 2.5kg |
| Power: | DC12V |
| Company Info. |
| Shenzhen Suntor Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
broadcast quality video wireless transmitting system for or fireman
Introduction

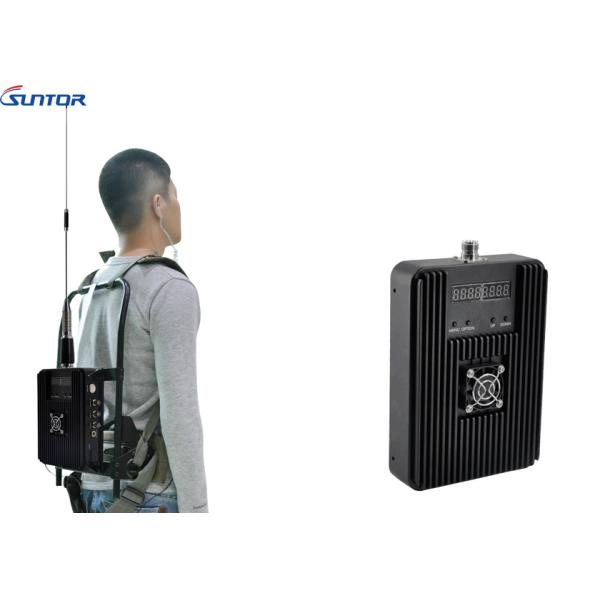

ST9500DBH is a micro new customized HD COFDM video
transmitter,specially designed for UAV,UGV and body-worn use .It is
a rugged,miniature,high definition digital video transmitter ideal
for long range video and data control purpose .SG-HD01VT
transmitter is in full hd resolution with High Definition
Multimedia Interface input for High Definition Multimedia Interface
camcorder connection,and data serial port(RS485/RS232/TTL) for
one-way data control.
The increased compression and efficiency of the MPEG-4 H.264
encoder offers users additional range with the added benefit of
small size,low latency and low power consumption.In
particular,COFDM provides robust,secure and reliable video
transmission over long ranges.And its great security of the
transmission can be ensured using the optional internal AES user
defined encryption from end to end.
Features
1. Low delay time only 200ms.
2. High definite resolution: 1080I(1920*1080)compatible with
720*576.
3. High quality digital video processing&video encoding and
decoding&DVD picture.
4. Excellent anti-interference performance under complex
electromagnetic condition.
5. One-way picture,one/two way voice,reverse control cloud deck
function are available.
6. Transmit distance up to 1km NLOS and more than 15km LOS.
7. Space diversity reception capability.
8. Small size and light weight easy for carry.
9. Can stably transmitter video&audio signal under the
condition of high-speed mobile and multipath interference.
| Transmission Characteristics | |
| Modulation Type | QPSK(4QAM), 16QAM, 64QAM |
| Working Frequency | 300-900MHz ( adjustable 0.5M per step) |
| Transmission Power | 30 dBm |
| RF Bandwidth | 1.25/2.5/6/7/8MHz(optional) |
| FEC(forward error correction) | 1/2, 2/3, 3/4, 7/8 |
| Guard Interval | 1/4,1/8,1/16,1/32 |
| Latency | 300 ms |
| Transmission Range | 1km (NLOS) ~ 5 km (LOS) |
| Data Characteristics | |
| Video Input | High Definition Multimedia Interface |
| Video Compression | H.264/MPEG-2 |
| RF Interface | SMA F head |
| Parameter Control Method | Using digital LED control panel |
| Encryption Method | 128 - bit AES (can set user’s password) |
| Electrical Characteristics | |
| Working Voltage | DC 12V |
| Working Current | 1.5 A |
| Power Consumption | ≤20W |
| Battery Life | 3-4 hours |
| Physical Characteristics | |
| Working Environment | -10~70℃ |
| Dimensions | 86×65×26mm (without battery) |
| 120×65×26mm (with battery) | |
| Weight | 2.5KG |
|
