| Categories | Power for Fire fighting pump |
|---|---|
| Brand Name: | Aoling |
| Model Number: | 6BD-Z |
| Certification: | CE |
| Place of Origin: | Weifang |
| MOQ: | 1 |
| Price: | Negotiable by model |
| Payment Terms: | T/T |
| Supply Ability: | 500Units/month |
| Delivery Time: | In 7 days after receive the deposit. |
| Packaging Details: | In export plywood |
| Speed: | 3000rpm |
| Power: | 120KW |
| Cool type: | water cooled |
| Color: | Red |
| Displacement: | 5.785 |
| Fuel consumption: | 228g/kw.h |
| Bore*Stroke: | 102*118 |
| Cylinder number: | 6 |
| Compression ratio: | 17.5:1 |
| Weight: | 570Kg |
| speed regulation method: | mechanical |
| Oil capacity: | 12L |
| Cooling capacity: | 12L |
| Application of altitude: | 1000m-3500m |
Why choose us?
a,Only select high standard spare parts, such as fuel pump, cylinder head, cylinder liner, piston, engine block,water pump, oil pump, air/fuel/oil filter, radiator,starter,charger alternator.
b, Quality-Control.
Raw Material Purchase Inspection.
Engine assemble inspection.
Engine testing inspection, avoid oil-water-air-leak problem . Meet 100% power loading.
Before pack-Inspection.
c. Spare parts available.
d, Engine manual instruction and parts catalog together with engine.
e,All-life service after sale.

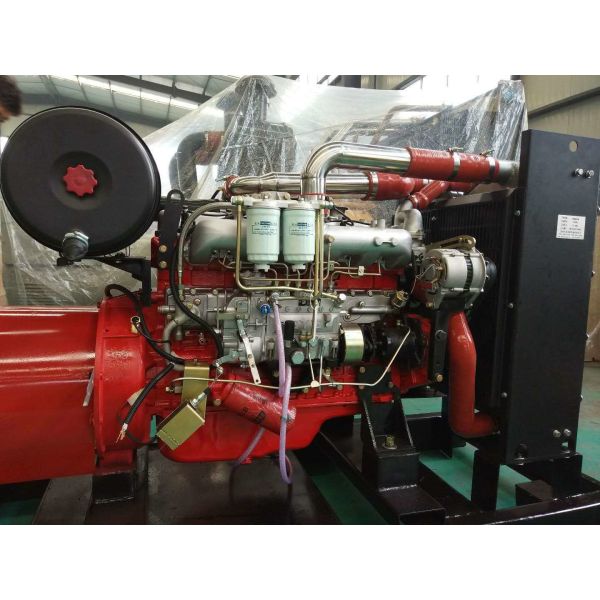

6BD-Z
| Project | Technical parameters |
| Type | Vertical, vertical, water cooled, four stroke, natural breathing |
| fuel injection system | Straight line mechanical pump |
| Air inlet mode | Pressure boost |
| The number of cylinders | 6 |
| Bore stroke (mm) | 102*118 |
| Total displacement(L) | 5.785 |
| ignition order | 1-5-3-6-2-4 |
| Crankshaft rotation direction | Counter clockwise (for the flywheel side) |
| Compression ratio | 17.5:1 |
| Rated speed (r/min) | 3000 |
| 1 hour power(kW/ r/min) | 125 |
| Idle speed (r/min) | 750±50 |
Lowest fuel consumption rate (g/kW.h) | 221 |
| Fuel | Light diesel oil GB252 |
| lubricating system | Pressure splash lubrication |
| Net quality (kg) | 575 |
| Dimensions(mm) | 1068*652*1081 |
| emission level | European II or European (electronic control ECU) |
Engine in Stock
Export plywood package
|
