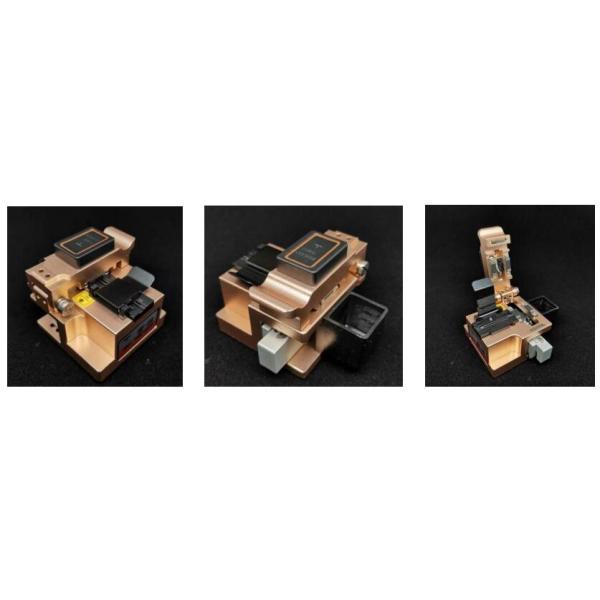

HS - 08 Fiber Optical Cleaver 250 To 900 Micron Fiber with life span 48000 fibers
This optical fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers.
It is a simple operation for the user to remove or install the
single fiber adapter and alternate between mass and single fiber
cleaving.
• Provides approximately 48000times optional.
• Compact body& light weight
• High Precision Cleaves
• 250um Coated or 900um Buffer fiber
• Singlemode
Features:
• Model No: FH-08
• Applications: Single fibers: 250um to 900um coating, 125um
cladding
• Fiber Handling System: AD-30A Adapter Plate
• Cleave Length: (900um fiber) 10mm to 20mm, (250um fiber) 6mm to
20mm
• Dimensions (W x D x H): 63mm x 56mm x 56mm
• Weight: 280g (0.4 lbs)
• Blade lifetime: 48,000 fiber cleaves (4000 12-fiber cleaves)
• Cleave angle capability: typically < 0.5°
Package Includes:
| Dimensions | 63W x 56D x 56H (mm) |
| Weight | 280g |
| Coating Diameter | 0.25mm - 0.9mm (Single) |
| Cladding Diameter | 0.125mm |
| Cleave Length | 5mm - 20mm (Single) |
| Typical Cleave Angle | 0.5 Degrees |
| Typical Blade Life | 48000 times Fiber Cleaves |
| Number of Steps for Cleave | 2 |
| Blade Adjustments | Rotational & Height |
| Automatic Scrap Collection | Optional |

|
