| Categories | RJ45 Modular Jack |
|---|---|
| Brand Name: | Shareway |
| Model Number: | JXR0-0001NL/JXR0-0011NL |
| Certification: | CE UL RoHS ISO9001:2008 |
| Place of Origin: | Guangdong China |
| MOQ: | 100/500/1000 |
| Price: | Supportive |
| Payment Terms: | TT,Paypal |
| Supply Ability: | 3000K.PCS/Month |
| Delivery Time: | Stock or 3 weeks |
| Packaging Details: | Tray in Carton |
| Product name: | Cat5 RJ45 Connector 8P8C RJ45 Modular Jack JXR0-0001NL/JXR0-0011NL |
| Tab: | Tab-Down |
| Pin: | 8 pins |
| Type: | Integrated Magnetics Connector |
| Usage: | PCB |
| OCL: | 350μH |
| Company Info. |
| SHAREWAY TECHNOLOGY CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |
Cat5 RJ45 Connector 8P8C RJ45 Modular Jack JXR0-0001NL/JXR0-0011NL
Description:
100 Base-TX RJ45 1X1 Tab-Down 8 pin Integrated Magnetics
Connector, designed for industrial rated applications and is
suitable for reflow solder mounting.
| Part Number | Mating Force (MAX) | Unmating Force (MAX) | Durability | Plug to Jack Retention (MIN) |
| JXR0 - Series | 5 Ibs./2.268 kgs. | 5 Ibs./2.268 kgs. | 750 Insertions | 20 Ibs./9.072 kgs. |
Cat5 RJ45 Connector 8P8C RJ45 Modular Jack JXR0-0001NL/JXR0-0011NL

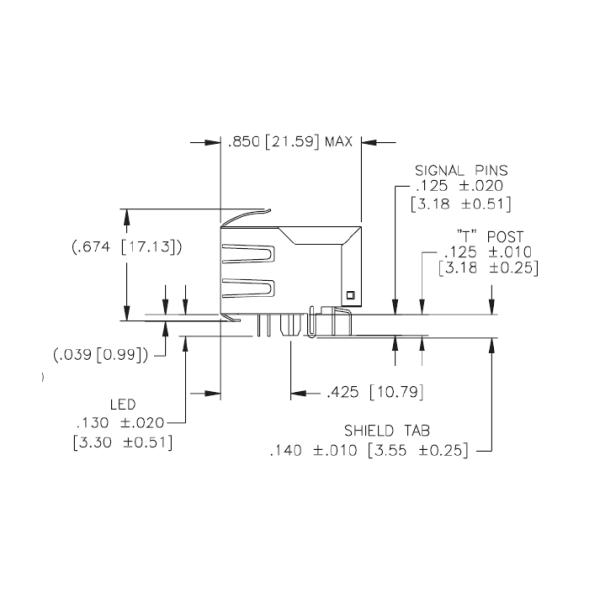

Shape and Dimensions:
|
