| Categories | Fuel Tank Trailers |
|---|---|
| Brand Name: | GET |
| Model Number: | Water Sprayer Truck |
| Certification: | ISO 9001/TS16949 |
| Place of Origin: | China |
| MOQ: | 2 units |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 units per month |
| Delivery Time: | 45 working days |
| Packaging Details: | packed in nude |
| Material: | Carbon Steel Q345/Q235 |
| Tanker Volume: | 6,600L |
| Axle No.: | 2 |
| Transport Liqulid: | Water |
| Color: | Customized |
| Tanker Shape: | Square-Round |
| Company Info. |
| GET INDUSTRY & VEHICLES CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
4×2 Water Sprayer tank truck with volume of 6600L for city Road cleaning and Dustfall
| 4×2 Water Sprayer tank truck with volume of 6600L for city Road cleaning and Dustfall | ||
| 4×2 Water Sprayer tank truck, HOWO76 cabin,(air-condition, one bed); with WD615.87Sinotruk engine,266HP, with HW13710 transmission, with ZF steering(RHD/LHD), with12R22.5tires, etc. | ||
| SPECIFICATION | HOWOZZ1257M4647W | |
| Dimension(L×W ×H)(unloaded) | 8600×2496×3100 | |
| Tank capacity (m3) | 6.6 | |
| Approaching angle/Departure angle(°) | 19/15 | |
| Overhang(front/rear) (mm) | 1500/2277 | |
| Wheel base (mm) | 4600 | |
| Max speed(km/h) | 90 | |
| Curb weight(kg) | 9000 | |
| Loading Weight(kg) | 8000 | |
| Engine (Steyr technology, made in China) | Model | WD615.62,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
| Fuel type | Diesel | |
| Power, max(kw/rpm) | 196/2200(266HP) | |
| Emission | EURO 2 | |
| Fuel tanker capacity | 300 | |
| Transmission | Model | HW13710,10 forward&2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Steering system | Model | ZF8098 (LHD) |
| Front axle | Steering with double T-cross section beam HF7 | |
| Rear axle | Pressed axle housing, central double reduction with differential locks between axles and wheels | |
| Tyre | 12R22.5 | |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
| Cab | HOWO76 Standard cab, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |
| Steel Structure: Material:High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and 235 MPa in other fabricated parts. | ||
| Water Sprayer | Water Pump | |
| Sprayer 2 sets at the front | ||

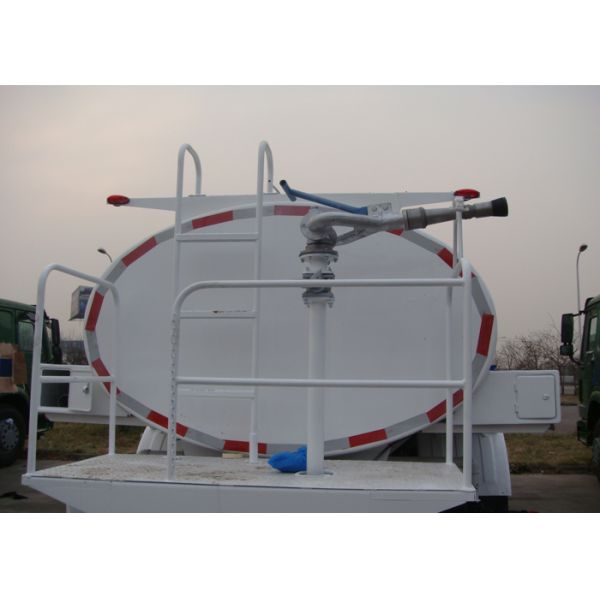

| water monitor at the tail of the truck | ||


|
