| Categories | Creative LED Display |
|---|---|
| Brand Name: | NIYAKR |
| Model Number: | P5 |
| Certification: | CE,ROHS,EMC,UL,ISO |
| Place of Origin: | Shenzhen,China |
| MOQ: | 1 UNIT |
| Price: | USD |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Delivery Time: | 20000 Units Per Month |
| Packaging Details: | Wooden Case |
| Product Name: | Light Pole LED Screen |
| Pixel Pitch: | 5mm |
| LED Model: | SMD2727 |
| Drive IC: | MBI |
| Cabinet Material: | Aluminum |
| Life time: | ≥100000 hours |
Outdoor Street Advertising Display Player 5mm Pixel Pitch SMD2727
Parameters :
| The specifications | Pole LED Screen |
| Items | Parameter |
| Product Model | P5 Full Color Led Module |
| Module size | 160 x 160mm |
| resolution ratio | 32 x 32dots |
| Pixel pitch | 5.0mm |
| Pixel density | 7500 dots/mm |
| Pixel configuration | RGB 3 in 1 |
| Driving method | Constant Current Driving,1/8 scan |
Working voltage/ Module maximum power consumption | DC5V,22W |
| Led Lamps | SMD2727 |
| Red Wavelength | 620nm |
| Green Wavelength | 520nm |
| Blue Wavelength | 470nm |
| The specifications of cabinets | |
| Frame rate | 60Hz/Second |
| Refresh rate | ≥1000HZ |
| Display colour | 16384 |
| Grey scale | 16384 |
| Brightness in White Color (cd/m2) | 5000-6300 CD/mm |
| Brightness adjustment | 5000-6300CD,automatic or manual 1%-100% |
| Color temperture | 3000-13000 |
| Contrast ratio | ≥4000:1 |
| Life time | ≥100000 hours |
| Operating temperature | sub zero 10℃~55℃ |
| Stock temperature | sub zero 10℃~65℃ |
| Operating humidity | 10%-90%RH |
| Average power consumption | ≤400W/mm |
| Viewing Angle | 120(Horizontal),120(Vertical) |
| Best Viewing Distance | 5m - 40m |
| Input Voltage | 220V/110V, 50Hz/60Hz |
| Output Voltage | 5V,40A |
| Protection Level | IP67 |
| Operating system | XP, WIN7, WIN8,VISTA |
| Control Mode | Synchronization |
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/ RA/RMJ/ASF/Composite,etc |
Product Features :
1. Fational design, hight brightness for outdoor usage, timing
backlight
2. Intelligent light sensitive and temperature control
3. Sunshine-proof, anti-dust, waterproof, easy maintenance
4. Multiple timing, hardware decoding, embedded system
5. Adopting SMD hight brightness lights, wide view angle, 5000:1
high contrast, soft image;

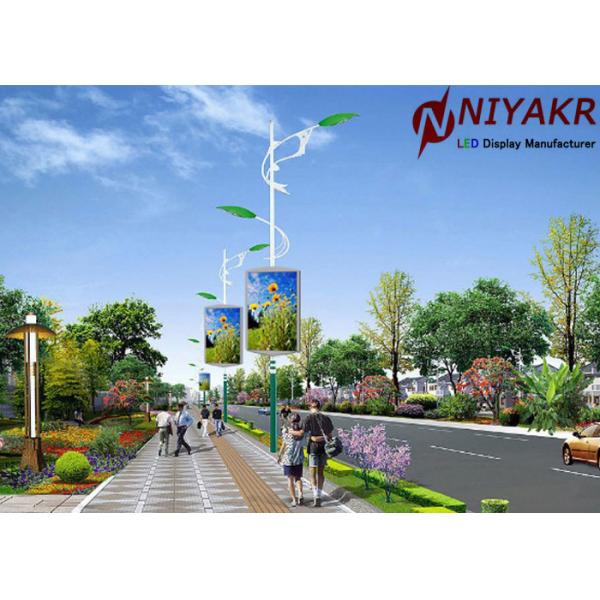

Widely located in street lamp posts.


|
|
