| Categories | Marine Ship Deck Crane |
|---|---|
| Brand Name: | HAOYO |
| Model Number: | HAOYO |
| Certification: | BV,CCS,NK,DNV,ABS,LR |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 300 UNITS |
| Delivery Time: | 90days |
| Packaging Details: | NUDE |
| Price: | 30000USD |
| Use Situation: | New |
| Operstion formal: | Ground operation |
| Shipment Parameters: | According to The Export Standards |
| Specification: | According to The Export Standards |
| Trademark: | HAOYO |
| Origin: | Shanghai |
| Sling Type: | Wire Rope |
| Type of crane: | fixed boom marine crane |
| Application: | Luxury Yacht, Oceanographic, Work boat, Oilfield, Coast Guard or Military industries |
| Features: | efficient material handling;Low price and maintenance cost |
| Company Info. |
| Shanghai HAOYO marine machinery |
| View Contact Details |
| Product List |

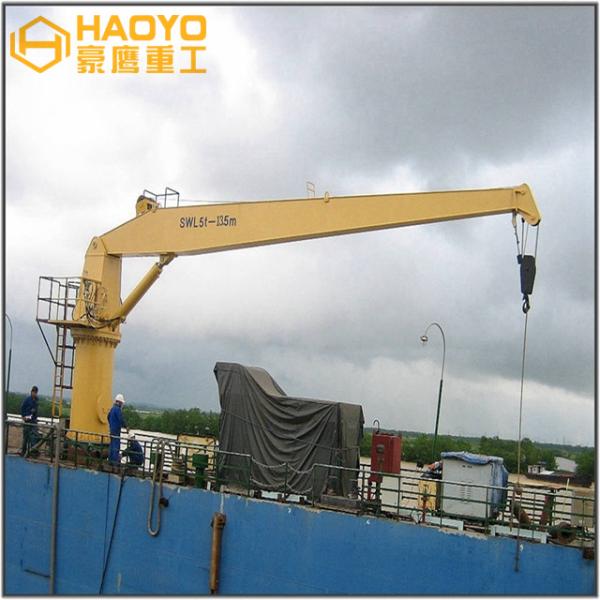

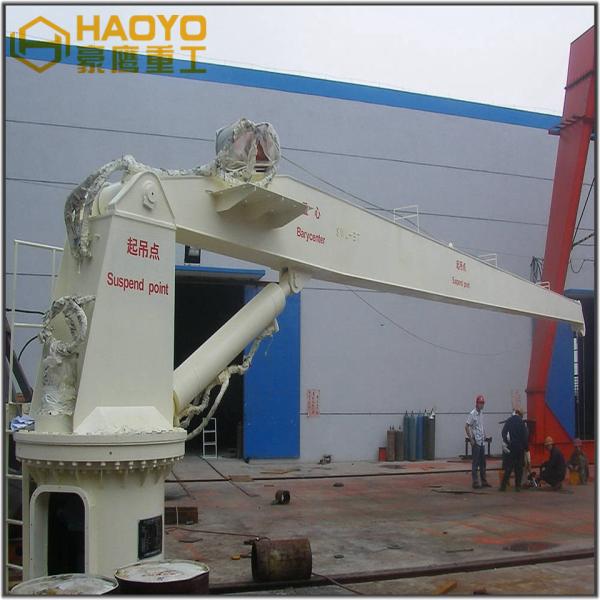

Fixed Electric Hydraulic Pedestal Deck Crane
Stiff bow free booms with the dexterity for accurate, safe, and efficient material
handling. Stiff boom cranes are typically used in dock, on fixed installations and
in harbor conditions.HAOYO stiff boom cranes are suitable equipped on the deck
for bulk cargo ships or offshore with enough free space.
Drawing of Fixed Electric Hydraulic Pedestal Deck Crane
Technical Parameters of Fixed Electric Hydraulic Pedestal Deck Crane
| Crane Type | Outreach(m) | Lifting capacity(kg) | Lifting moment(kNm) | Total Moment (kNm) | Pedestal Outer Diameter (mm) | Dead Weight (kg) |
| HC200 | 6-16 | 3.5-0.9 | 144-210 | 270 | 885 | 2.7-3.2 |
| HC400 | 6-16 | 5.6-1.7 | 288-336 | 424 | 885 | 3.2-3.7 |
| HC600 | 6-20 | 10-2.3 | 460-600 | 737 | 1095 | 4.4-5.5 |
| HC 900 | 6-20 | 14.2-3.2 | 640-852 | 1039 | 1325 | 5.9-7.0 |
| HC1200 | 6-24 | 19-3.5 | 840-1140 | 1409 | 1490 | 7.8-10.2 |
| HC1500 | 7-24 | 20.3-4.6 | 1104-1421 | 1765 | 1490 | 9.2-11.3 |
| HC1800 | 7-24 | 25.6-5.4 | 1296-1792 | 2202 | 1770 | 11.4-14.1 |
| HC3000 | 21 | 12.5 | 2625 | 3750 | 1775 | 24.8 |
| HCK220 | 27,5 | 20,0 | 2200 | 4000 | 1800 | 15.0 |
| HCK300 | 30.0 | 25.0 | 3000 | 5000 | 2065 | 17.5 |
| HCK400 | 32.0 | 30.0 | 4000 | 6300 | 2050 | 20.0 |
| HCK500 | 35.0 | 35.0 | 5000 | 8000 | 2240 | 25.0 |
| HCK800 | 40.0 | 50.0 | 8000 | 11500 | 2271 | 45.0 |
More Products
Processing Flow
Certifications
Packaging&Delivery
Shipping details
♦ check all the items and packaged well before loading.
♦ You can check loading or send picture to you.
♦ After shipping make documents for you,like B/L,packing list,voice
according
to your requirements.
