| Categories | DMR Two Way Radio |
|---|---|
| Brand Name: | SUNTOR |
| Model Number: | ST9500MH |
| Certification: | FCC, CE, RoHS |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1 set |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 set/ month |
| Delivery Time: | 7-15 days |
| Packaging Details: | Plastic Box |
| Price: | Negotiation |
| Frequency: | 300-860Mhz |
| Tx Weight: | 130g |
| COFDM: | Modulation |
| Encryption: | AES256 |
| Video Res: | full HD 1080P |
| Video Input: | High Definition Multimedia Interface/SDI/CVBS |
| Power Input: | DC12V |
| Rx Power: | Built in battery |
| Company Info. |
| Shenzhen Suntor Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

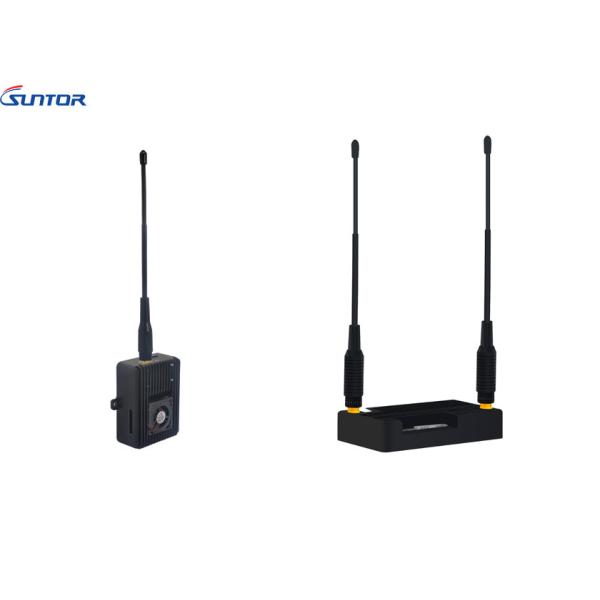

Pliceman or solider application Spy camera video wirelessly sender and receiver
The ST9500MH unit is ideal for body-worn or other mobile applications where it is necessary to connect to a High Definition Multimedia Interface or CVBS Camera and be able to transfer HD or SD video. The unit can be supplied with an external rechargeable battery which provides upto 3-4hrs of operation.
Features
*COFDM modulation (Coded Orthogonal Frequency Division
Multiplexing)
*H.264 coding format
*With voice intercom function, special for application
*Matched 1channel receiver monitor fit for car or room installation
*Short latency
*Effectively achieve real-time, anti-multipath
*Support NLOS high speed moving transmission
*Small volume, lightweight, easy carry, portable and convenient,
aluminum outer-casing with good heat radiation
*AES265bits encryption ensures security
| Transmitter System Indicators | |
| Voltage | DC12V |
| Power supply | DC12V/2A |
| AV input | SDI/High Definition Multimedia Interface: support |
| HD1080P/1080I,720P,576,480; | |
| Data serial port | RS485RS232/TTL ,one-way communication(On request) |
| Frequency | 300-860MHz (optional) |
| Bandwidth | 2/4/6/8MHz(adjustable) |
| RF power | 1Watt(30dBm) |
| Encryption | AES -user defined password |
| Modulation | COFDM,2K,QPSK |
| Constellation | QPSK,16QAM,64QAM |
| Carrier | 2K,8K |
| Flatness | Full band≤2dB,8MHz≤0.5dB |
| FEC | 1/2,2/3,3/4,7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Video Compression | H.264/MPEG-4 |
| Resolution | 720P, 1080i/1080P@60fps |
| Parameter control method | User can Set up the related parameters by the control buttons |
| Built-in small LCD | display parameters,but will be shut up in 3 seconds after on. |
| Power switch | ON/OFF simple operation |
| CNR(weighting) | ≥58 dB |
| Sloping field SNR | ≥50 dB |
| RF Interface | SMA |
| Video formats | PAL/NTSC(self-adaption)/High Definition Multimedia Interface/SDI |
| Low latency | 200ms |
| Working temperature | -20℃～75℃ |
| Dimension | 75*55*35mm |
| Weight | 130g(without battery) |
Application
| Typical application | |
| UAV shooting | / secret application |
| system | hidden mission |
| UGV | Surveillance&public safety |
|
