CIP Sanitary Divert Seat Valve Medium Pressure Pneumatic Operated With IL-Top

CIP Sanitary Divert Seat Valve Medium Pressure Pneumatic Operated With IL-Top
Description
Two optional designs: One valve body (stop reversing)
Three valve bodies(divert seat valve)

Specification

Applications
The external supply CIP mixing proof valve is designed to meet when there are two different product flows through the same only valve,both guarantee to prevent fluid mixing and convenient for monitoring the working condition.

Operating principles
1.Remotely control through compressed air this valve is normally closed(NC).this valve is companied with two small pneumatic valves(Normally open). one for monitoring ,another one for CIP.
2.Body(upper stem inside of a changever valve) has two seals,which form a leakage chamber between each other,the leakage medium flow into the chamber,discharges through detector valve.supply air to actuator can make the valve clean in place.
3.Under cleaning,fluid flow directly to the plug,this valve is unsensitive to water hammer effect.

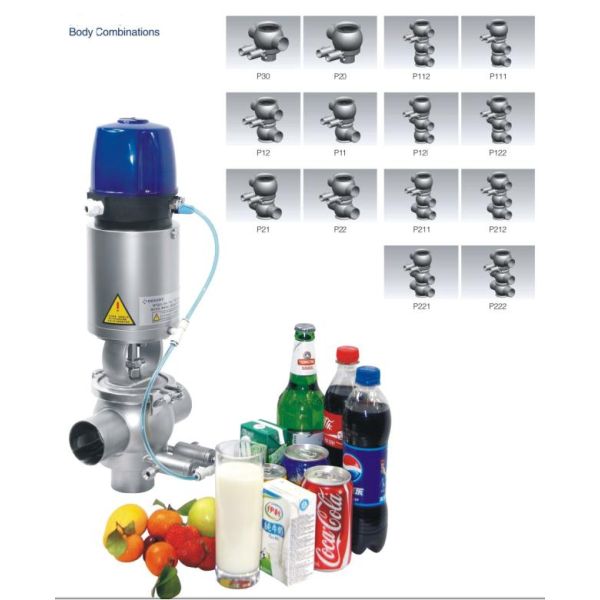

Body combinations


Product Drawings
